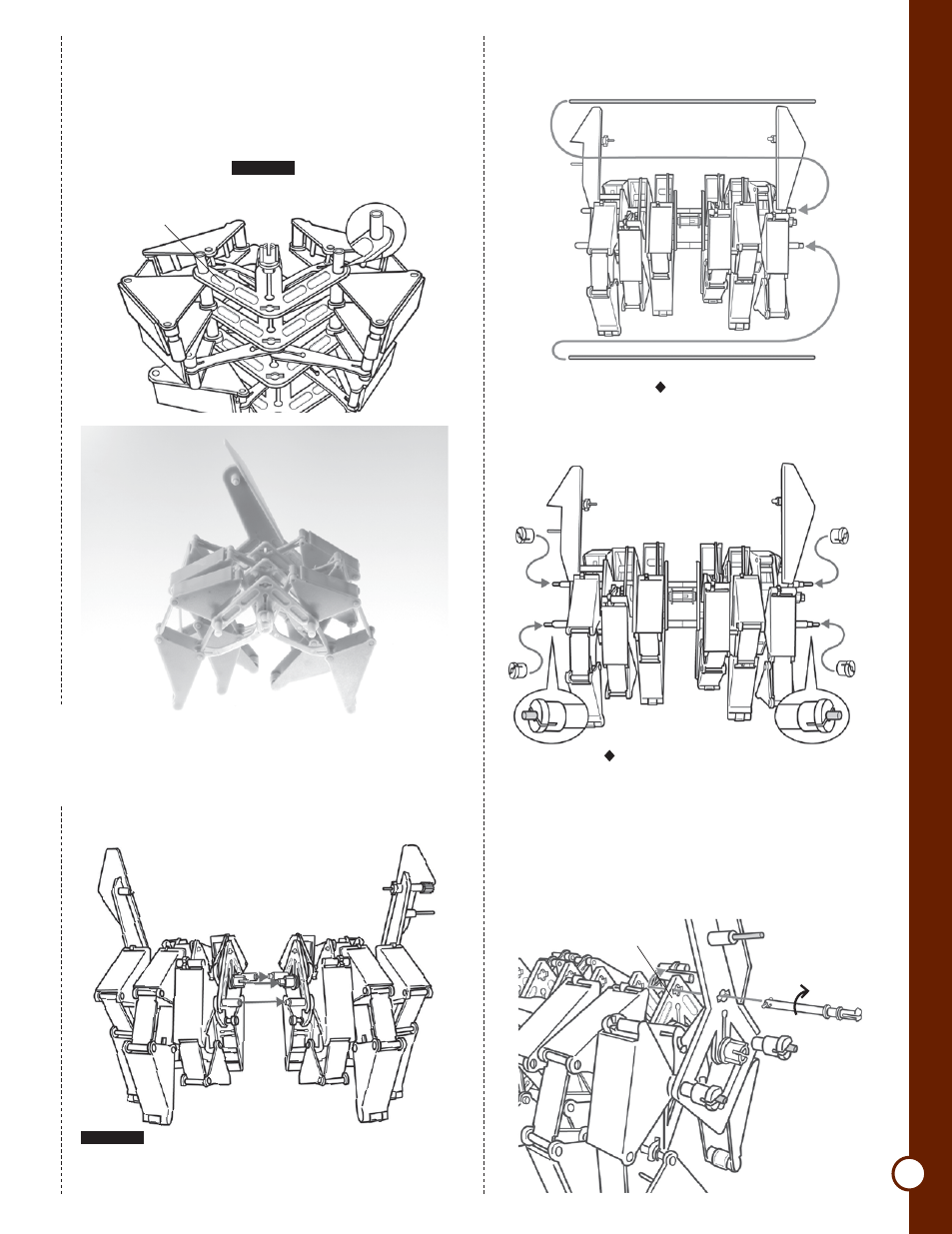

Assembling the Body

Follow the assembly procedure of the right frame

from Step 4 onward except with the left frame

oriented in the direction opposite to that of the right

frame.

Follow the same procedures for attaching the singleaction

rods for the right frame assembly.

Insert the two metal shafts into the frame and

pass them through the entire body so that they

stick out on either side.

Attach the fasteners to both ends of the

shafts.

Assemble the right frame and left frame units.

Line up the joint parts on the frames and

crankshafts.

Attach the cogwheel shaft to the right frame. Line

up the pin on the cogwheel shaft with the hole on the

frame and insert it into the hole up to the first

frame. Then, turn the cogwheel shaft 90° so that it

clicks into place.

Frame

Right frame unit

Right frame

Cogwheel shaft

Left frame unit

Frame

Make sure that the shafts are protruding

a little from left and right ends of the frame.

Make sure the shaft ends are protruding by

approximately 4 mm from the tip of fasteners.

After assembling them together, try to rotate the crankshaft. The frames are attached

together correctly if the six legs move at different timings. If the legs of the left and

right frames move in the same way, turn the crankshaft joint part by 180° and

connect them again.

Orient the frame with the tip with a hole side

up when attaching.

Six legs are

assembled with

the leftframe.

Shaft

Fastener

IMPORTANT

Turn the cogwheel

shaft 90° after

inserting it all the

way in.
