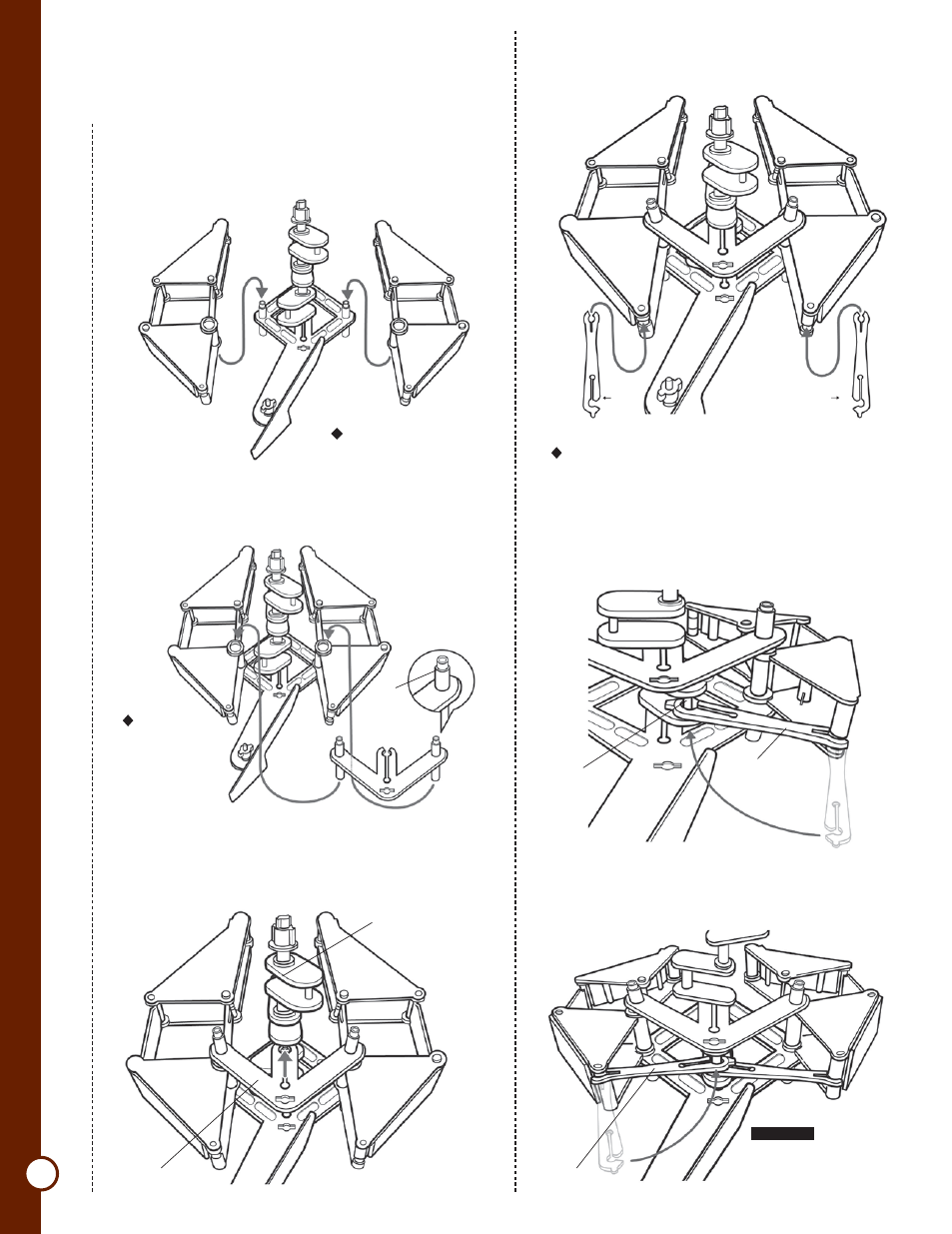

Start working on the right frame first. Attach two
legs to the protrusions on the right frame. Be sure to
check the orientation.
Attach the single-action rods (upper) to the left and
right upper triangles. Pay attention to the direction
of the notch.
Attach the frame to the holes on the upper triangles
in the direction as shown in the figure. Attach the single-action rod (upper) on the right to
the first crank pin of the crankshaft.
Attach the frame to the second crank axis of the
crankshaft so that it snaps into place.
Attach the single-action rod (upper) on the left above
the single-action rod attached on Step 5.
Right frame
Single-action rod (upper) Single-action rod (upper)
Single-action rod
(upper)
Single-action rod
(upper)
Crank pin
Crankshaft
Crankshaft
Snap together.
Snap
together.
Lower triangle Lower triangle
Upper triangle
Upper
triangle
Upper
triangle
Upper triangle
Indent
Lower Upper
Frame
Frame
Crankshaft
Assembling the Right Frame
and Legs
Insert the protrusions on the
right frame into the holes on the
upper triangles, as shown in the
figure.
The single-action rod on the left side
is to be attached above the single-
action rod on the right side. Be sure to
attach them correctly.
Push each of the single-action rods (upper) onto the connecting rods so
that they snap into place with the notch on the opposite end facing
inward.
Orient the frame with the
protrusion with the
indented tip side up when
attaching.
It may be
difficult to attach
the frame to the
upper triangle as
the crankshaft may
get in the way.
IMPORTANT
Notch Notch
