PARTS LIST
If you are a student, and any parts are missing or damaged, please see instructor or bookstore.
If you purchased this kit from a distributor, catalog, etc., please contact ELENCO
® (address/phone/e-mail is at
the back of this manual) for additional assistance, if needed. DO NOT contact your place of purchase as they
will not be able to help you.
RESISTORS
Qty. Symbol Description Color Code Part #
r 1 R16 300Ω 5% 1/4W orange-black-brown-gold 133000
r 1 R15 5.6kΩ 5% 1/4W green-blue-red-gold 145600
r 1 R5 39kΩ 5% 1/4W orange-white-orange-gold 153900
r 4 R1, 2, 8, 9 47kΩ 5% 1/4W yellow-violet-orange-gold 154700
r 1 R3 75kΩ 5% 1/4W violet-green-orange-gold 157500
r 1 R6 120kΩ 5% 1/4W brown-red-yellow-gold 161200
r 1 R14 270kΩ 5% 1/4W red-violet-yellow-gold 162700
r 2 R11, R12 300kΩ 5% 1/4W orange-black-yellow-gold 163000
r 1 R13 470kΩ 5% 1/4W yellow-violet-yellow-gold 164700
r 1 R10 510kΩ 5% 1/4W green-brown-yellow-gold 165100
r 1 R7 1.2MΩ 5% 1/4W brown-red-green-gold 171200
r 1 R4 1.6MΩ 5% 1/4W brown-blue-green-gold 171600
CAPACITORS
Qty. Symbol Value Description Part #
r 1 C8 470pF (471) Discap 224717
r 1 C9 .01µF (103) Discap 241031
r 2 C2, C3 10µF 25V Electrolytic (lytic) 271045
r 2 C4, C5 22µF 25V Electrolytic (lytic) 272245
r 2 C1, C6 100µF 16V Electrolytic (lytic) 281044
SEMICONDUCTORS
Qty. Symbol Value Description Part #
r 1 D1 1N4148 Diode 314148
r 1 Q1 MPSA18 Transistor NPN 320018
r 1 IC1 LM324 Integrated circuit 330324
r 1 IC2 HT2812G Integrated circuit 332812
r 1 IC3 78L05 Integrated circuit 338L05
r 1 S1 LHI-954 / KDS245 Infrared detector 350954
MISCELLANEOUS
Qty. Description Part #
r 1 PC board 517019
r 1 Speaker w/ wires 520813
r 1 Switch key 540105
r 1 SW1 - slide switch 541007
r 1 Battery snap 590098
r 1 Front cover 623104
r 1 Back cover 623202
r 1 Mounting bracket 626004
Qty. Description Part #
r 1 Battery cover 626005
r 2 Screw #4 x 1/4” 642430
r 2 Screw #4 x 5/8” 643450
r 2 Washer #4 (fiber) 645404
r 1 Socket IC 8-Pin 664008
r 1 Socket IC 14-Pin 664014
r 1 Solder lead-free 9LF99
Note: The text printed on
the
LHI-954 Infrared
Detector is the date code.
Resistor Battery Snap
Capacitor

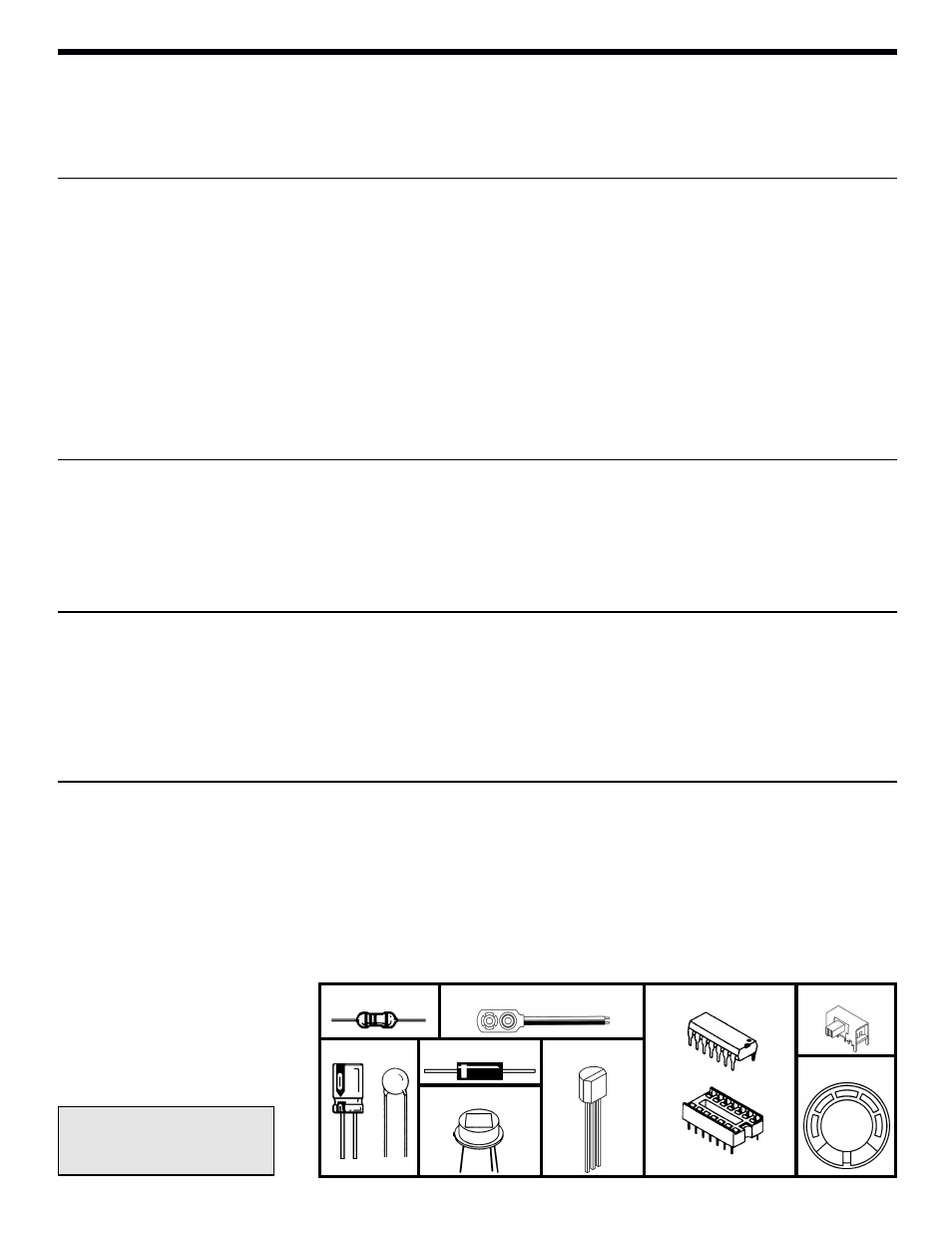

PARTS
IDENTIFICATION
Electrolytic
Transistor
Integrated Circuit
Discap
Diode
Infrared Detector
Integrated
Circuit
Socket
Speaker
Switch
