FINAL ASSEMBLY
-11-
r Step 1
Place the speaker into the front case as
shown in Figure 16. Use two #4 x 1/4”
screws and two #4 washers to secure it
into place.
r Step 2
Push the switch key onto the switch as
shown in Figure 17. Make sure that the
key-switch is sitting properly on the
switch.
r Step 3
Place the PC board into the front case
as shown in Figure 18. Attach the back
case to the front case with two #4 x 5/8”
screws. Note: There is a small groove
that the key switch fits into.

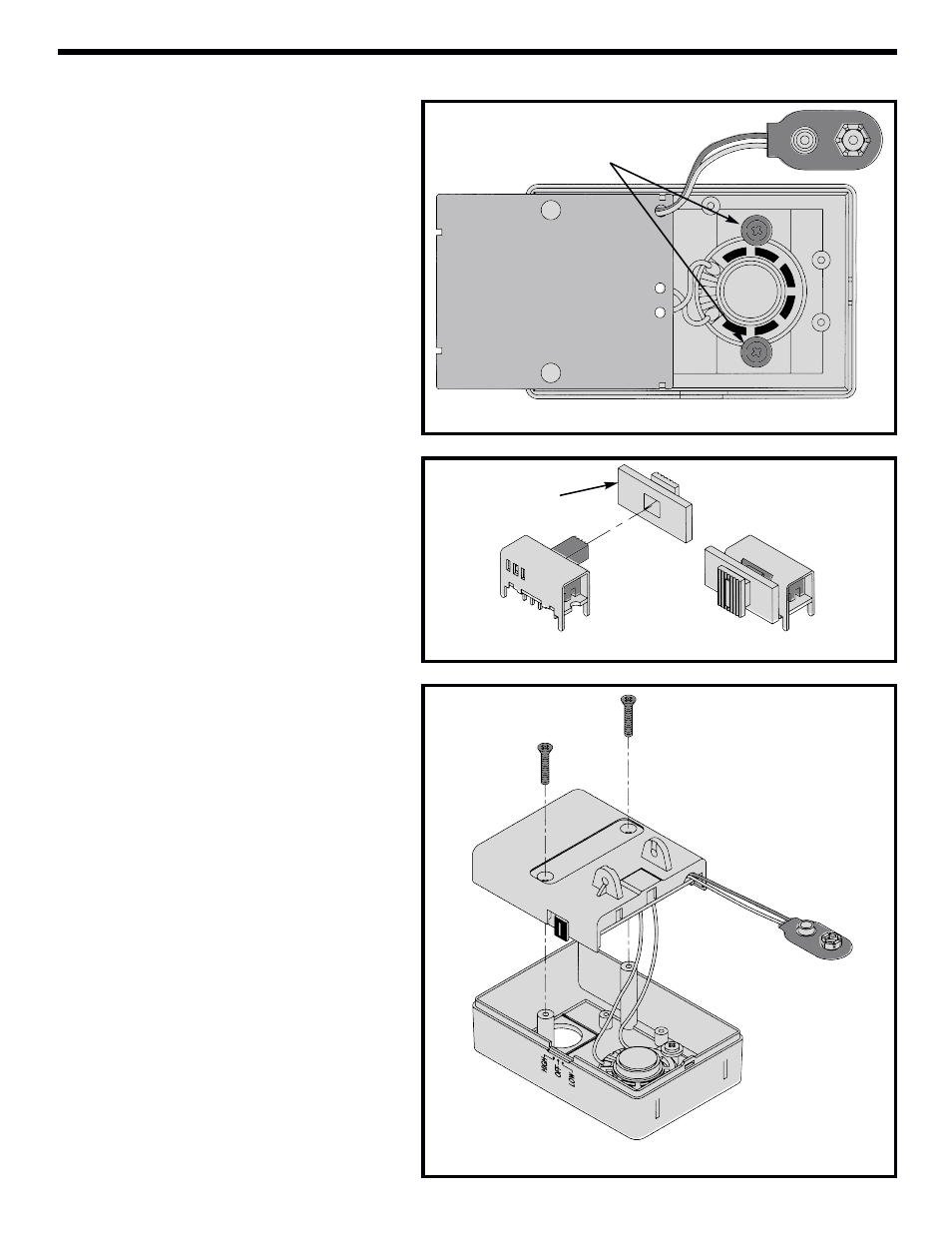

Figure 16
#4 x 1/4” Screws
#4 Washers
Figure 17
Switch Key
Figure 18
