Mechanical drawing – Delta Electronics Q48DR User Manual
Page 13
DS_Q48DR1R533_03152007
14

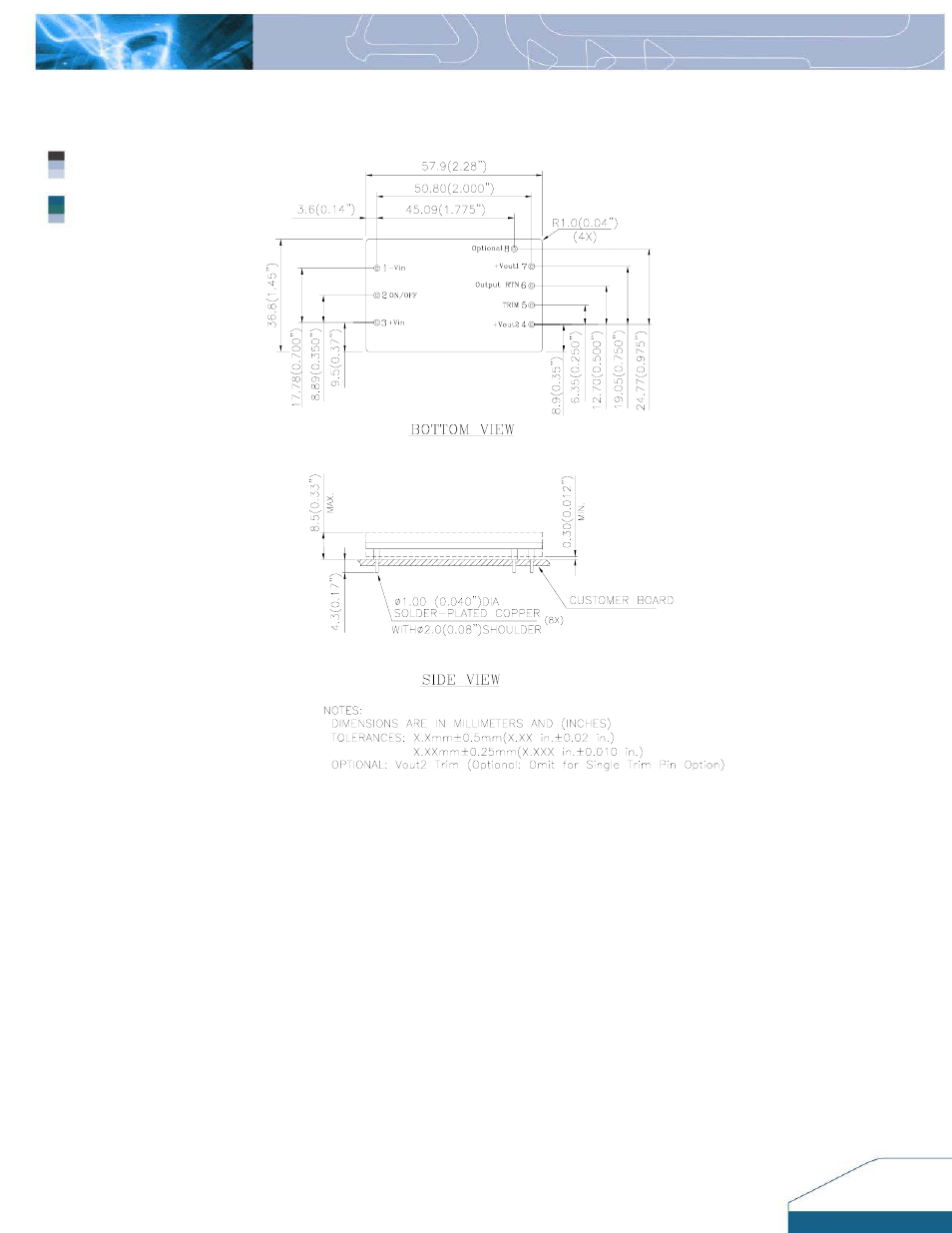

MECHANICAL DRAWING
Pin No. Name
Function
1
2
3
4
5
6
7
8
-Vin
ON/OFF
+Vin
+Vout2
TRIM
Output RTN
+Vout1
Optional
Negative input voltage
Remote ON/OFF
Positive input voltage
Positive output voltage2
Output voltage trim
Positive output voltage1
Trim 2
Notes:
1
2
Pins 1-8 are 1.00mm (0.040”) diameter
All pins are copper with Tin plating.
