Thermal considerations, Thermal curves, Thermal testing setup – Delta Electronics Q48DR User Manual

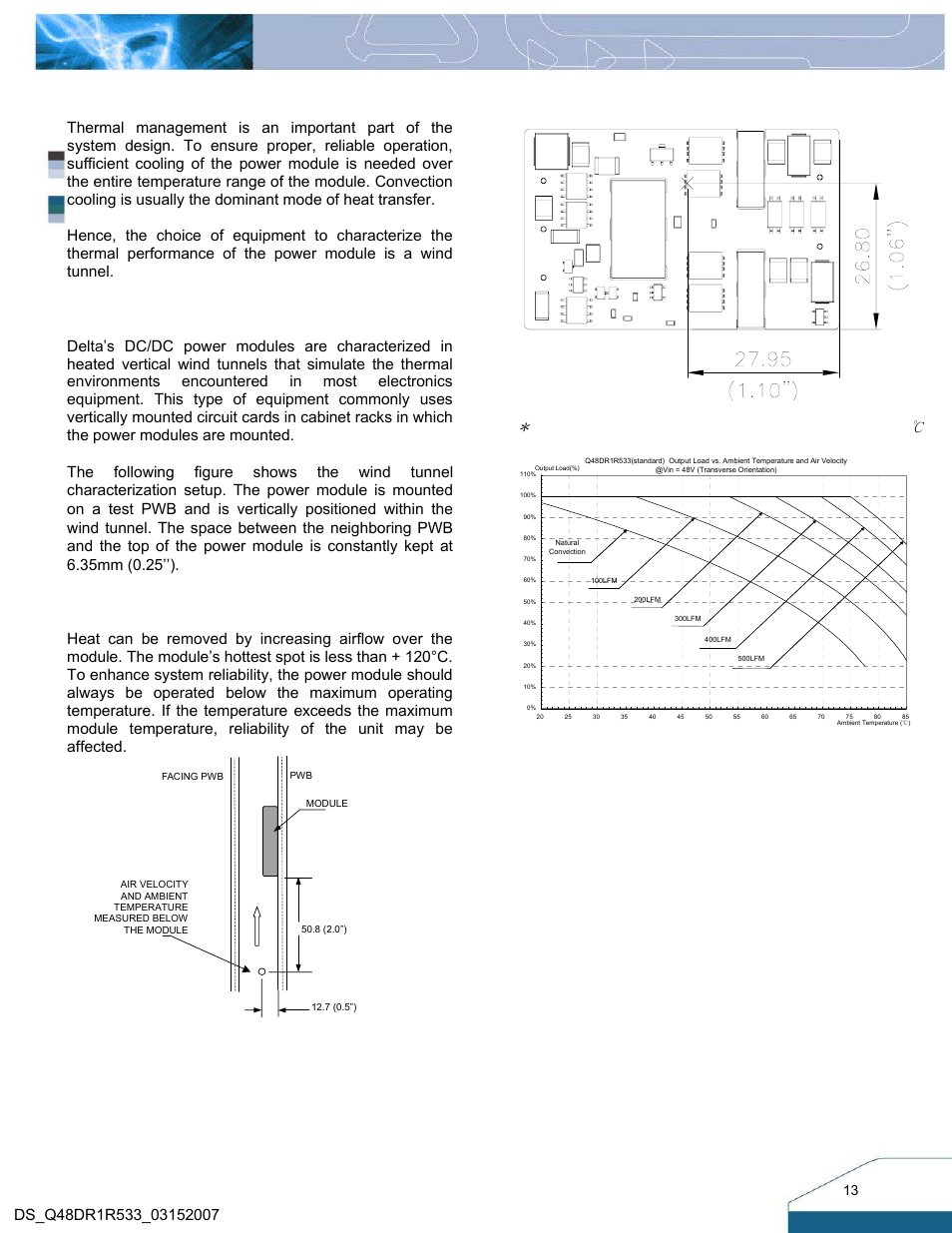

Page 12: Thermal derating, Figure 26: wind tunnel test setup, 48v(transverse orientation)
