Dynavector DV XV-1t Stereo cartridge User Manual

Page 2

Fixing to the headshell

The thread size of the mounting holes of the XV-1 is

M2.5, so please use the enclosed screws to mount the
cartridge. Please note that the mounting holes are 4mm
depth. Screws that are too long will damage the cartridge
body.
The cartridge should be aligned according to the arm
manufacturers instructions. They will normally supply a
protractor for this purpose.

Connection

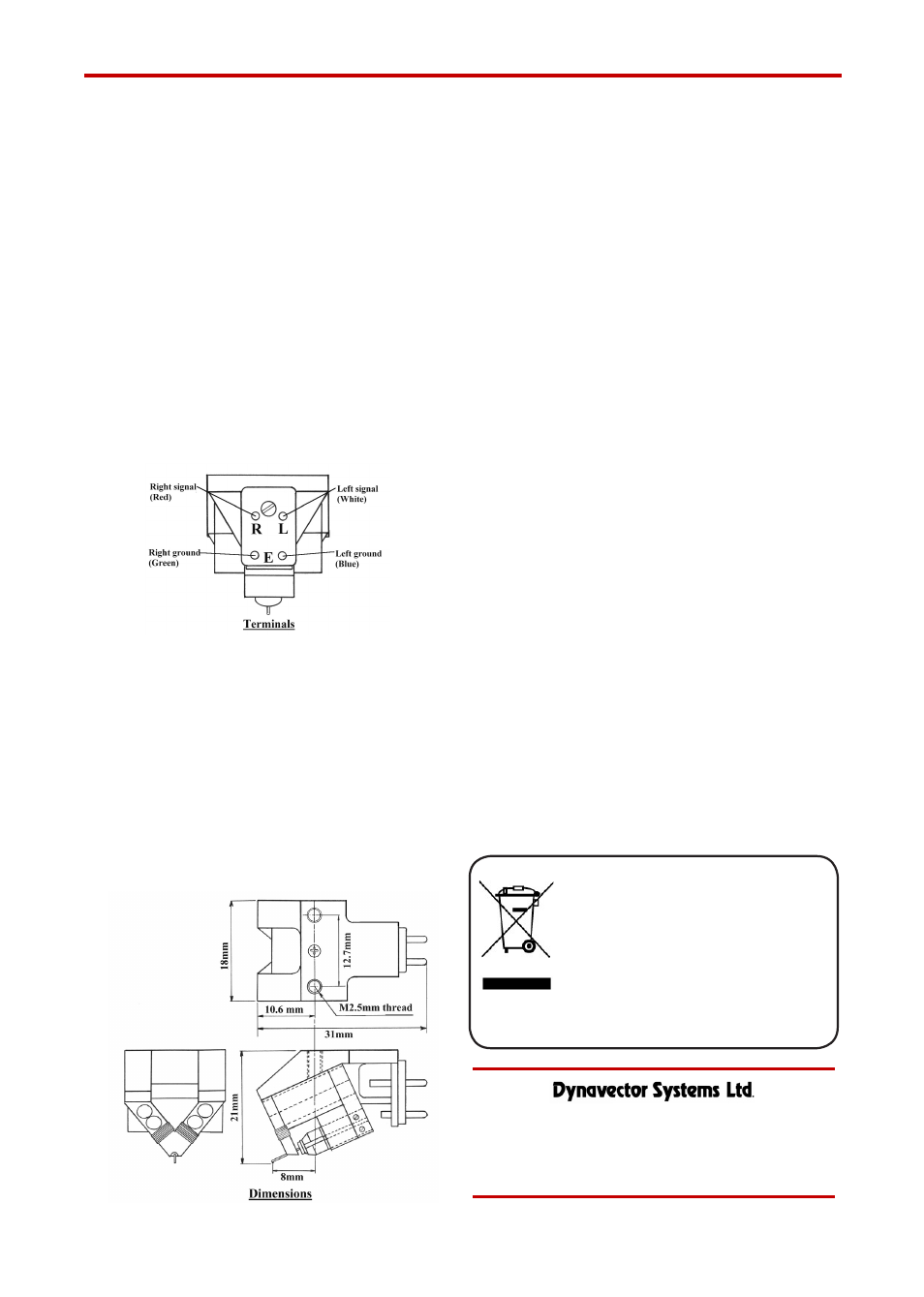

Connect the lead wires from the headshell to each pin

shown below. Best performance is obtained if you use the
enclosed lead wires that are 6N copper wire.
Please note that you should check “ Absolute Phase” to
your systems when you could not obtain a good result.
Because XV-1t is a very sensitive cartridge to “Absolute
Phase”.

Stylus Cleaning

Keep your records clean. Dust causes record wear and

sonic distortion. When cleaning the stylus use the soft
brush supplied with the cartridge. Brush only from back
to front to avoid damage to the stylus assembly. If a dark
deposit like tan should appear on the stylus tip, always
use the soft brush with a minium amount of of high qual-
ity stylus cleaning fluid. No-alcohol stylus cleaning fluid is
recommended in a routine maintenance.
We do not recommend to use commercial cleaning vi-
brators.

Stylus Replacement and Warranty

Dynavector operate an exchange scheme for the XV-1t

which entails rebuilding the cartridge. The rebuild includes
replacing all moving parts, ie the cantilever and stylus as-
sembly as well as the coils and suspension. This allows
replacement stylus cost to be minimised.

To qualify for an exchange please return the cartridge to
your dealer or national distributor.

The cartridge is guaranteed for a period of one year from
date of purchase against electrical and mechanical defects
excluding user's mishandling or abuse.

If there is any problem please consult your authorised
dealer first for service. Should it prove necessary to return
the cartridge to the factory, you should return the defec-
tive cartridge to your dealer or national distributor, together
with the warranty card. Please keep your original packing
for safe shipping.

Specifications

Type : Low output moving coil cartridge with

Multi alnico magnets and Flux Damper

Output voltage : 0.35mV (at 1KHz, 5cm/sec.)

Frequency response : 20 - 20,000Hz (±1dB)

Channel separation : 30 dB (at 1KHz)

Channel balance : 1.0 dB (at 1KHz)

Compliance : 10 mm/N

DC resistance : R= 24 ohms

Stylus tip : PF Line contact shape

stylus radius:7 x 30 micron

Cantilever : 6mm length 0.3mm dia. solid boron

with special armature

Recommended load : more than 75 ohms

Tracking force : 1.8 - 2.2 grams

Weight : 12.0grmas

16-15 Iwamoto-cho 2-chome Chiyoda-ku

Tokyo 101-0032 Japan

Phone +81(0)3-3861-4341 FAX +81(0)3-3862-1650

http://www.dynavector.com/

This product can be recycled. Products bearing this symbol must NOT
be thrown away with normal household waste. At the end of the product's
life, take it to a collection point designated for recycling of electrical and
electronic devices. Find out more about return and collection points through
your local authority.

The European Waste Electrical and Electronic Equipment (WEEE)
Directive was implemented to dramatically reduce the amount of waste
going to landfills, there by reducing the environmental impact on the planet
and on human health. Please act responsibly by recycling used products. If
this product is still useable, consider giving it away or selling it.

110712001V5
