washers and nuts that are supplied in the
hardware package. The post will have some
movement to it once the bolts have been
tightened down. Set the 550 CF Upper Bowl
Assembly (part #96001) onto the post and
using the 1/4 - 20 x 1/2” screw (supplied in
the hardware bag) finger tighten the screw
against the post. Insert the 550 CF Upper
Casefeed Tube (part #18910) into the clip on
the casefeed bowl, double check that the
flare on the tube is the end that is inserted

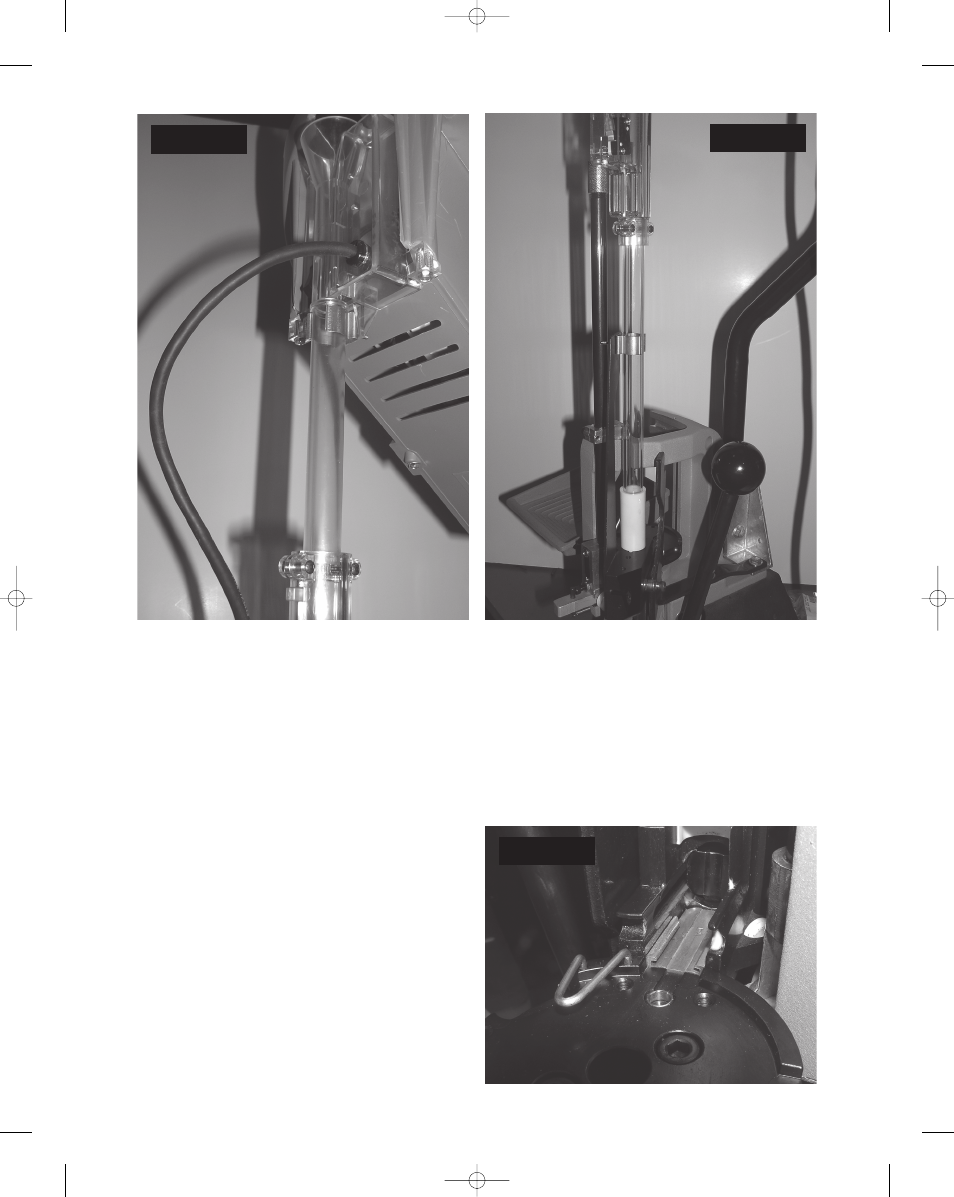

[F

IGURE

17]. Install the casefeed adaptor

(from the conversion kit that you separately
purchased) into the mounting hole on the
550 CF Lower Feeder Assembly, make sure to
align the notch on the adaptor with the
corresponding cutout in the housing. Insert
the Lower Casefeed Tube (part #18908) into
the adaptor and clip the tube into the
mounting clip attached to the Lower Feeder
Assembly [F

IGURE

18].

Slide the large end of the micro switch
housing over the Upper Casefeed Tube and
then slide it down until the Lower Case
Feed Tube will insert into the Micro Switch
Housing, once installed it should appear as
shown in the upper left hand view. Make
sure that all of the tubes are in alignment
then tighten the screw locking the Upper
Casefeed Bowl Assembly to the post.
