Congratulations on your purchase of
Dillon’s RL 550 B Casefeeder. Please take a
moment to read through these instructions
carefully before installing the casefeeder on
your machine.

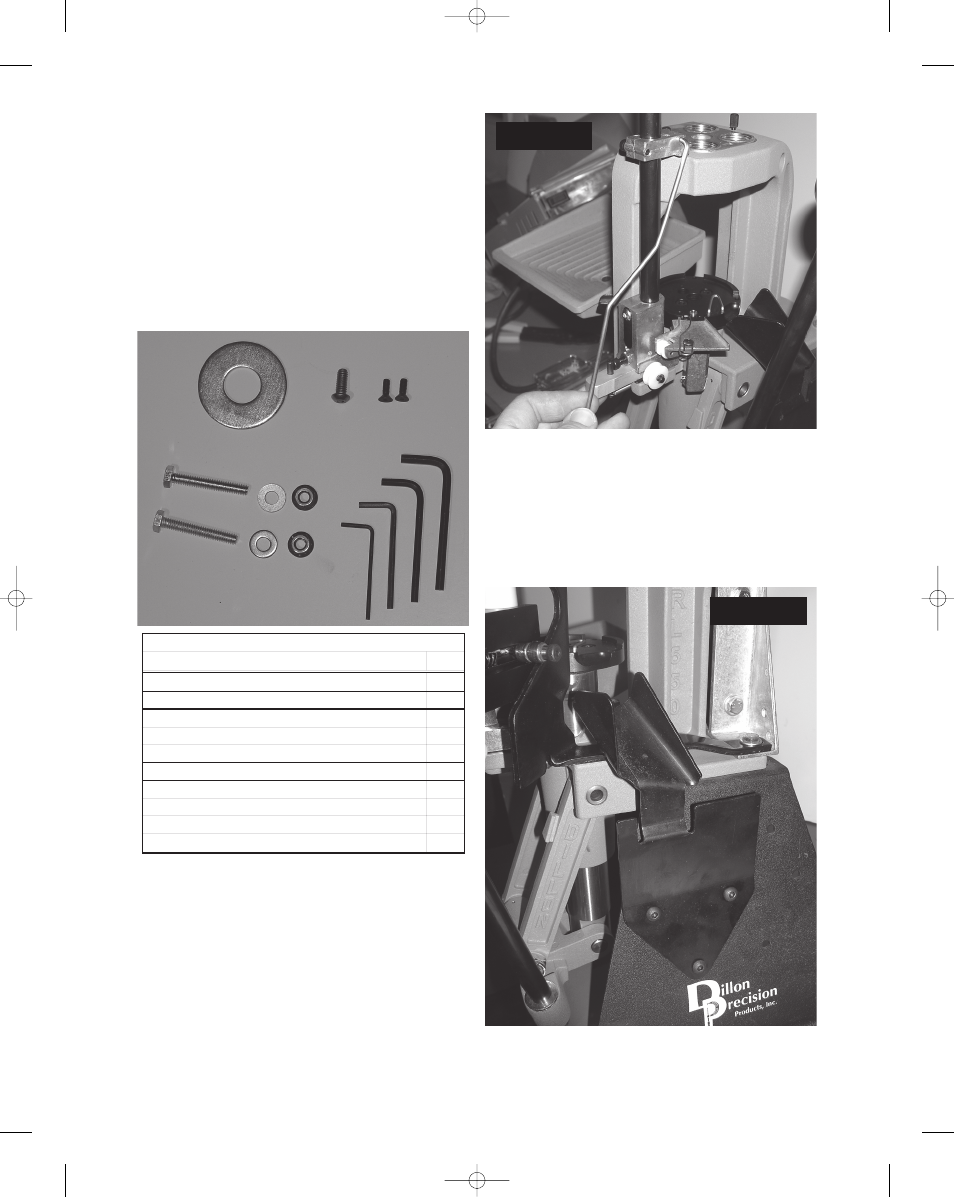

1. Check the contents of the box and verify
that all parts have been supplied. Refer to
the exploded view on the opposite page.
Hardware Kit: Part #14457
Additional Tools Needed:
• Two 7/16” wrenches
2. Begin by removing the operating rod
from the primer system [F
IGURE
1].
3. Next, remove the cartridge chute
[F
IGURE
2] (applicable for machines with
strong mount only), shellplate, index ball,
spring and toolhead [F
IGURE
3] from your
machine.
3
Hardware Kit Contents
Description Qty.
1/4 - 20 x 1 3/4 Hex Cap Screw 2
1/4 washer 2
1/4 -20 Flanged Nut 2
8-32 x 1/2 Countersunk Flathead 2
1/4 -20 x 5/8 Button Head Cap Screw 1
13/16 Washer 1
3/16 Allen Wrench 1
5/32 Allen Wrench 1
1/8 Allen Wrench 1
3/32 Allen Wrench 1
