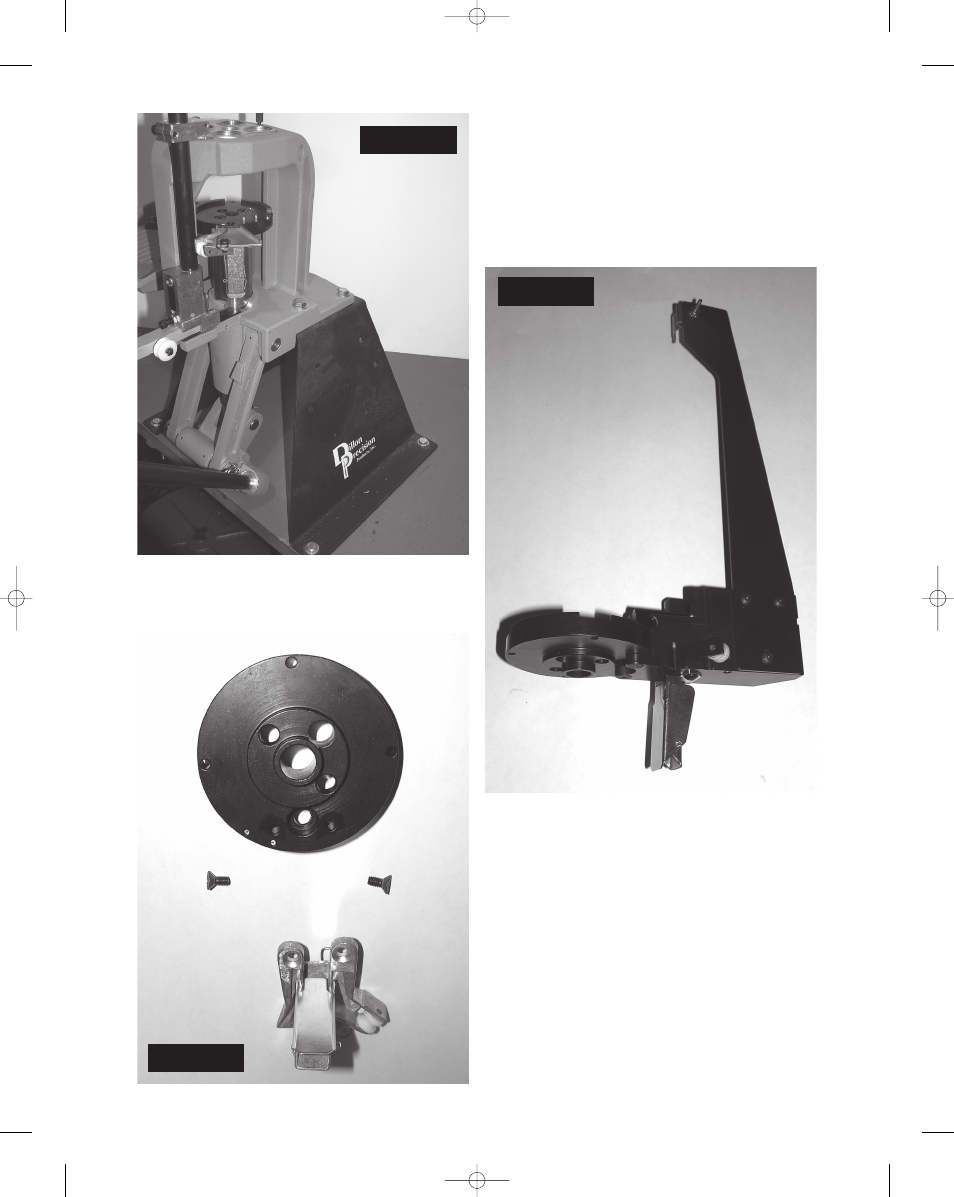

4. Next, remove the platform assembly
[F
IGURE
4] from the machine. This is
accomplished by removing the two cap
screws located toward the center of the
platform, with the supplied 3/16” Allen
wrench. Once you have the platform off the
machine, disassemble the roller bracket
from the platform[F
IGURE
4] by removing
the two flat head screws, with the supplied
3/32” Allen wrench.
5. Attach the new 550 CF Lower Feeder
Assembly (part #96002) to the platform
[F
IGURE
5] with the new 8-32 x 1/2” flat
head socket screws and Allen wrench
provided in the hardware package – be sure
to tighten.
6. Re-attach the platform and Casefeeder
housing to the shaft (make sure not to forget
the failsafe return bracket), only lightly
tighten screws at this point. You will need
to use an empty toolhead with a powder
die in the station 1 position and the
supplied alignment tool as shown in
F
IGURE
3
F
IGURE
4
F
IGURE
5
5 4
