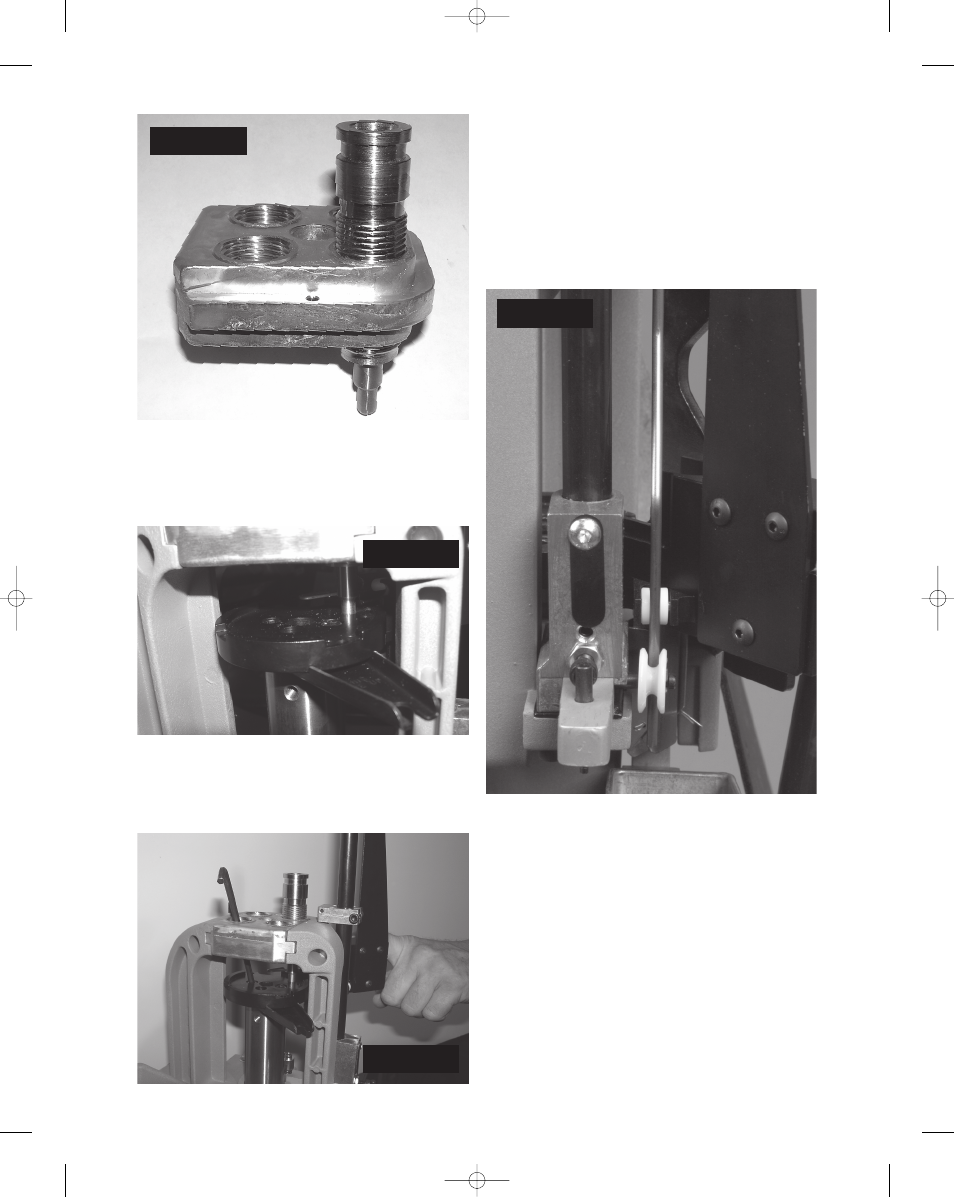

IGURE

6]. Position the toolhead in the

frame (be certain to install toolhead pins)
and raise the platform up until the small
diameter end of the alignment tool goes

freely into the primer punch hole [F

IGURE

7] you will need to pull the spring-loaded
plunger back out of the way. Radial
adjustment may be necessary to get the tool

to go in and out freely. Once this has been
accomplished, +firmly tighten down the
two bolts [F

IGURE

8]. Cycle the operating

handle, watching the alignment tool move
in and out of the primer punch hole. Make
sure the tool goes freely after tightening the
screws. You will need to make sure that the
lower casefeed assembly that you just

installed does not make contact with the
primer feed body on the priming stroke
[F

IGURE

9]. If it does, you will need to

loosen and rotate the platform
counterclockwise and retighten. Remove
the toolhead and alignment tool once you
are finished.

IGURE
