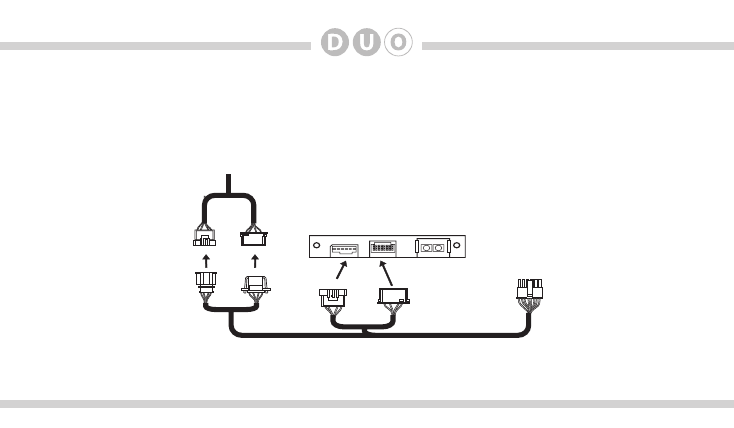

Vehicle BUS Connector - DUO-103-AVW Connector
Factory SAT
harness in vehicle
SAT Tuner (optional)*
To Silverline DUO
Interface Module
DUO-103-AVW Connector
*Connect SAT Tuner only if the SAT subscription is activated or will be activated in the near future. If vehicle did not come with a factory satellite
tuner, two connections inside the front passenger-side kick panel may have to be mated together for the Silverline Duo to recognize as an audio
source.
The factory Satellite tuner connections must be accessed, for which the location varies depending on vehicle
(inside trunk panels, under passenger seat, etc). The harness provided with the kit is long enough to reach
from these locations. If there is a factory satellite tuner, unplug it’s two connections and these can connect into
the interface harness. If satellite radio is intended to be retained, connect the other two plugs into the satellite
tuner.
