DUO-101-AVW R2 Modification
If vehicle is equipped with factory satellite radio and it is to be retained, the harness modification illustrated
below is required. NOTE: This modification will only work for VW vehicles.

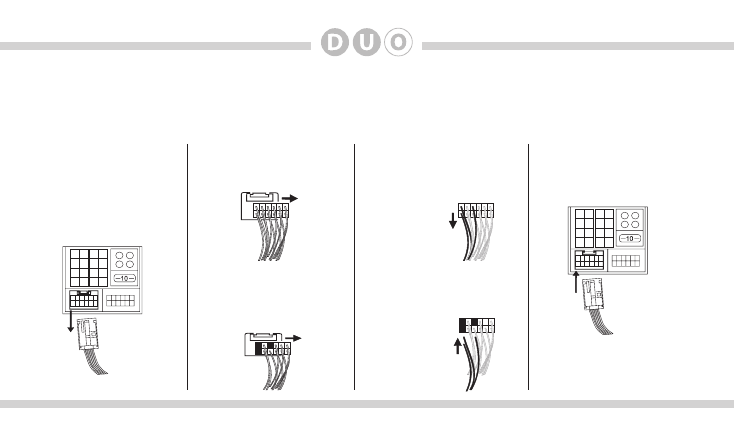

Disconnect main radio
harness and locate SAT
connector. Remove it
from main harness by
pressing on the release
tab of the SAT connector.
Slide out the inner part of
the SAT connector from
plastic housing.
Disassemble the DUO-101-
AVW R2 connector the
same way as the factory
SAT connector.
Remove the SAT wires from
the factory connector by
releasing the pins with a small
screw driver or ball point pen.
Put plastic connector covers
back on. Insert DUO-101-
AVW R2 connector to factory
VW main harness.
Connect ground wire to
chassis of radio.
Relocate wires to DUO-101-
AVW R2 connector keeping
the same order and location.
1 2
3
4
5
6
7
SAT
Connector
pins 1,3, 7
pins 1,3, 7
DUO-101-AVW
R2 connector
