Component Concept
CC20E airline respirators
Bullard’s CC20E Series airline respirators consist of three components (Figure
1): respirator hood assembly, breathing tube assembly and air supply hose. All
components must be present and properly assembled to constitute a complete CE
approved respirator.
➀
rESPiraTOr HOOD aSSEMBLY: Includes hood and headband suspension or
hard hat.
respirator Hood Suspension or Hard Hat
20TICNE* (Tyvek QC) 20TGE suspension
20SICNE* (Tychem SL with taped seams) 20TGE suspension
20TICHE** (Tyvek QC)
5100E or 5100RE
* Optional accessories: 20nC chinstrap, 20LCL lens cover
** Optional accessories: ES42 chinstrap, 20LCL lens cover
➁ BrEaTHing TUBE aSSEMBLY: Connects respirator hood to air supply hose by an
airflow control device and belt.
Breathing Tube assemblies
V30E with 1/4” Industrial Interchange nipple
V33E with 1/4” brass Snaptite nipple
V39E with 9 mm European Interchange nipple
➂ air SUPPLY HOSE: Connects breathing tube to air source supplying clean
breathable air.
nOTE
When using V130-E breathing tube assembly, use E10A Connection Kit to connect
to E10 hoses
When using V133-E breathing tube assembly, use E10B Connection Kit to connect
to E10 hoses.
CC20 Component
Concept
4 2
Hose for High Pressure Compressed air Source
E10
3/8” Coiled I.D. Hose
E1010 E1020
Available in 10 and 20
meter lengths.
Warning
Do not modify or alter this respirator in any manner. Failure to use
complete CE approved Bullard components and replacement parts voids
approval of entire assembly.
Headband or
Head Protection
Air Flow Control
Device
Clean Breathable
Air Source
Air Supply Hose
Inner Bib
Breathing Tube
Assembly

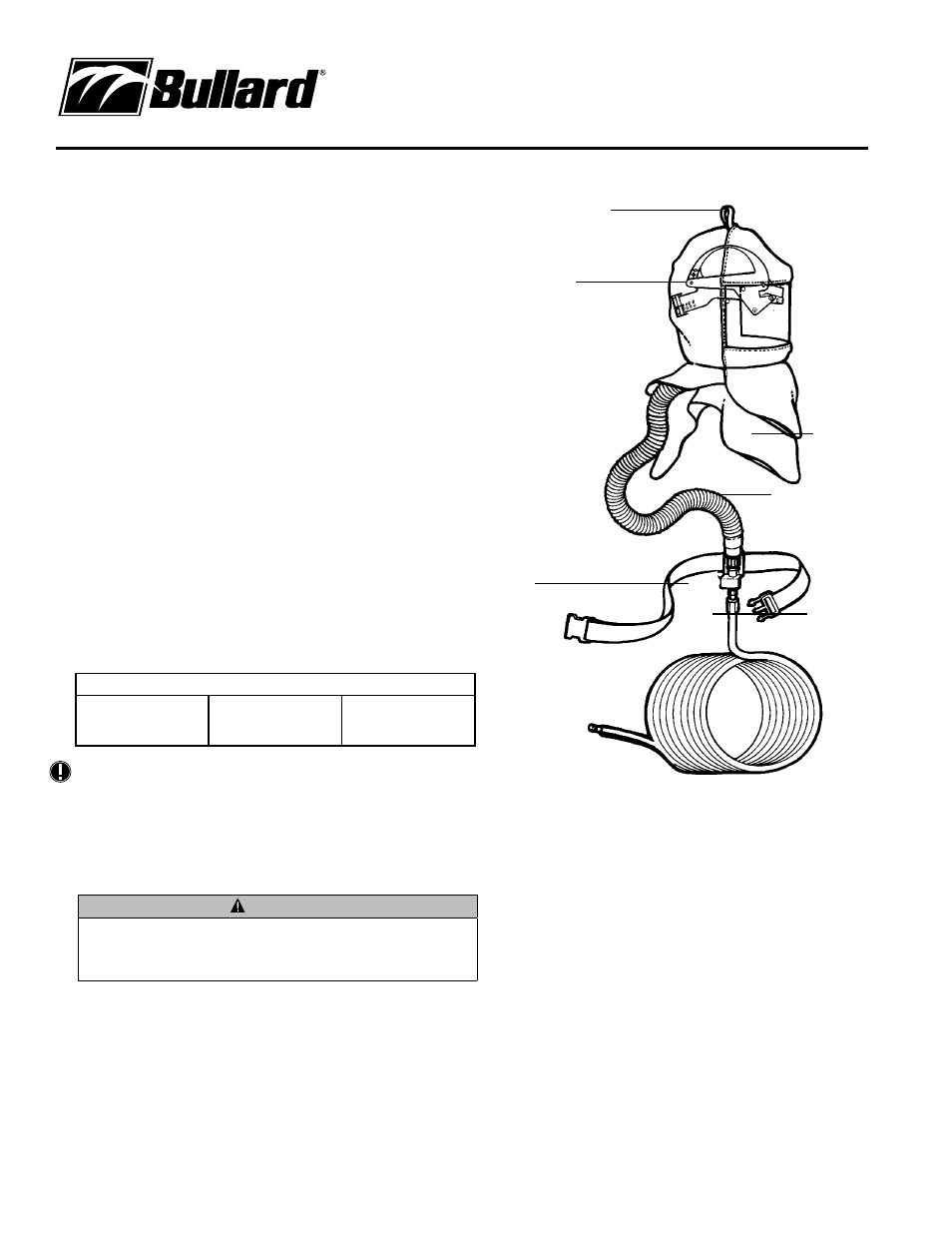

Figure 1
Respirator
Hood Assembly
