MATRIX-1000™ QUICK GUIDE
3
STEP 2 – MOUNTING AND POSITIONING THE SYSTEM
1. To mount the Matrix-1000™, use the mounting bracket to obtain the most suitable position for the reader as
shown in the figures below.

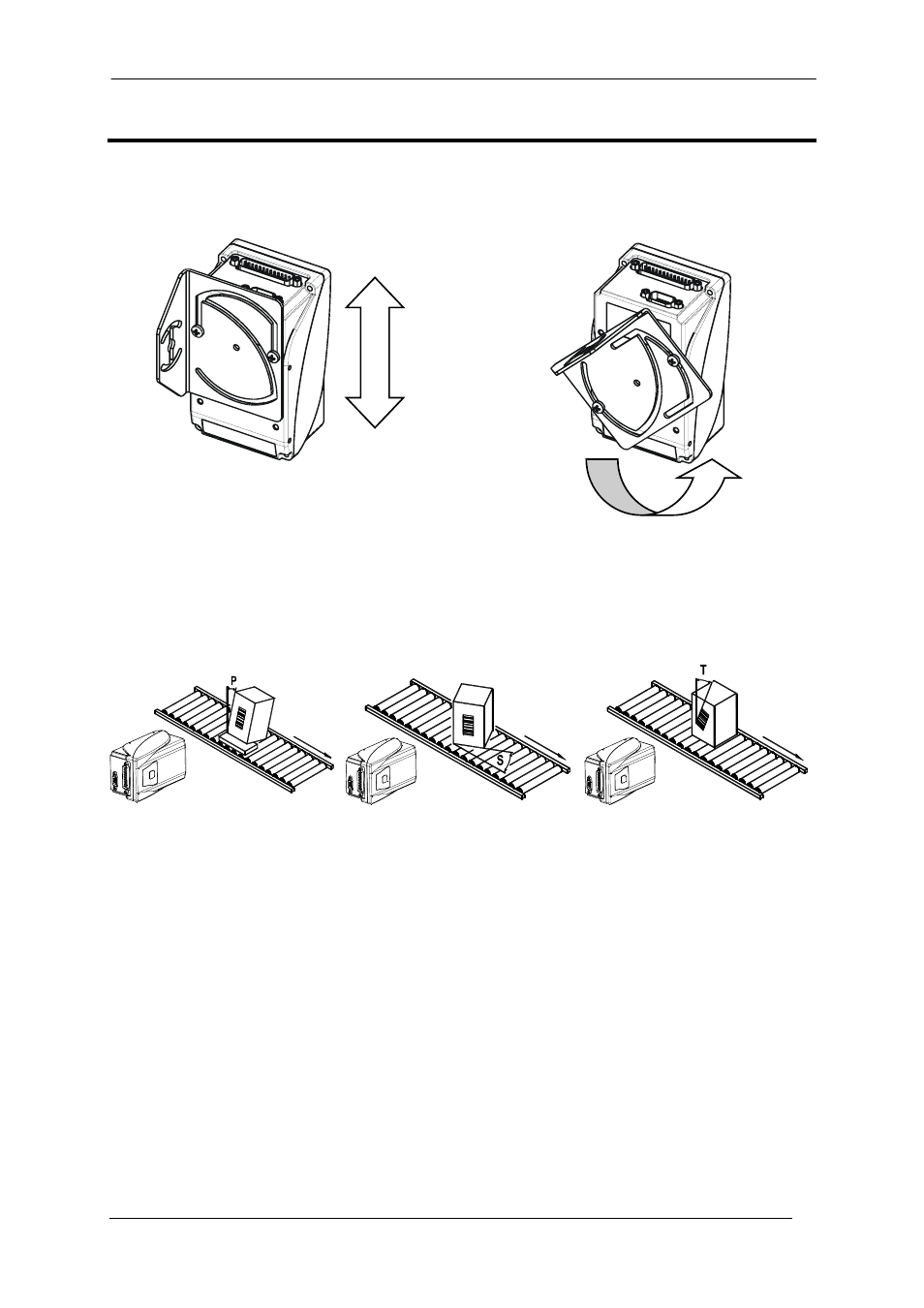

Figure 2 - Positioning with Mounting Bracket
2. When mounting the Matrix-1000™ take into consideration these three ideal label position angles: Pitch or Skew
10° to 20° and Tilt 0°, although the reader can read a code at any Tilt angle.
Minimize Assure at least 10° Minimize
Figure 3 – Pitch, Skew and Tilt Angles
3. Refer to the Reading Features in the Appendix of this Quick Reference Guide to determine the distance your
reader should be positioned at.
