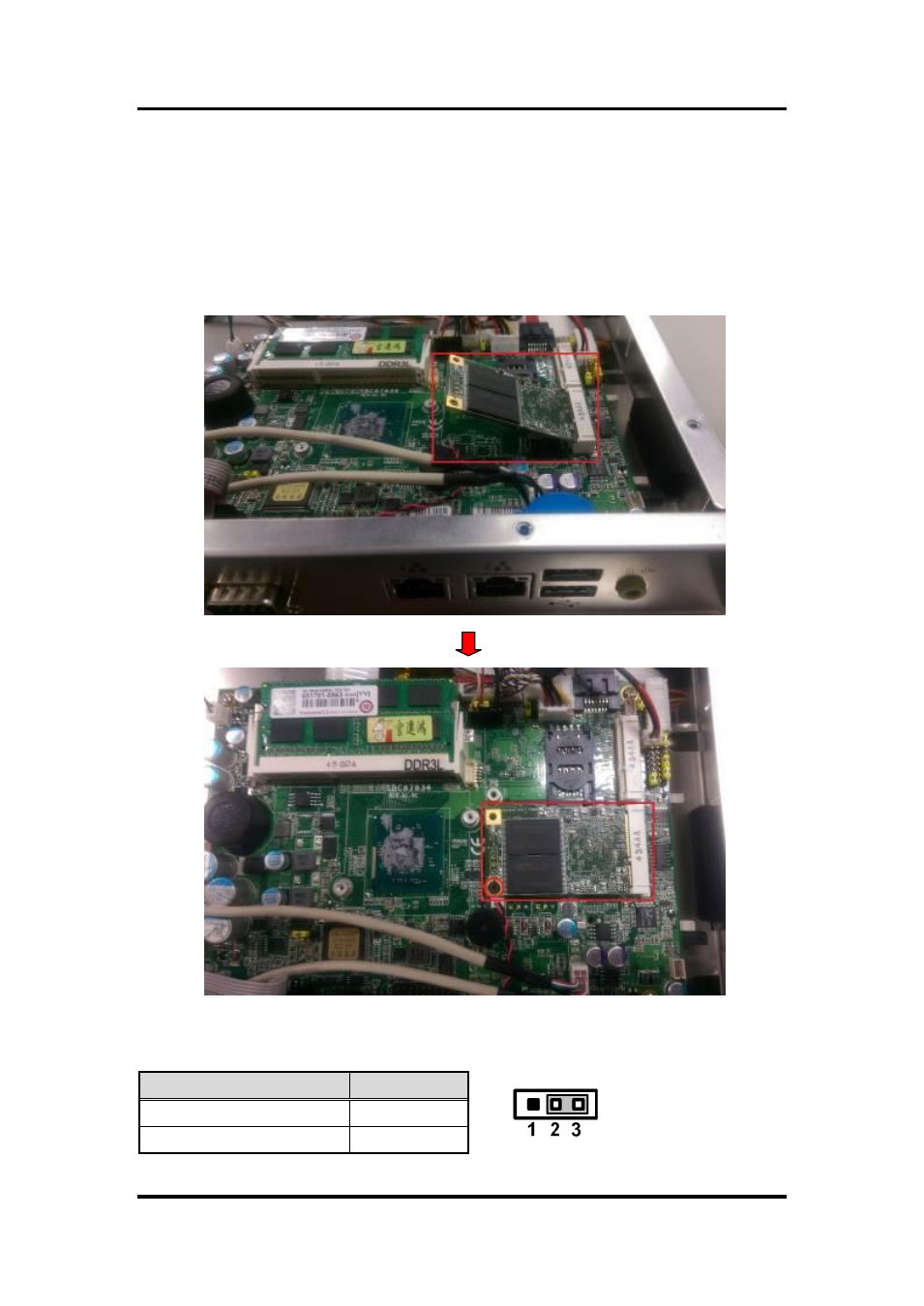

2.8 mSATA Card Installation
The GOT3126T-834 provides one Mini card slot for user to install one mSATA card. When
installing it, please refer to the following instructions and illustration:
Step 1
Refer to section 2.1 to open the back cover and find out mini-card slot (CN8) on
mainboard.
Step 2
Insert the wireless LAN card to the slot. Push it down firmly and screw it.
Hardware installation completed.
The default setting of JP6 is for PCIe mini-card. If you want to install mSATA card on your
system, please remember to set this jumper to 2-3 close.
Function
Setting
PCIe device(default)
1-2 close
mSATA device
2-3 close
