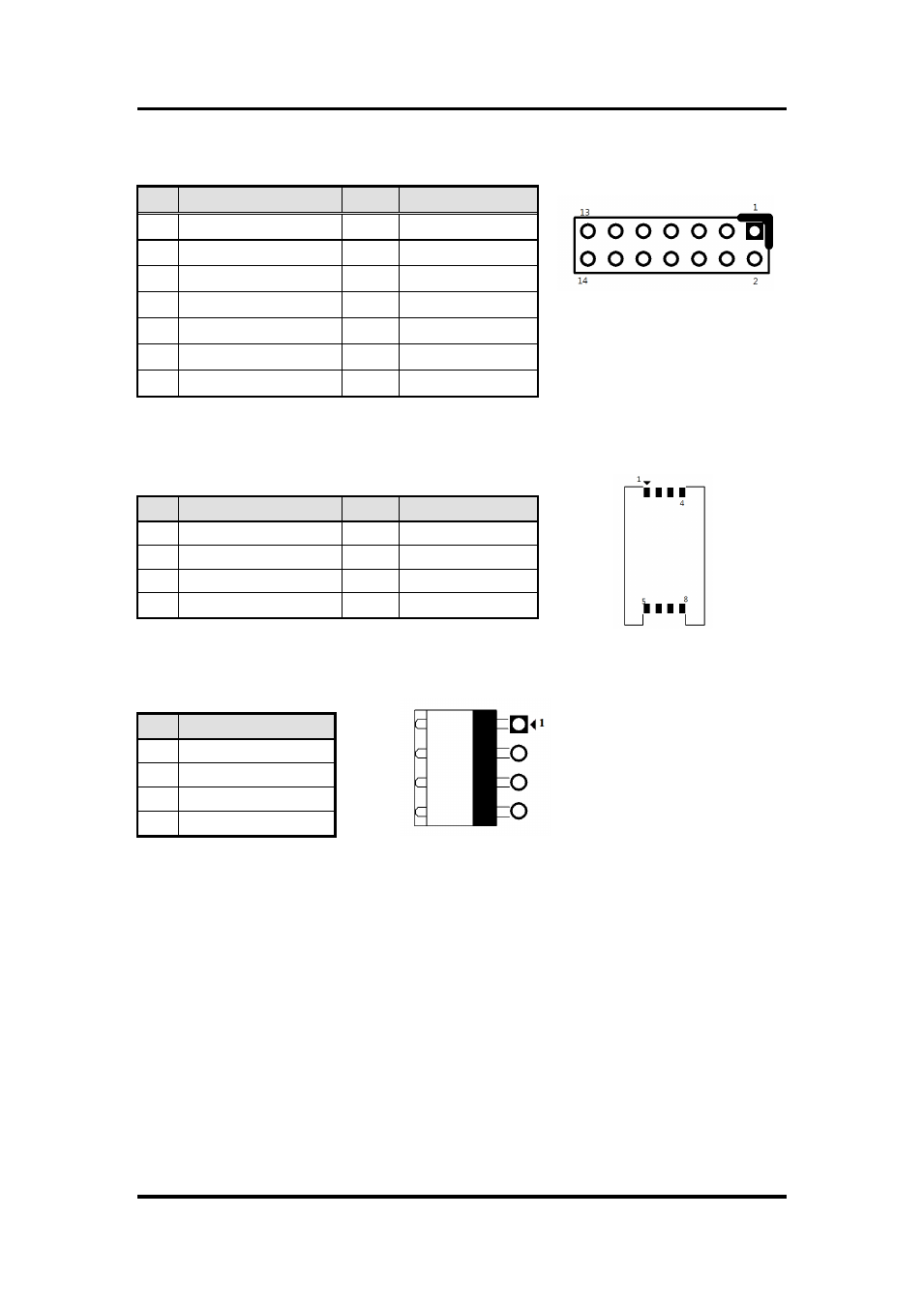

FRONT PANEL pin header: CN6
CN6 Pin Assignment
SIM card connector: CN7
CN7 Pin Assignment
Pin
Description
Pin
Description
1
UIM PWR
5
GND
2
UIM RST
6
UIM VPP
3
UIM CLK
7
UIM DATA
4
NC
8
NC
Power connector: CN9
CN9 Pin Assignment
Pin
Description
1
DCIN (9V -36V)
2
DCIN (9V -36V)
3
GND
4
GND
Pin
Description
Pin
Description
1
+ 5V
2
Beep
3
GND
4
BUZZER
5
GND
6
Beep
7
NC
8
+5V
9
GND
10
PWBTN
11
GND
12
RESET
13
SATA LED
14
+3.3V
