Digital i/o pin header: cn10, Speaker-out & mic-in connector: cn11, Vga cable connector: cn12 – Axiomtek GOT3126T-834 User Manual
Page 26
GOT3126T-834
User’s Manual
20
Hardware and Installation

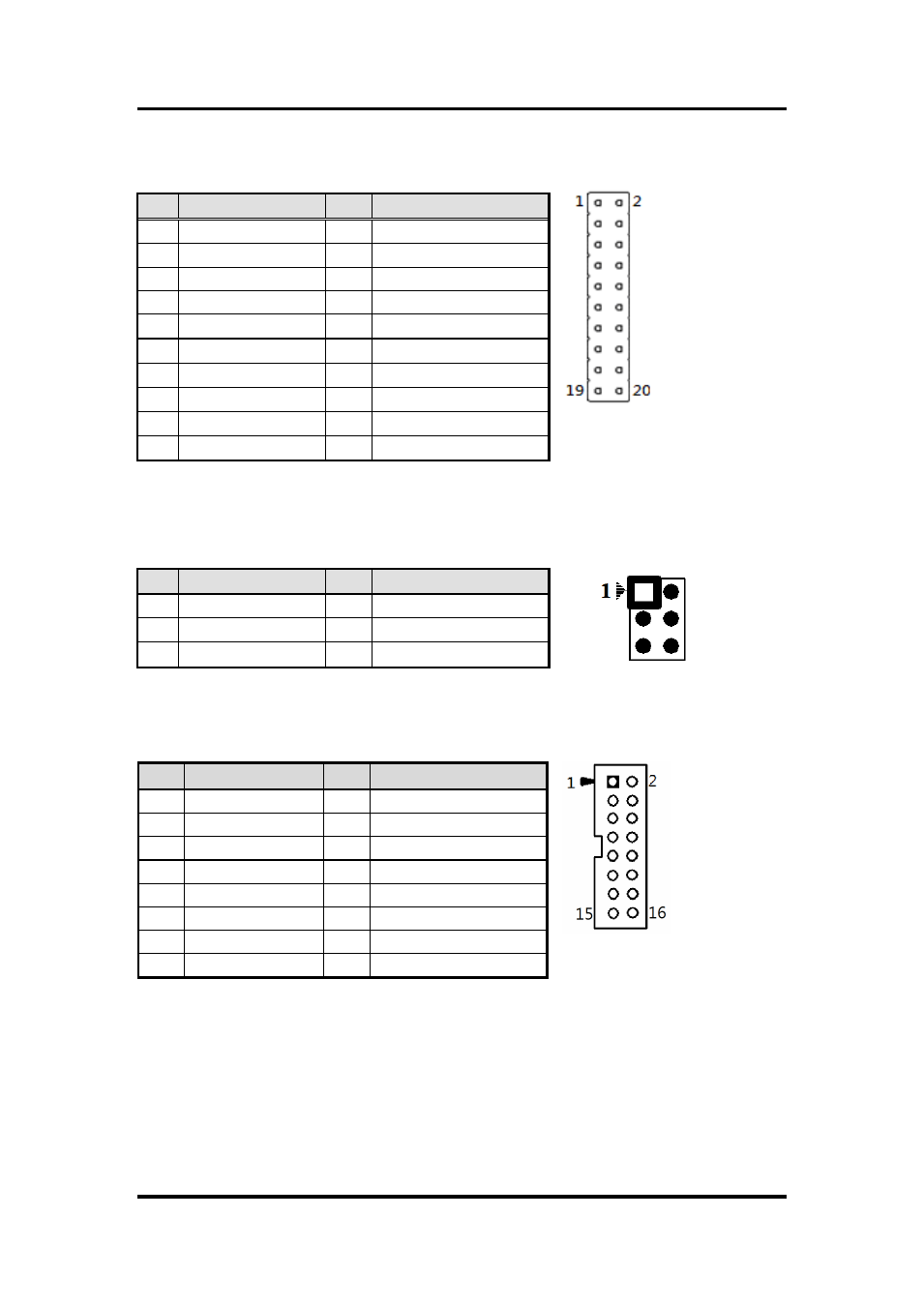

Digital I/O pin header: CN10
CN10 Pin Assignment
Speaker-out & MIC-in connector: CN11
CN11 Pin Assignment
Pin
Description
Pin
Description
1
SPKOUT_L-
2
SPKOUT_L +
3
SPKOUT_R-
4
SPKOUT_R +
5
MIC IN
6
GND
VGA Cable Connector: CN12
CN12 Pin Assignment
Pin
Description
Pin
Description
1
GND
6
GND
2
GPIO0
7
GPIO1
3
GPIO2
8
GPIO3
4
GPIO4
9
GPIO5
5
GPIO6
10
GPIO7
11
GPIO8
12
GPIO9
13
GPIO10
14
GPIO11
15
GPIO12
16
GPIO13
17
GPIO14
18
GPIO15
19
GND
20
GND
Pin
Signal
Pin
Signal
1
Red
2
GND
3
Green
4
N.C.
5
Blue
6
N.C.
7
VCC
8
DDC DATA
9
GND
10
N.C.
11
GND .
12
Horizontal Sync
13
GND
14
Vertical Sync
15
DCC CLK
16
N.C.
