GOT3126T-834 User’s Manual
18 Hardware and Installation

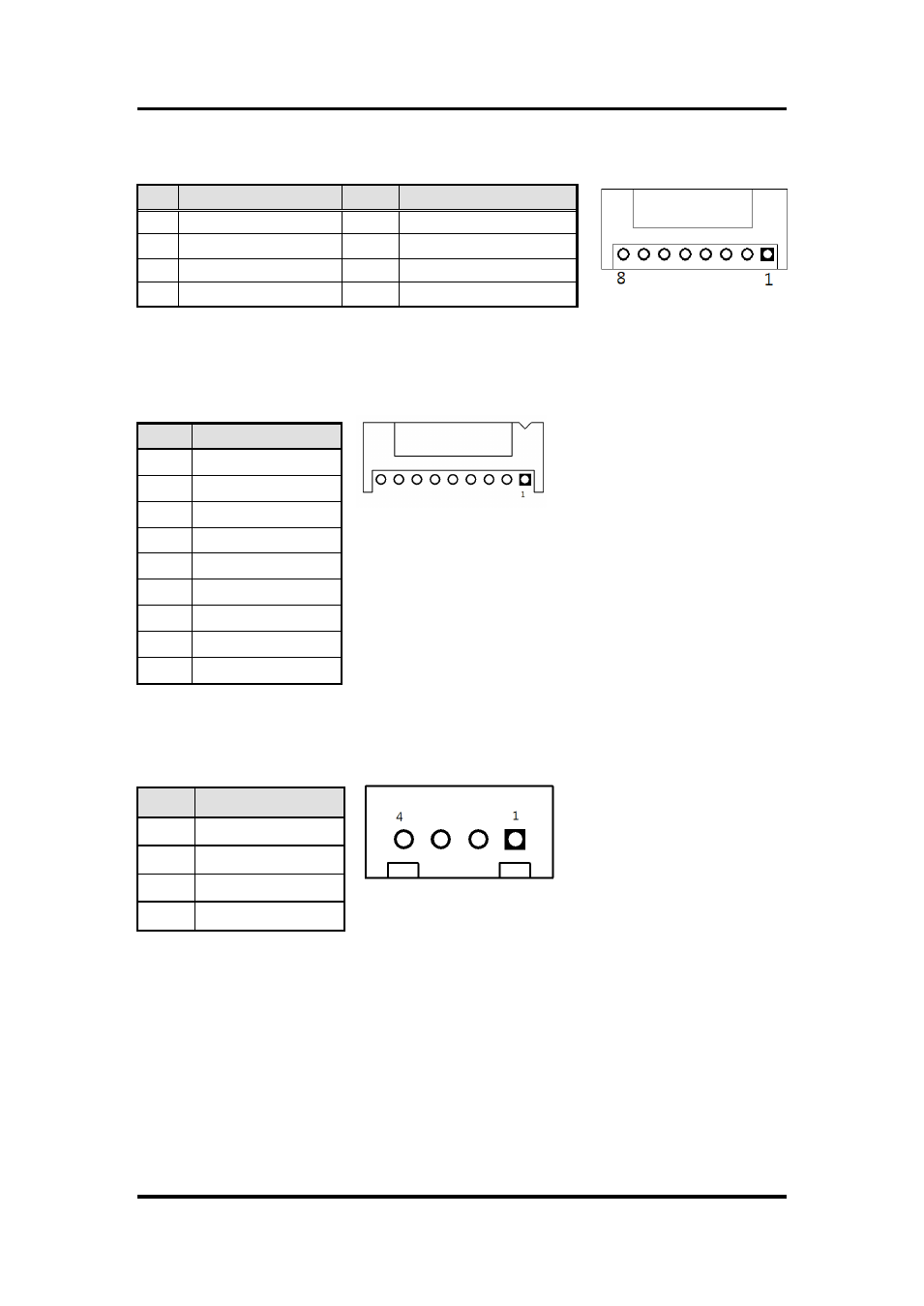

LVDS inverter connector: CN2
CN2 Pin Assignment
TOUCH connector: CN3
CN3 Pin Assignment
HDD power connector: CN4
CN9 Pin Assignment
Pin Description Pin Description
1 GND 5 Inverter ON-OFF
2 GND 6 +12V
3 GND 7 +12V
4 Backlight control 8 +12V
Pin Description
1 X+
2 X-
3 Y+
4 Sense
5 X+
6 X-
7 Y+
8 Y-
9 GND
Pin Description
1 +12V
2 GND
3 GND
4 +5V
