FDK172-834 User’s Manual
Hardware and Installation 17
2.7 DRAM Installation
The FDK172-834 provides one 204-pin DDR3 SODIMM socket that support system memory
up to 4GB. Please follow steps below to install the memory modules:

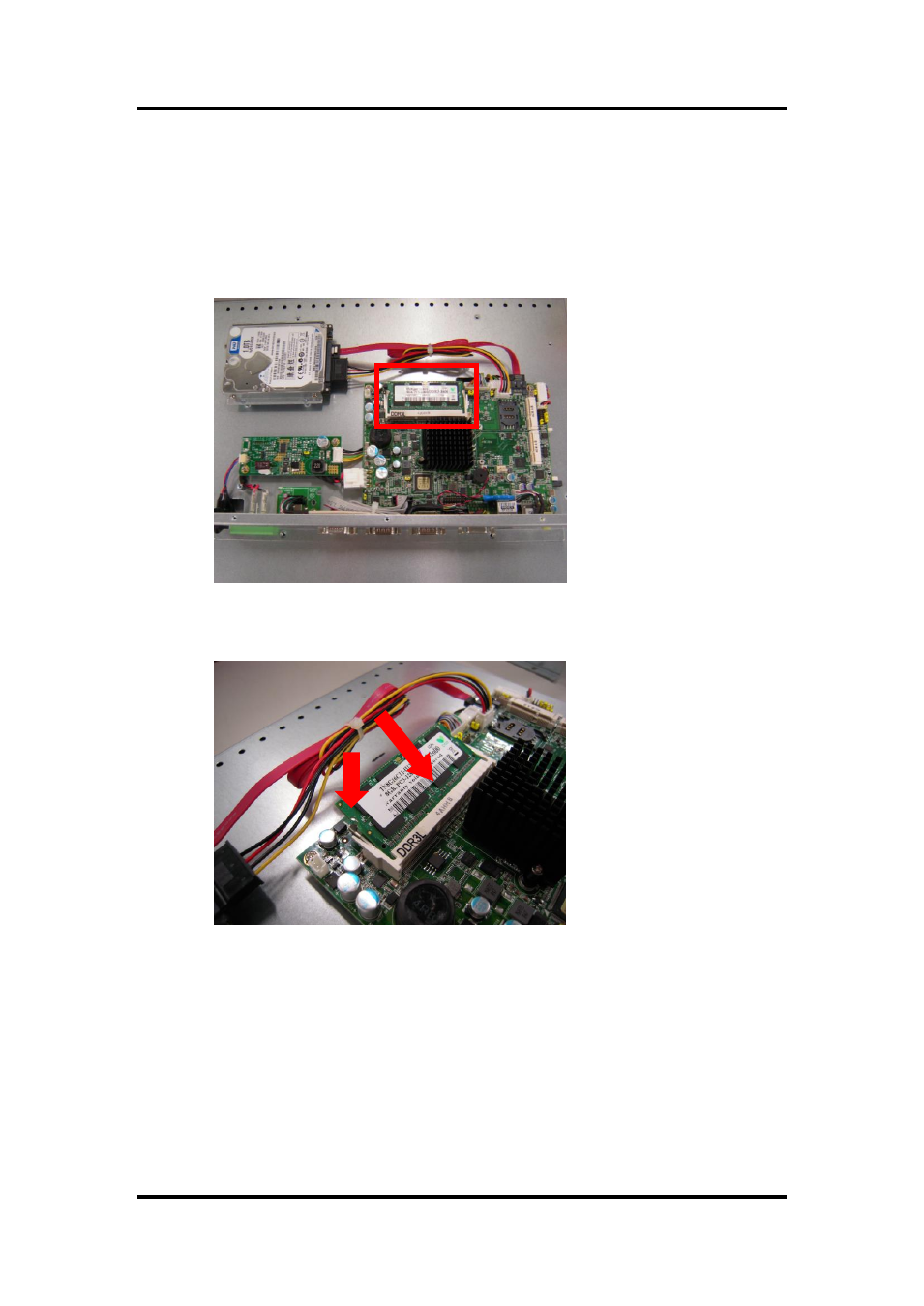

Step 1
Refer to section 2.1 to open the back cover and find out DIMM socket on
mainboard (SBC87832).
Step 2 Insert the DRAM to the DIMM socket, and then push it down firmly until it is
clipped by the socket.
Step 3 Installation completes.
1
2
