FDK172-834
User’s Manual
10
Hardware and Installation
2.2
CF card Installation
The FDK172-834 provides one CF slot for users to install CompactFlash
™
card. Please refer
to the following instructions for installation:
Step 1
Turn off the system, and unplug the power cord.
Step 2

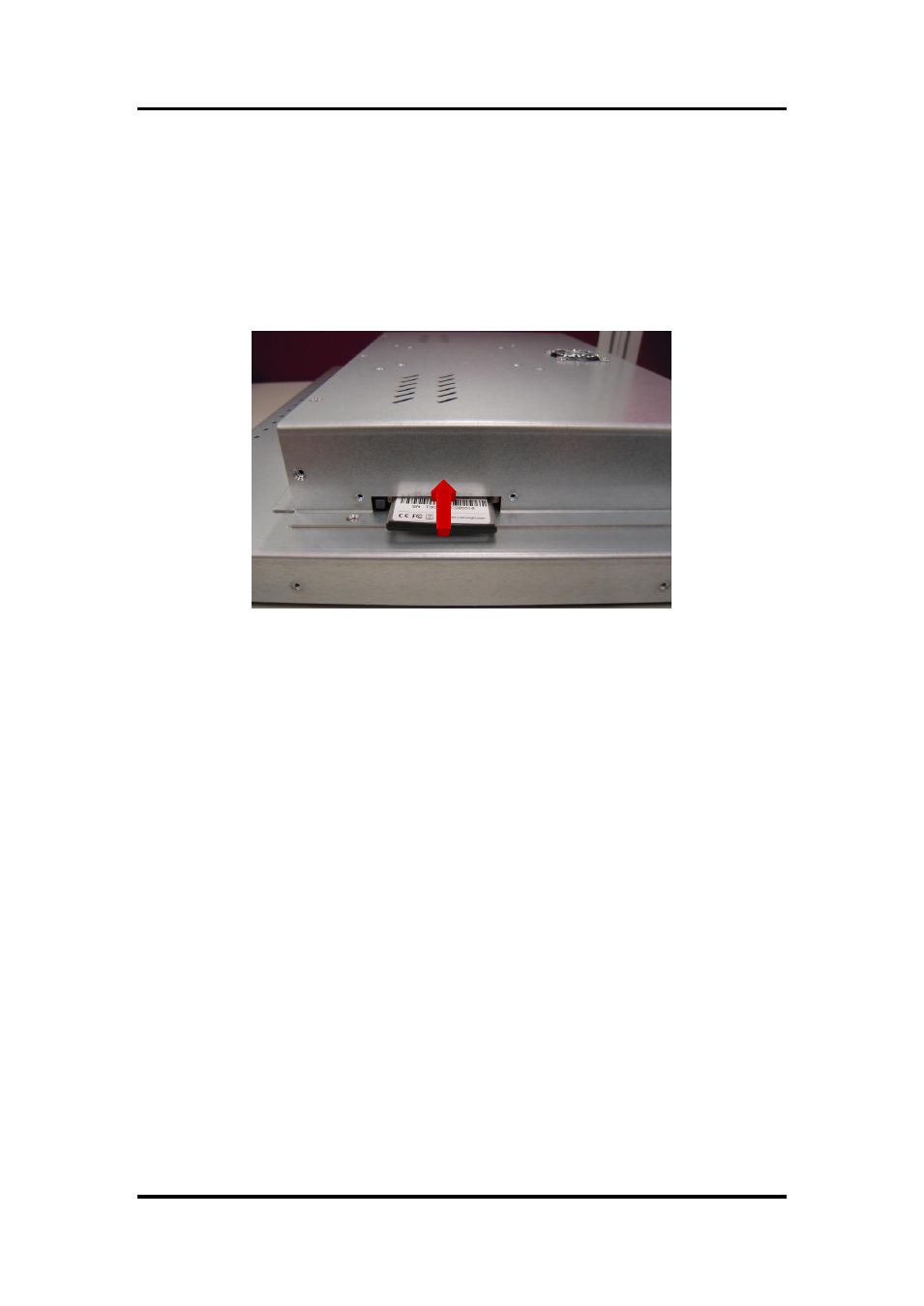

Locate the CompactFlash
TM
socket, and insert the card into the socket.
2.3
Serial Ports Interface
The FDK172-834 has four serial ports. COM1 and COM2 are RS-232/422/485, while COM3
and COM4 are RS-232.
