EEV-EX03
32 EEV-EX03 Quick Installation Guide

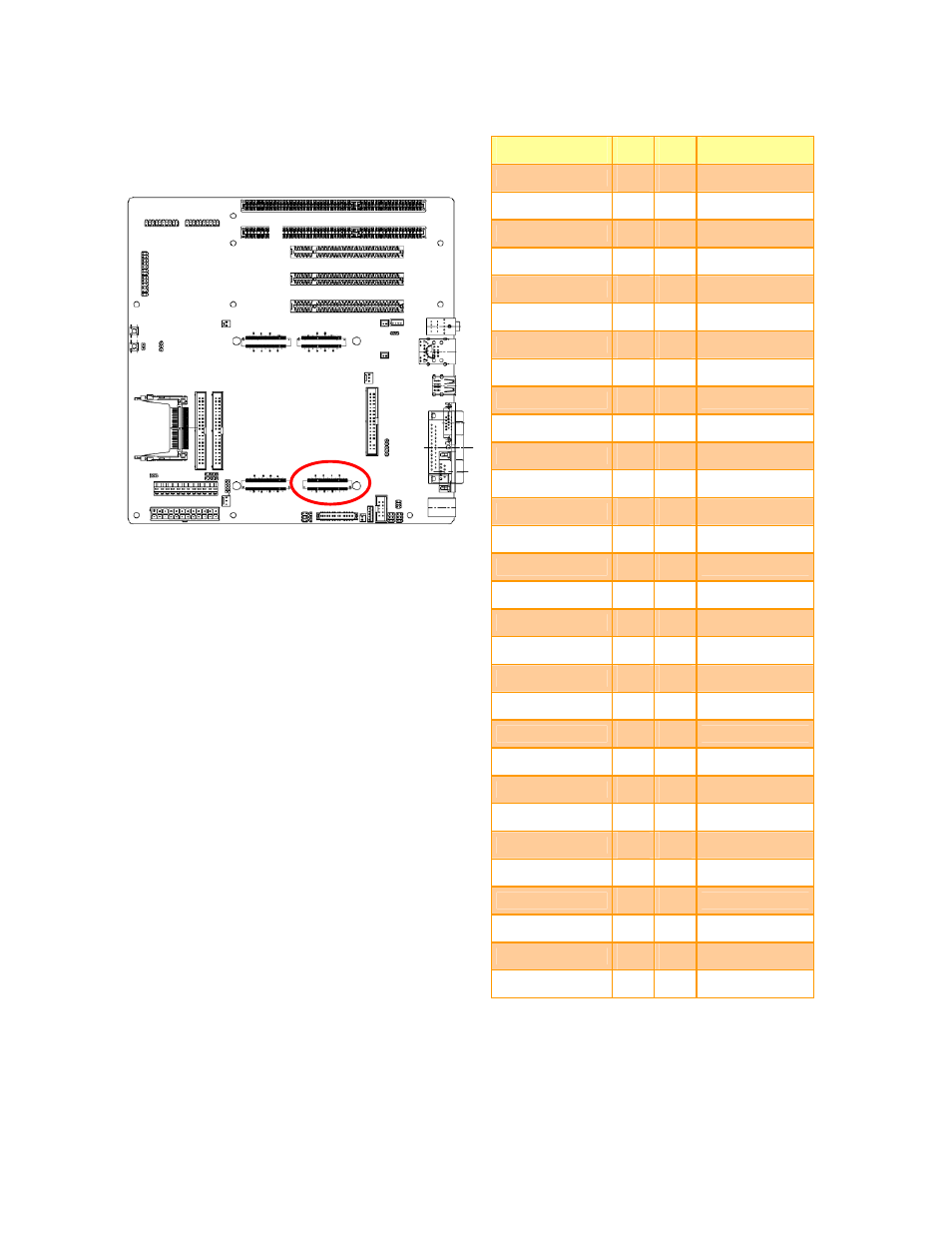

2.3.30 ETX Connector 3 (ETX3)
Signal PIN PIN Signal
GND C1 C2 GND
R C3 C4 B
HSY C5 C6 G
VSY C7 C8 DDCK
DETECT# C9 C10 DDDA
LCD16/B4 C11 C12 LCD18/SHFCLK
LCD17/B5 C13 C14 LCD19/EN
GND C15 C16 GND
LCD13/B1 C17 C18 LCD15/B3
LCD12/B0 C19 C20 LCD14/B2
GND C21 C22 GND
LCD8/G2 C23 C24 LCD11/G5
LCD9/G3 C25 C26 LCD10/G4
GND C27 C28 GND
LCD4/R4 C29 C30 LCD7/G1
LCD5/R5 C31 C32 LCD6/G0
GND C33 C34 GND
LCD1/R1 C35 C36 LCD3/R3
LCD0/R0 C37 C38 LCD2/R2
+5V C39 C40 +5V
JILI_DAT C41 C42 LTGIO0/VSYNC
JILI_CLK C43 C44 BLON#
BIASON/HSYNC C45 C46 DIGON
COMP C47 C48 Y
SYNC C49 C50 C
LPT/FLPY# C51 C52 NC
+5V C53 C54 GND
STB#/I.C C55 C56 AFD#/DENSEL
NC C57 C58 PD7/NC
IRRX C59 C60 ERR#/HDSEL#
