EEV-EX03

20 EEV-EX03 Quick Installation Guide

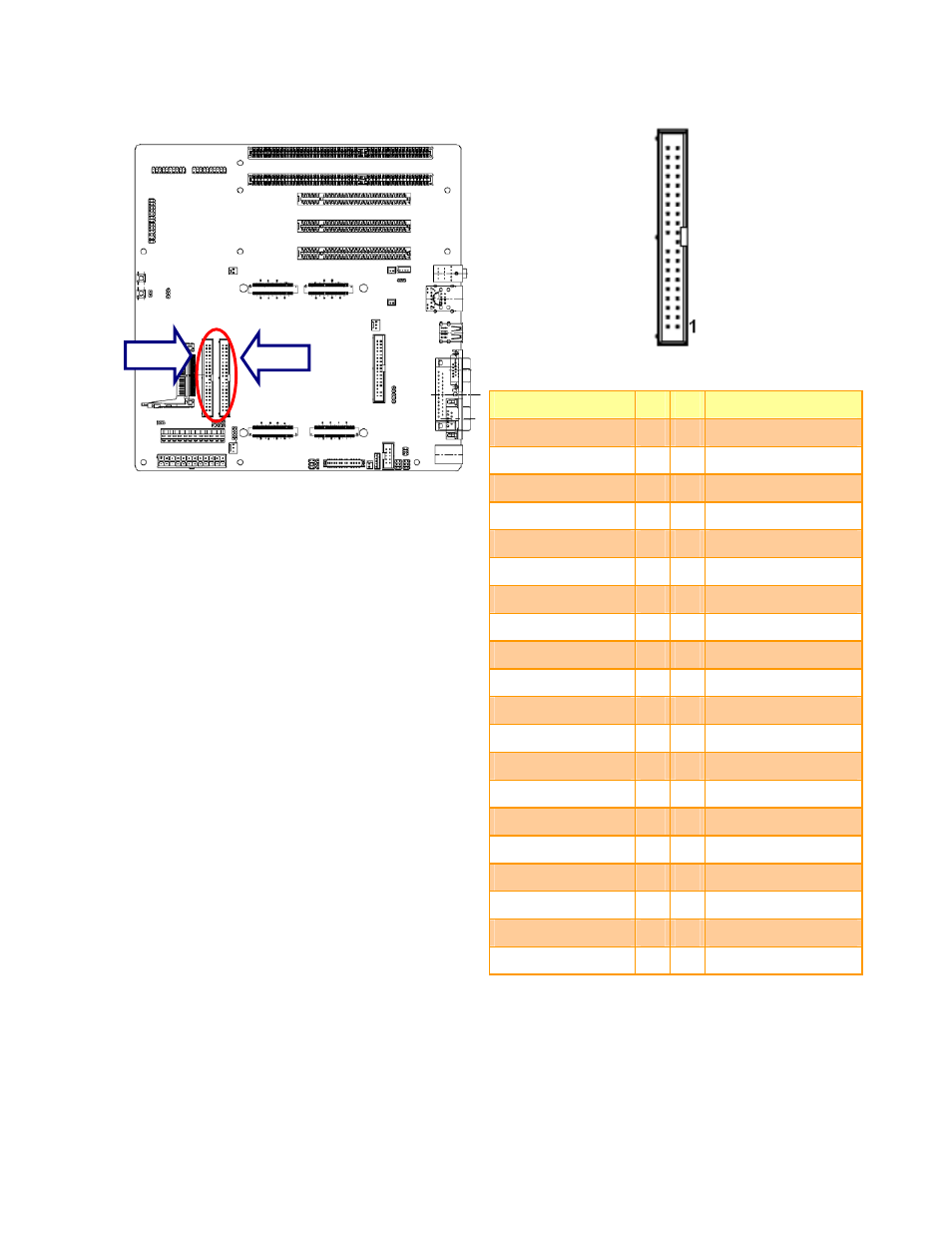

2.3.19 Primary IDE Connector (IDE1/IDE2)

Signal

PIN PIN

Signal

HDRST

1

2

GND

HQ7/HP7

3

4

HQ8/HP8

HQ6/HP6

5

6

HQ9/HP9

HQ5/HP5

7

8

HQ10/HP10

HQ4/HP4

9

10

HQ11/HP11

HQ3/HP3

11

12

HQ12/HP12

HQ2/HP2

13

14

HQ13/HP13

HQ1/HP1

15

16

HQ14/HP14

HQ0/HP0

17

18

HQ15/HP15

GND

19

20

QDREQ/HDREQ

21

22

GND

QIOW/HDIOW

23

24

GND

QIOR/HDIOR

25

26

GND

QIRDY/HIORDY

27

28

GND

QDACK/HDACK

29

30

GND

QIRQ/HIRQ

31

32

NC

QDA1/HDA1

33

34

SPDIAG_S/DMA100

QDA0/HDA0

35

36

QDA2/HDA2

QDCS1/HCS#1

37

38

QDCS3/HCS#3

HD_LED2/HD_LED1 39

40

GND

IDE1

IDE2
