Quick Installation Guide

EEV-EX03 Quick Installation Guide 23

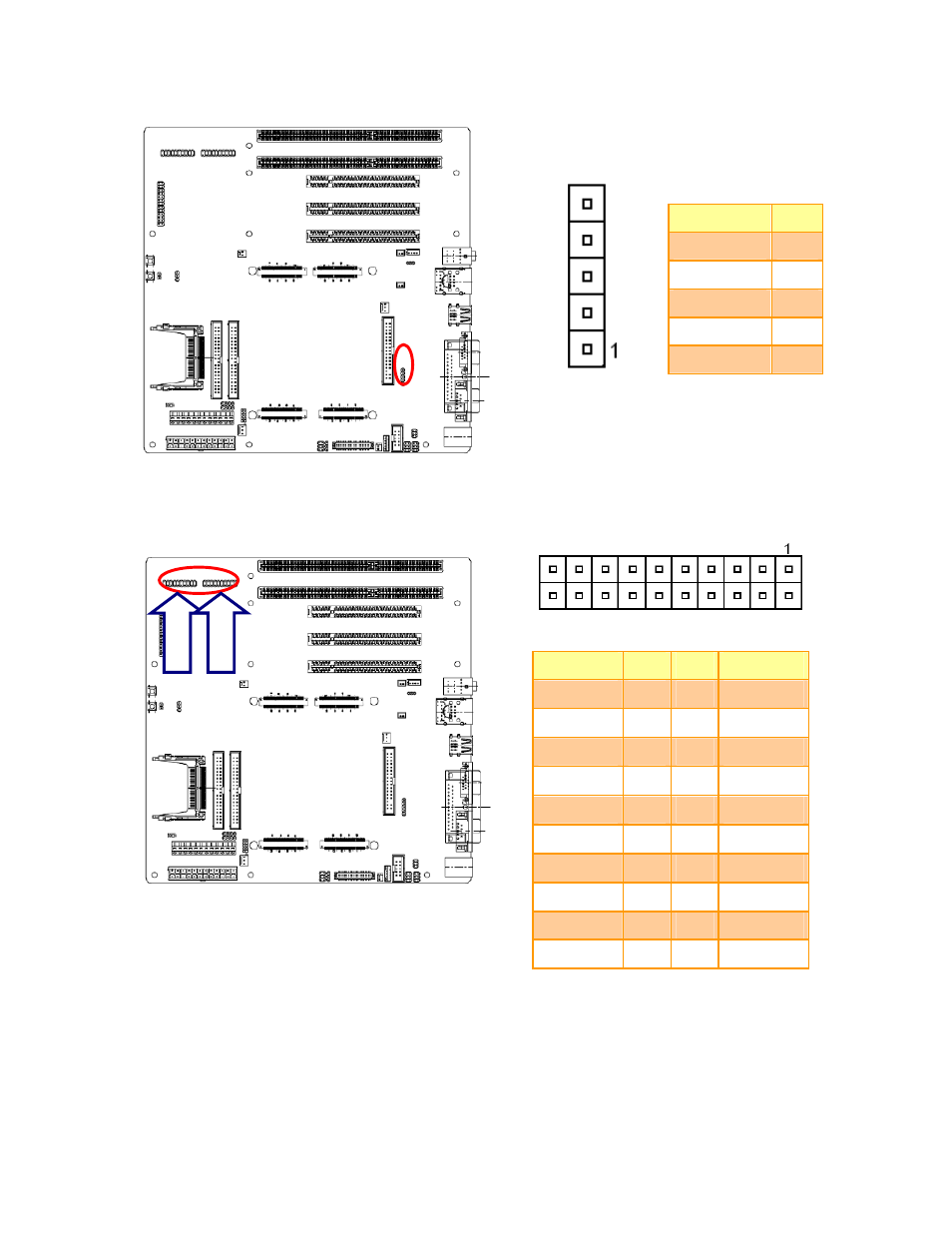

2.3.23 IrDA Connector (JIR1)

Signal

PIN

IRTX

5

GND

4

IRRX

3

NC

2

+5V

1

2.3.24 General Purpose I/O Connector (JDIO1/JDIO2)

Signal

PIN

PIN

Signal

DIO0/GPO0

1

2

DIO10/GPI0

DIO1/GPO1

3

4

DIO11/GPI1

DIO2/GPO2

5

6

DIO12/GPI2

DIO3/GPO3

7

8

DIO13/GPI3

DIO4/GPO4

9

10

DIO14/GPI4

DIO5/GPO5

11

12

DIO15/GPI5

DIO6/GPO6

13

14

DIO16/GPI6

DIO7/GPO7

15

16

DIO17/GPI7

SMBCLK

17

18

SMBDAT

GND

19

20

+5V

J

D

IO

2

J

D

IO

1
