EQM-CDV
44 EQM-CDV User ’s Manual
UHCI #1 (ports 0 and 1)
Disabled
Enabled[Default]
Control the USB UHCI (USB1.1)
functions. Disable from highest to
lowest controller. UHCI #2 (ports 2 and 3)
Disabled
Enabled[Default]
UHCI #3 (ports 4 and 5)
Disabled
Enabled[Default]
UHCI #4 (ports 6 and 7)
Disabled
Enabled[Default]
USB 2.0(EHCI) Support
Disabled
Enabled[Default]
Enable or Disable USB 2.0
(EHCI) Support.
SMBus Controller
Disabled
Enabled[Default]
Enable or Disable OnChip SMBus
Controller.
SIRQ Logic
Disabled
Enabled[Default]
Enable or Disable SIRQ logic
SIRQ Mode
Quiet
Continuous[Default]
Set SIRQ mode.

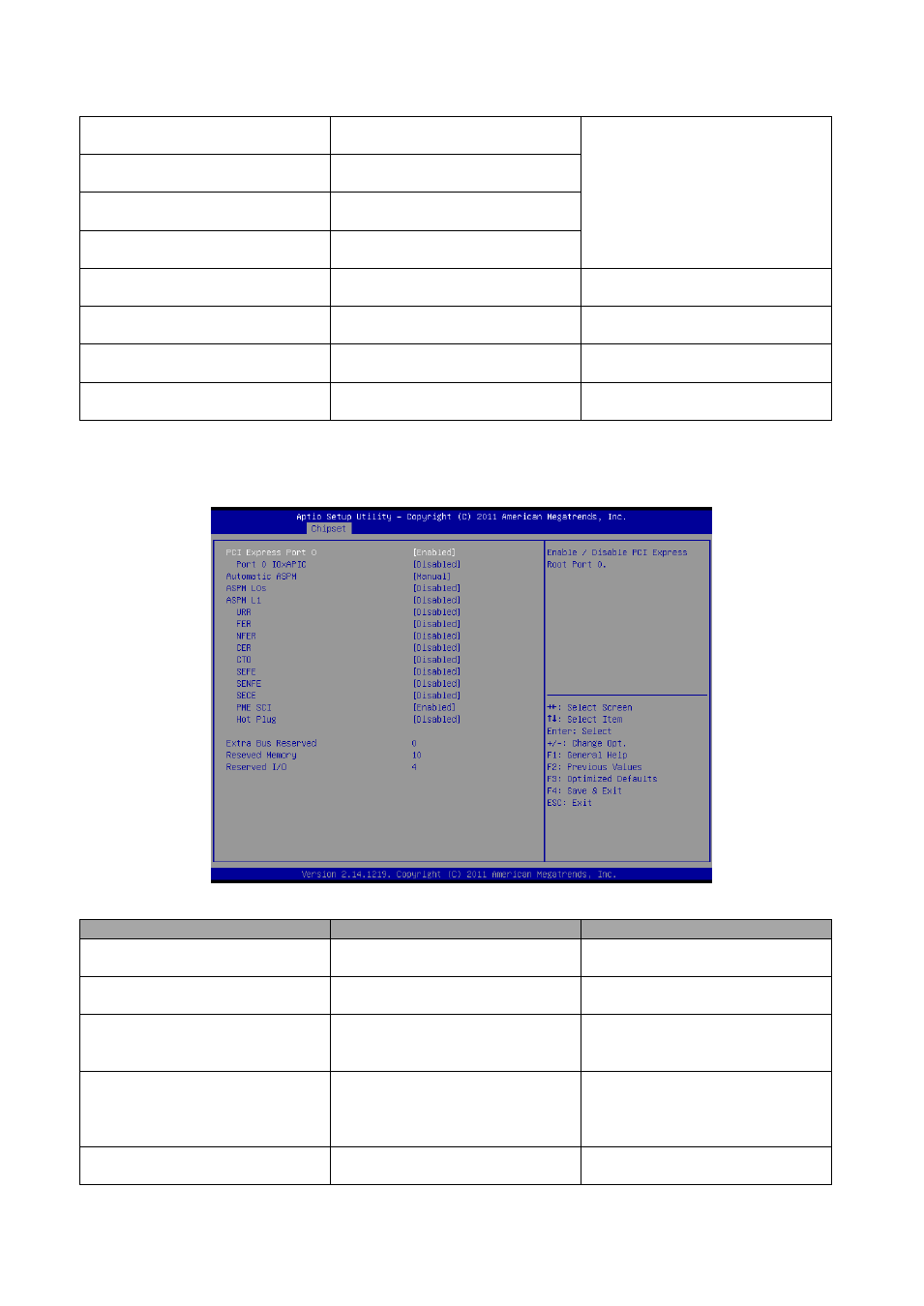

3.6.3.2.2 PCI Express Root Port 0
Item Option Description
PCI Express Port 0
Disabled
Enabled[Default]
Enable / Disable PCI Express
Root Port 0.
Port 0 IOxAPIC
Disabled[Default]
Enabled
Enable / Disable PCI Express
Root Port 0 I/O APIC
Automatic ASPM
Manual[Default]
Auto
Automatically enable ASPM
based on reported capabilities
and known issues
ASPM L0s
Disabled[Default]
Root Port Only
End point Port Only
Both Root And Endpoint Ports
Enable PCIe ASPM L0s
ASPM L1
Disabled[Default]
Enabled
Enable PCIe ASPM L1
