LCD Panel Type
VBIOS Default
640x480 18/1
800x600 18/1
1024x768 18/1[Default]
1024x768 24/1
1366x768 24/1
1280x800 18/1
1024x600 18/1
Select LCD panel used by Internal
Graphics Device by selecting the
appropriate setup item.
Backlight Control
PWM Inverted
PWM Normal[Default]
Back Light Control Setting.
Fixed Graphics Memory Size
128 MB[Default]
256 MB
Configure Fixed Graphics
Memory Size.
Backlight Control Support
VBIOS-Default[Default]
BLC&BIA Disabled
BLC Enabled
Backlight Control Configuration.

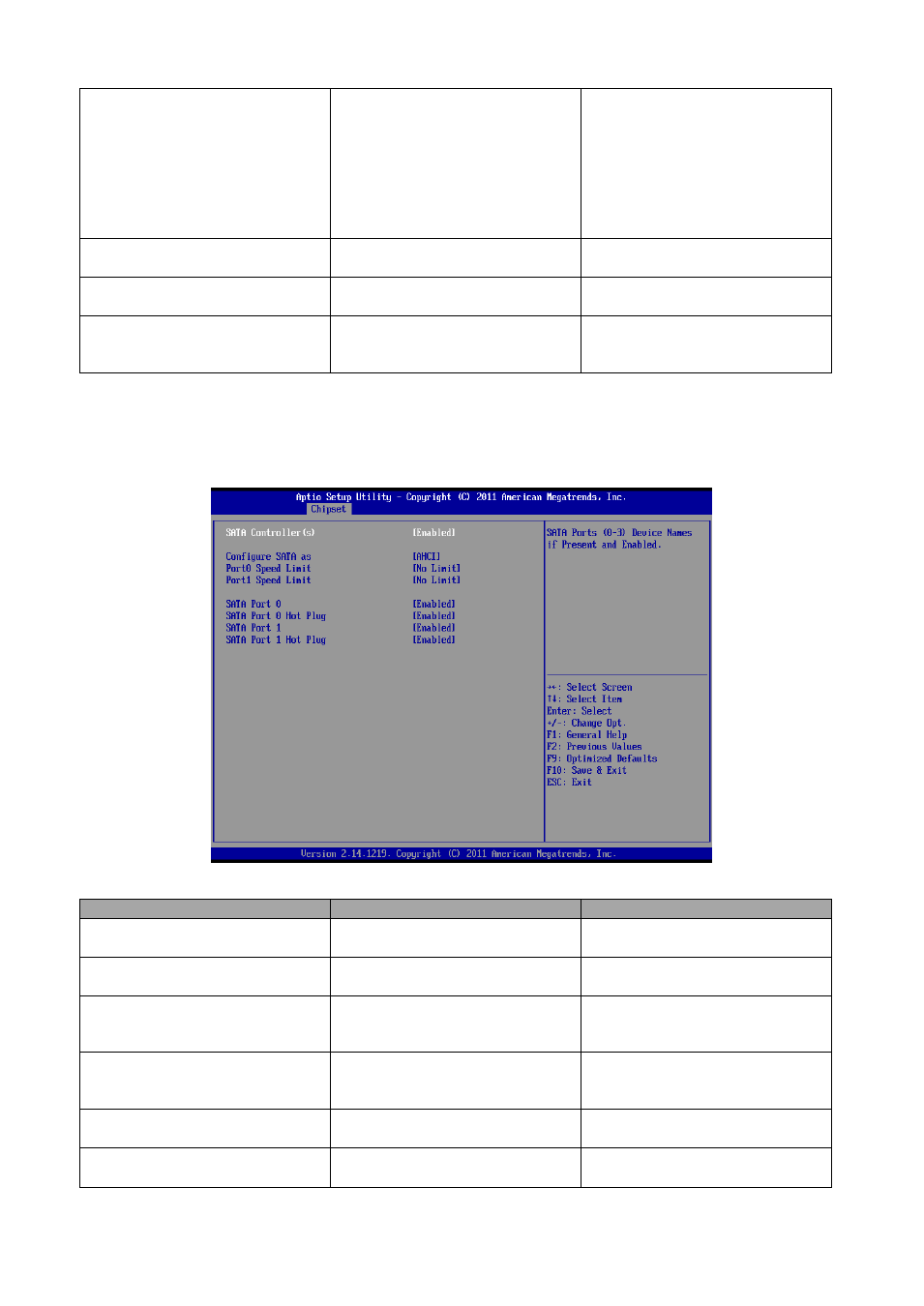

3.6.3.2 South bridge
Item Option Description
SATA Controller(s)
Disabled
Enabled[Default]
SATA Ports (0-3) Device Names if
Present and Enabled.
Configure SATA as
IDE,
AHCI[Default]
Select a configuration for SATA
Controller.
Port0 Speed Limit
No Limit[Default],
GEN1 Rate
GEN2 Rate Select Port0 AHCI Speed Limit.
Port1 Speed Limit
No Limit[Default],
GEN1 Rate
GEN2 Rate Select Port1 AHCI Speed Limit.
SATA Port 0
Enabled[Default],
Disabled
Enable or Disable SATA Port.
SATA Port 0 Hot Plug
Enabled[Default],
Disabled
Designates this port as Hot
Pluggable.
