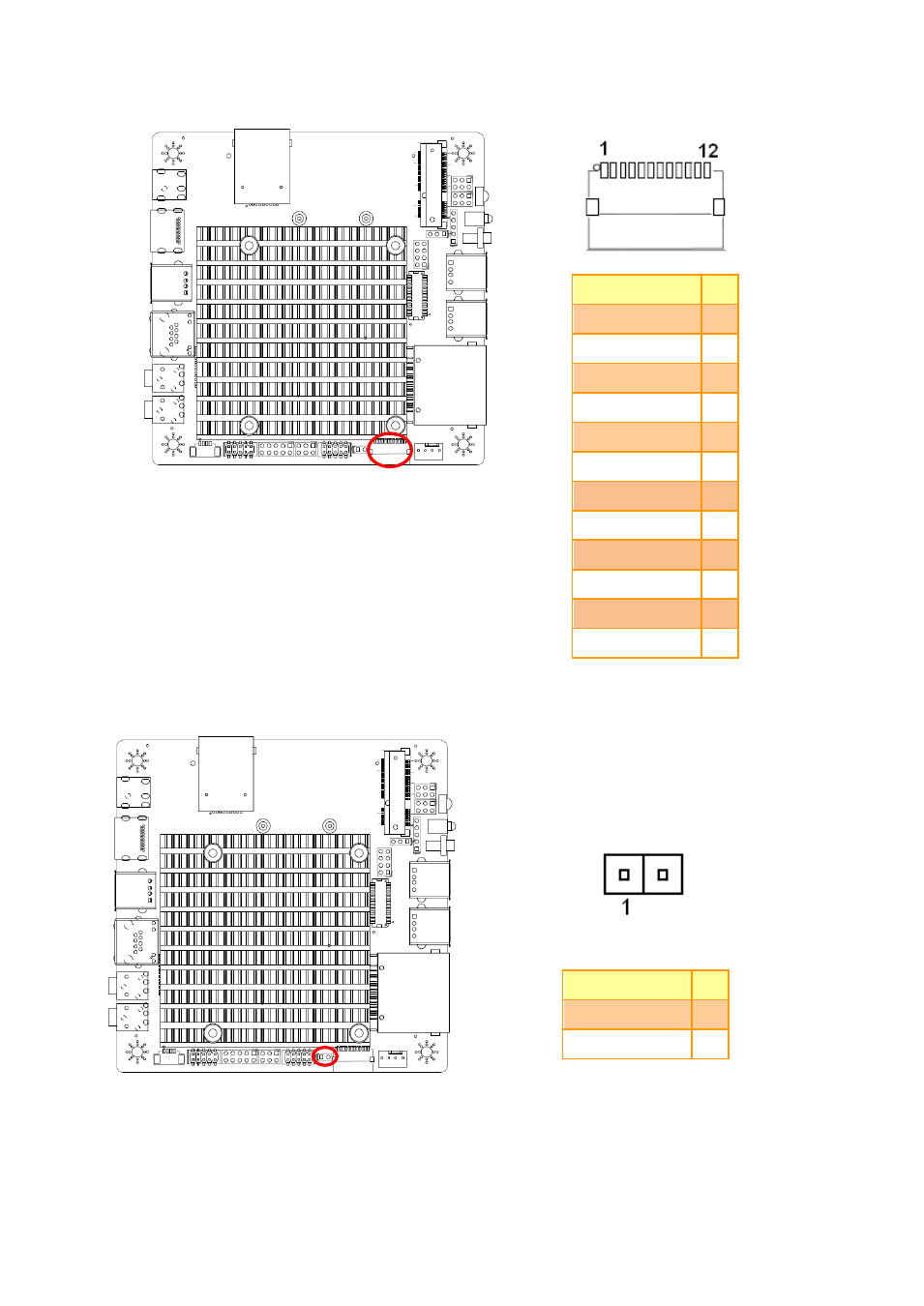

2.4.11 SATA AUX Board (SATACON2)

Note:

To SATA AUX board.

Signal

PIN

NC

1

+5V

2

+5V

3

+5V

4

GND

5

GND

6

RXP

7

RXN

8

GND

9

TXN

10

TXP

11

GND

12

2.4.12 Reset connector (J_RST)

Signal

PIN

Reset

1

GND

2
