ENX-CDD User ’s Manual
16 ENX-CDD User ’s Manual

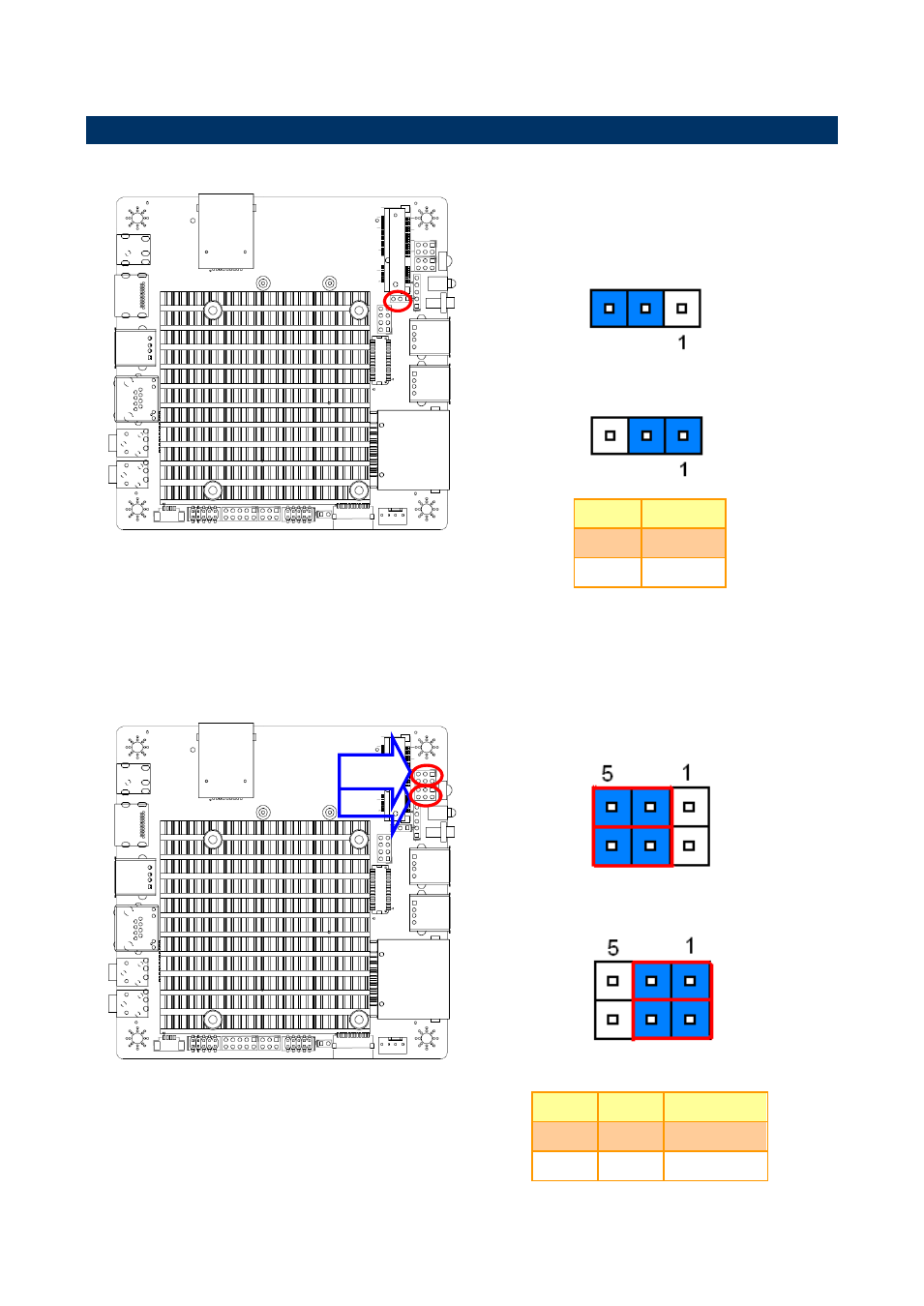

2.4 Setting Jumpers & Connectors
2.4.1 LVDS voltage (JP1)
* Default
VCC5*
VCC3
Pin Define
1-2 VCC3
2-3 VCC5
2.4.2 mSATA/Mini PCIe function Jumper (JS1/JS2)
* Default
MINIPCIE*
M-SATA
Pin Pin Define
1-3 2-4 M-SATA
3-5 4-6 MINIPCIE
JS1
JS2
