ENX-CDD User ’s Manual
22 ENX-CDD User ’s Manual

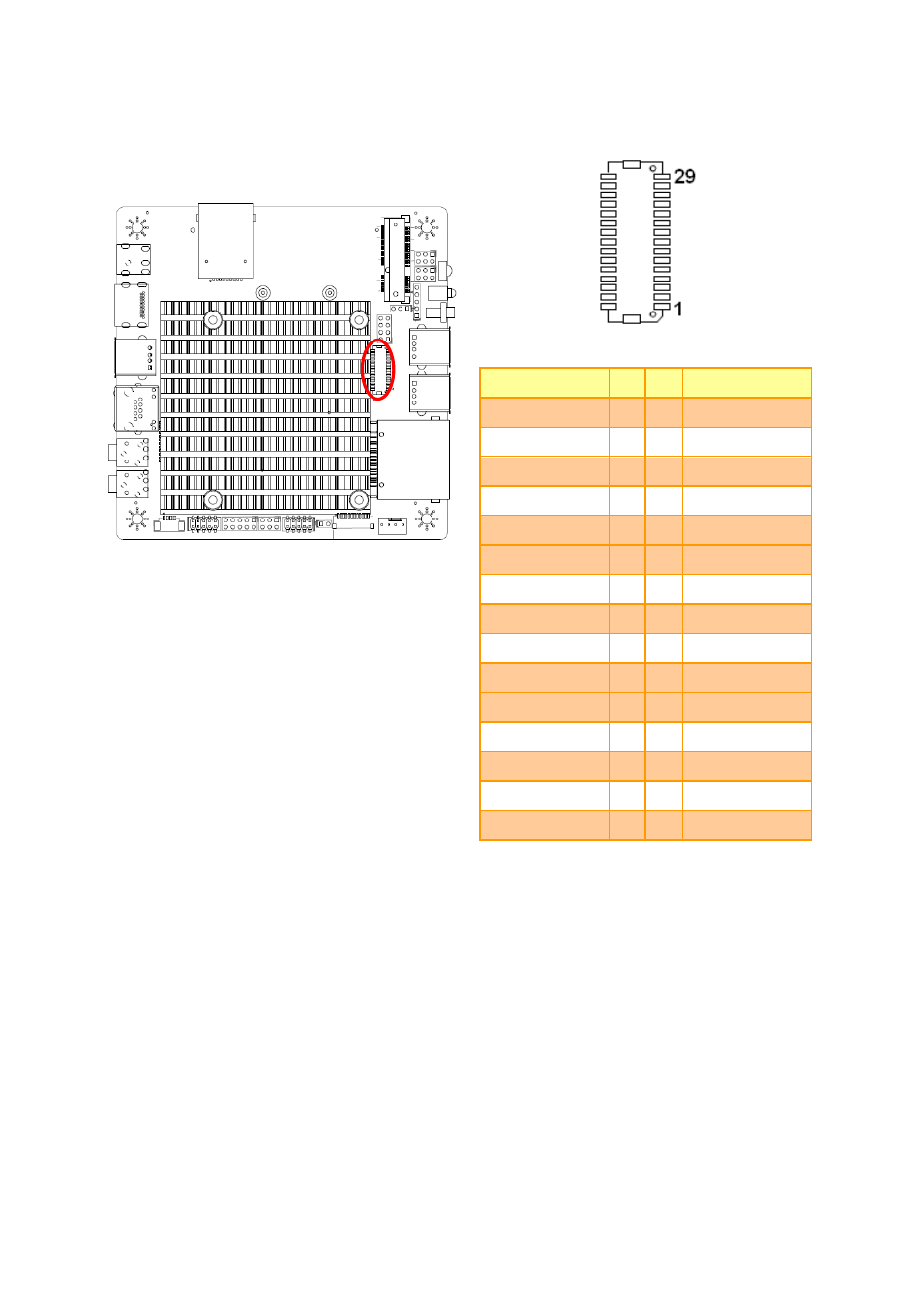

2.4.13 LVDS connector (LVDS1)
Note:
Recommend connector.
On board LVDS connector: CSI-1171-30.
Matting connector:KB901-B30H.
Signal PIN PIN Signal
VDD 30 29 VDD
VDD 28 27 VDD
DDC_CLK 26 25 GND
DDC_DATA 24 23 DATA3-
GND 22 21 DATA3+
CLKN 20 19 GND
CLKP 18 17 DATA2-
GND 16 15 DATA2+
GND 14 13 GND
GND 12 11 GND
DATA1- 10 9 DATA0-
DATA1+ 8 7 DATA0+
GND 6 5 GND
GND 4 3 PWM
GND 2 1 GND
