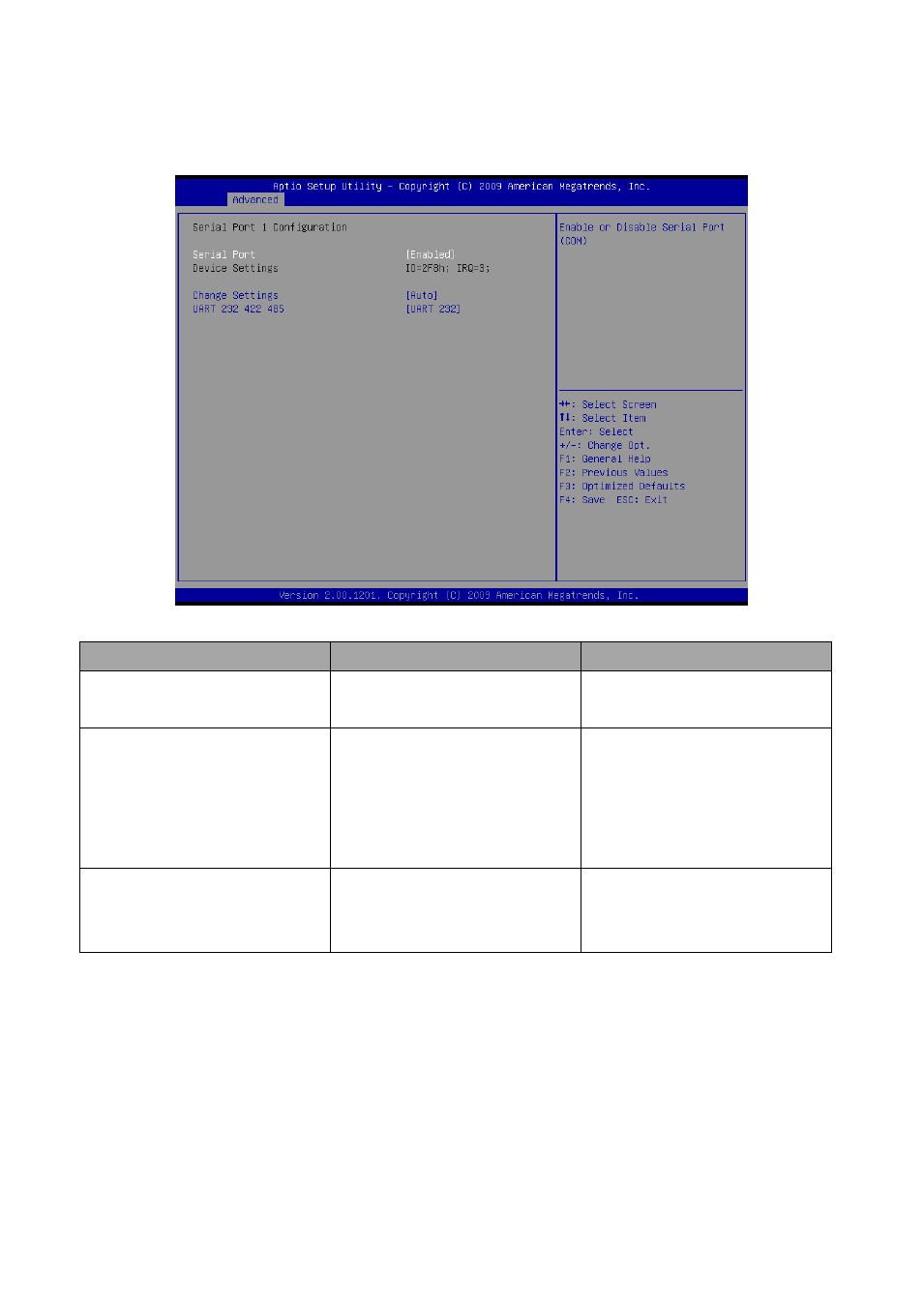

3.6.2.10.2 Serial Port 1 Configuration
Item Option Description
Serial Port
Enabled,
Disabled
Use the Serial port option to
enable or disable the serial port.
Change Settings
IO=3F8h; IRQ=4,
IO=3F8h; IRQ=3,4,5,6,7,10,11,12
IO=2F8h; IRQ=3,4,5,6,7,10,11,12
IO=3E8h; IRQ=3,4,5,6,7,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,10,11,12
Use the change Settings option to
change the serial port IO port
address and interrupt address.
UART 232 422 485
UART 232,
UART 422,
UART485
Change the Serial Port as RS232/
422/ 485.
