ECM-QM57
ECM-QM57 User ’s Manual 36
2.5
Audio / USB Daughter Board User’s Guide

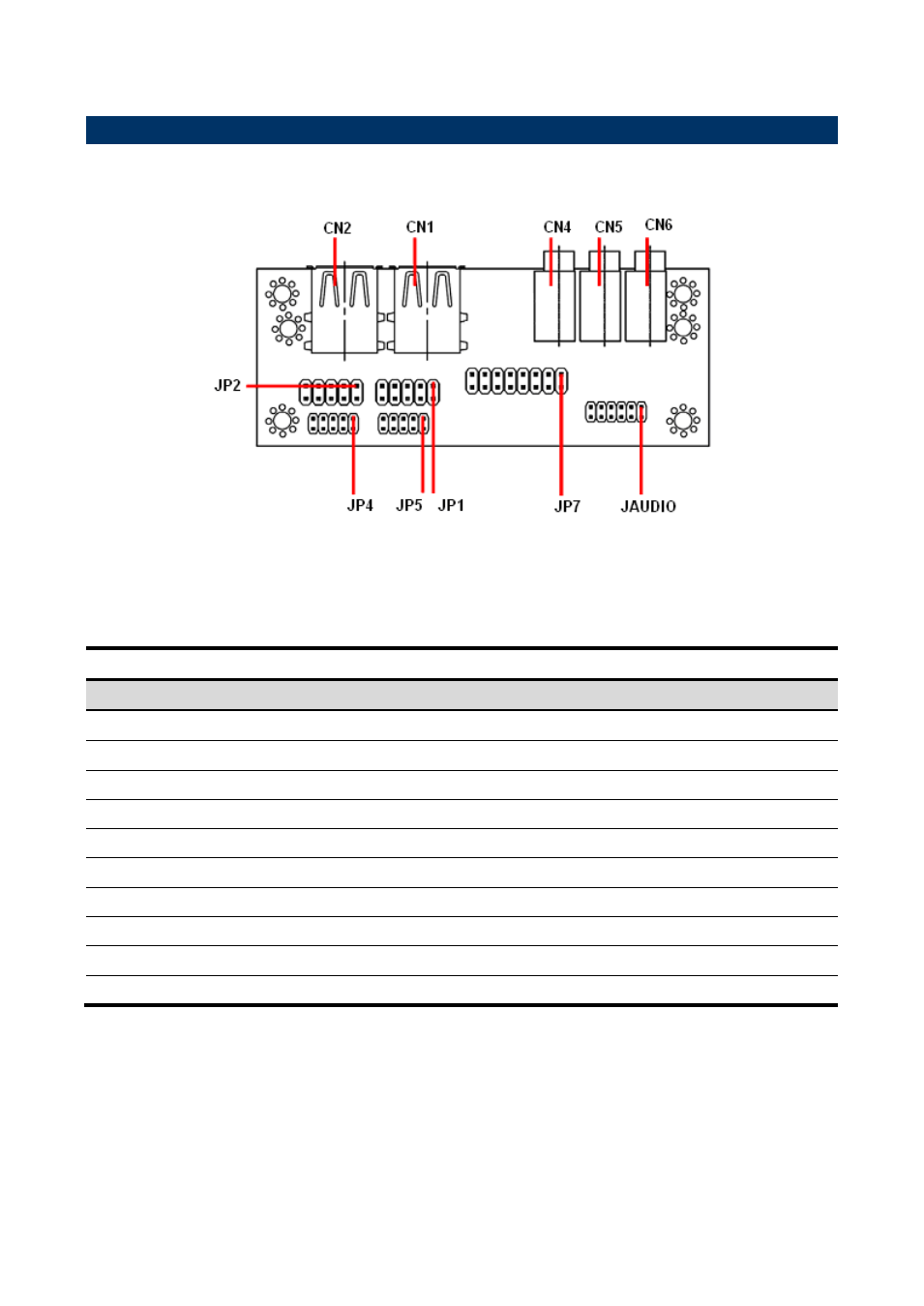

2.5.1 Jumper and Connector Layout
2.5.2 Jumper and Connector List
Connectors
Label Function Note
CN1, CN2 USB connector
CN4 Line out connector Phone Jack
CN5 Line in connector Phone Jack
CN6 Mic in connector Phone Jack
JAUDIO Audio connector 6 x 2 header, pitch 2.0mm
JP1 2.54mm USB connector 5 x 2 header, pitch 2.54mm
JP2 2.54mm USB connector 5 x 2 header, pitch 2.54mm
JP4 2.0mm USB connector 5 x 2 header, pitch 2.0mm
JP5 2.0mm USB connector 5 x 2 header, pitch 2.0mm
JP7 TV / Audio connector 8 x 2 header, pitch 2.54mm
