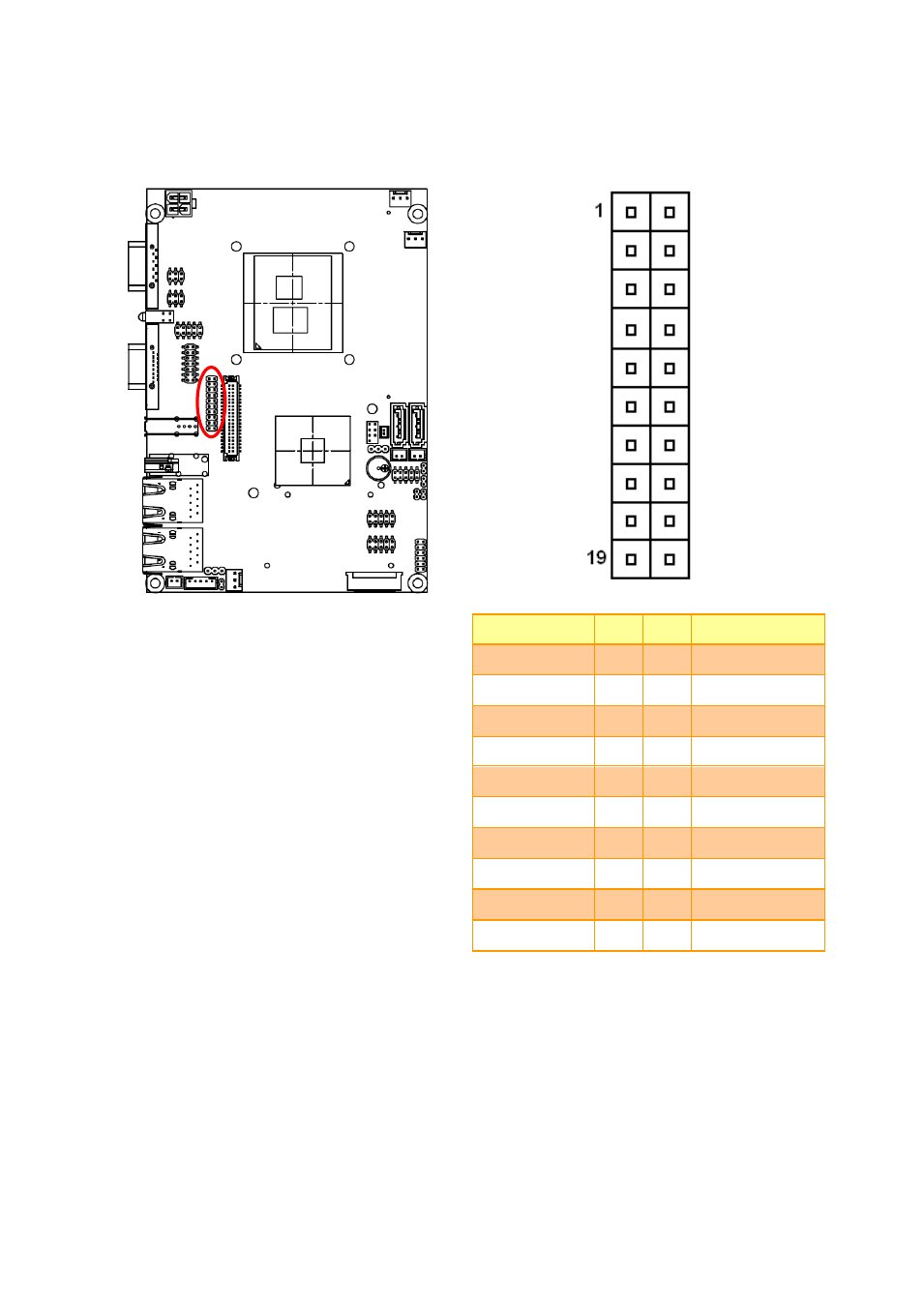

2.4.16 General purpose I/O connector (JDIO)

Signal

PIN

PIN

Signal

DIO_GP20

1

2

DIO_GP10

DIO_GP21

3

4

DIO_GP11

DIO_GP22

5

6

DIO_GP12

DIO_GP23

7

8

DIO_GP13

DIO_GP24

9

10

DIO_GP14

DIO_GP25

11

12

DIO_GP15

DIO_GP26

13

14

DIO_GP16

DIO_GP27

15

16

DIO_GP17

SMBCLK_MAIN

17

18

SMBDATA_MAIN

GND

19

20

+5V
