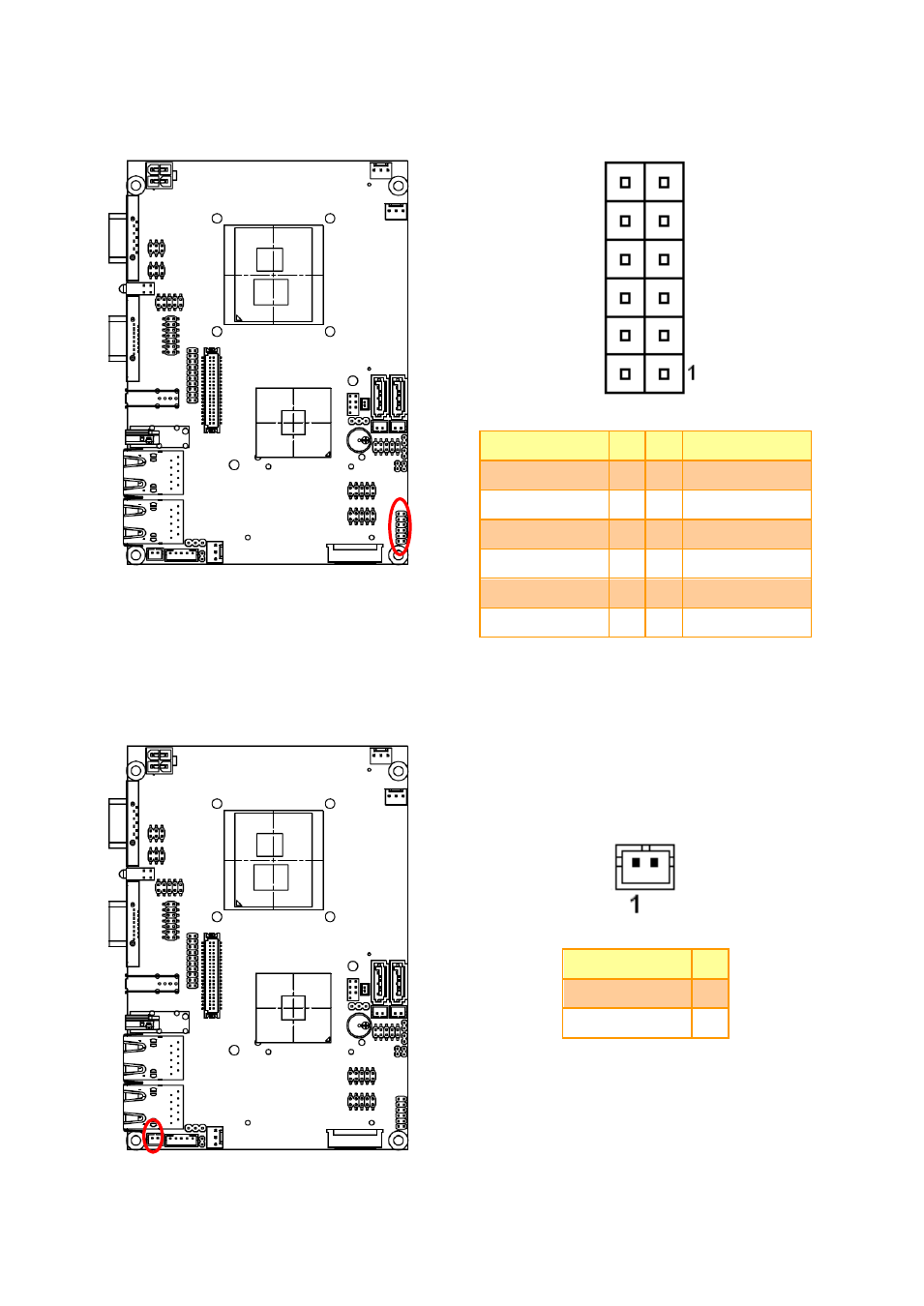

2.4.9 Audio connector (JAUDIO1)

Signal

PIN PIN

Signal

GND

12

11

MIC1_JD

LIN1_JD

10

9

FRONT_JD

MIC1_L

8

7

MIC1_R

LIN1_L

6

5

LIN1_R

GND

4

3

GND

FRONT_L

2

1

FRONT_R

2.4.10 +12V power Connector (JBKL1)

Signal

PIN

+12V

1

GND

2
