User ’s Manual
ECM-QM57 User ’s Manual 53
3.6.2.8.4 Controller Timeout
The timeout values to control bulk interrupt transfer.
The options are: 1, 5, 10, 20 sec.
3.6.2.8.5 Mass Storage Devices
This item allows you to set up mass storage devices.
The choices: USB 2.0 Flash Disk 1100.

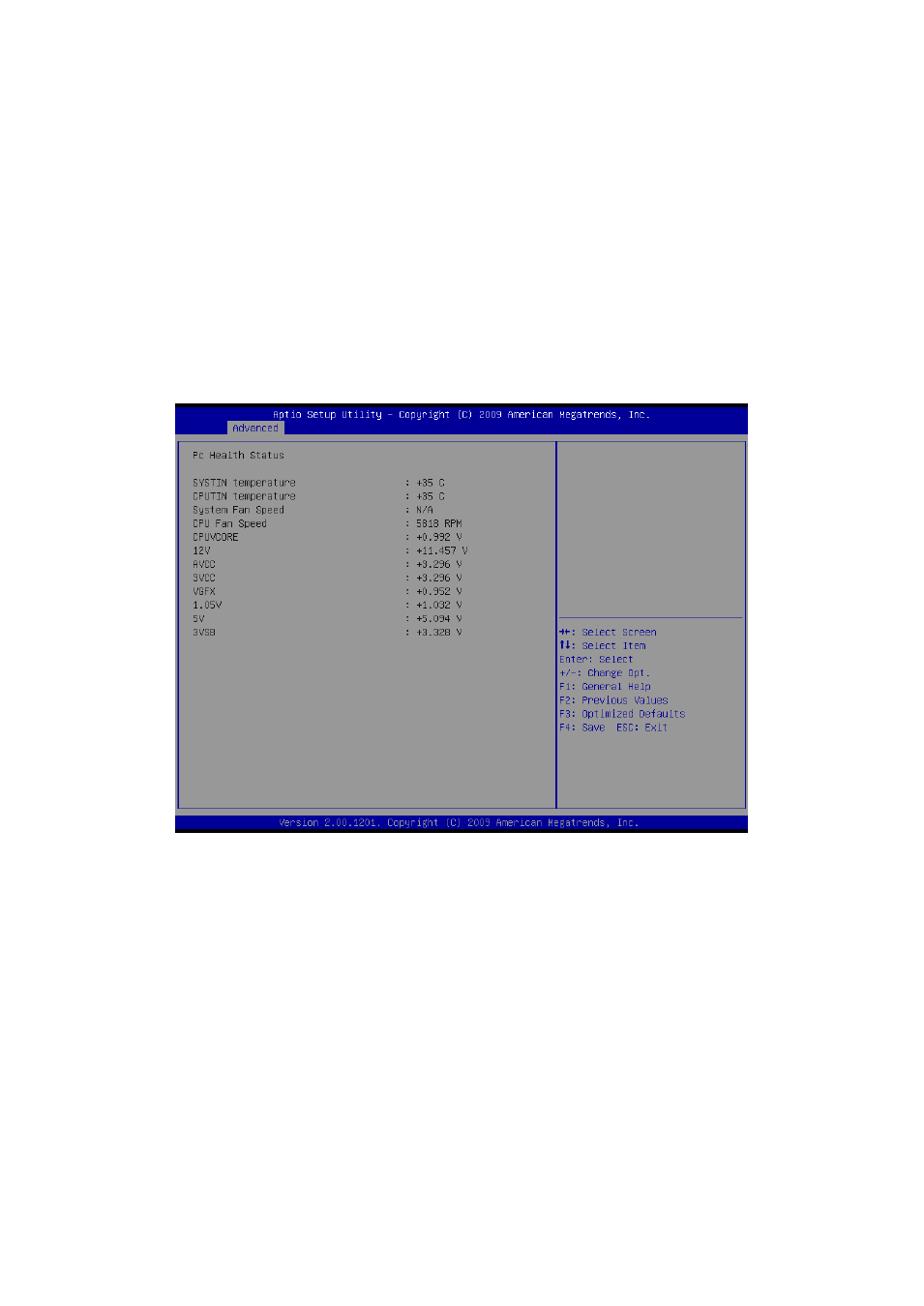

3.6.2.9 H/W Monitor
The H/W Monitor shows the operating temperature, fan speeds and system voltages.
Temperature
 SYSTIN temperature
 CPUTIN temperature
Fan speed
 System Fan speed
 CPU Fan speed
Voltage
 CPUVCORE
 12V
 AVCC
 3VCC
 VGFX
 1.05V
 5V
 3VSB
