ECM-QM57
ECM-QM57 User ’s Manual 34

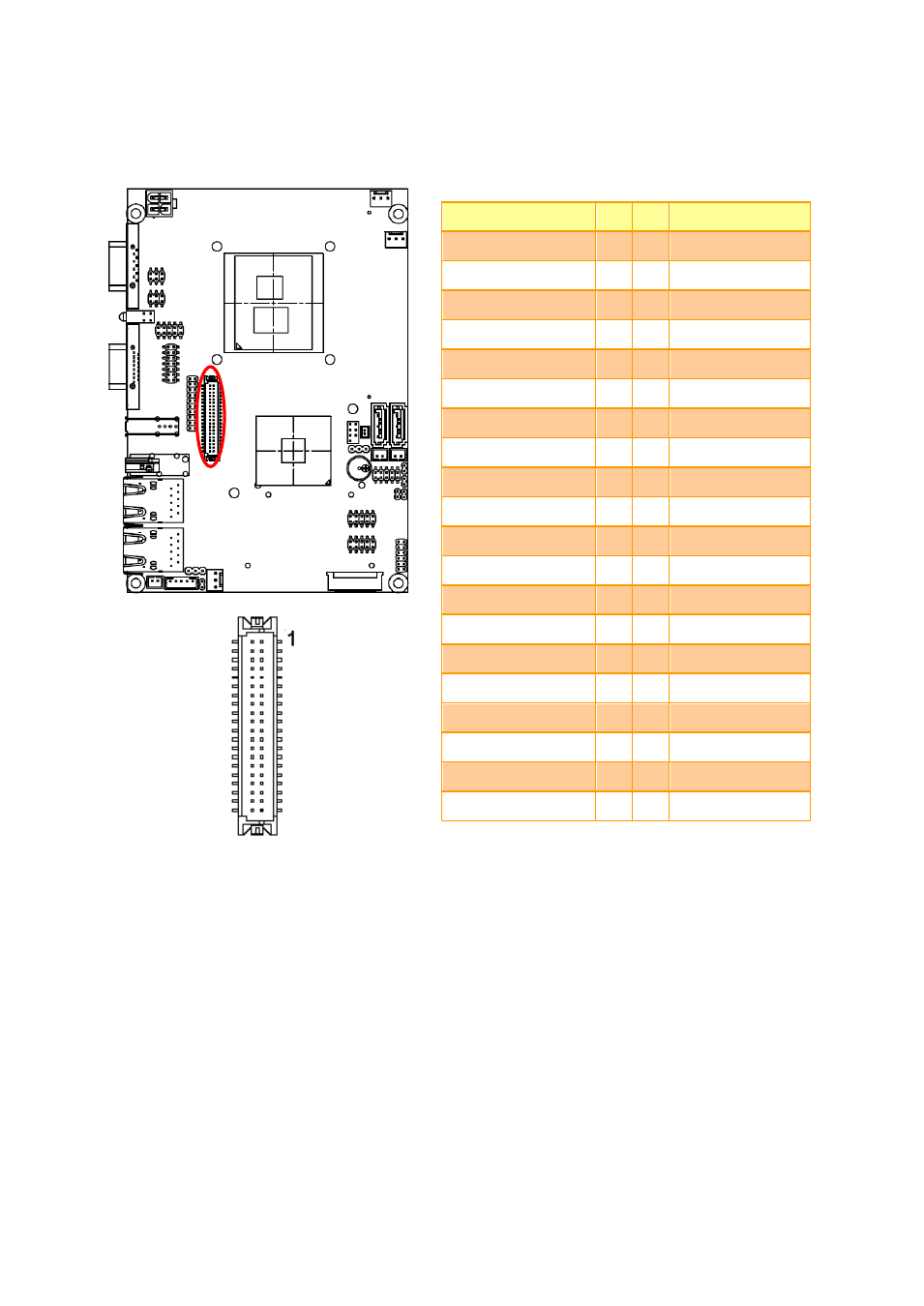

2.4.19 LVDS connector (JLVDS1)
Signal PIN PIN Signal
+5V 2 1 +3.3V
+5V 4 3 +3.3V
LVDS_DDC_DATA 6 5 LVDS_DDC_CLK
GND 8 7 GND
LVDSA_DATA0 10 9 LVDSA_DATA1
LVDSA_DATA0# 12 11 LVDSA_DATA1#
GND 14 13 GND
LVDSA_DATA2 16 15 LVDSA_DATA3
LVDSA_DATA2# 18 17 LVDSA_DATA3#
GND 20 19 GND
LVDSB_DATA0 22 21 LVDSB_DATA1
LVDSB_DATA0# 24 23 LVDSB_DATA1#
GND 26 25 GND
LVDSB_DATA2 28 27 LVDSB_DATA3
LVDSB_DATA2# 30 29 LVDSB_DATA3#
GND 32 31 GND
LVDSA_CLK 34 33 LVDSB_CLK
LVDSA_CLK# 36 35 LVDSB_CLK#
GND 38 37 GND
+12V 40 39 +12V
