2.4.4.1 Signal Description
–AT/ATX mode & Input power type

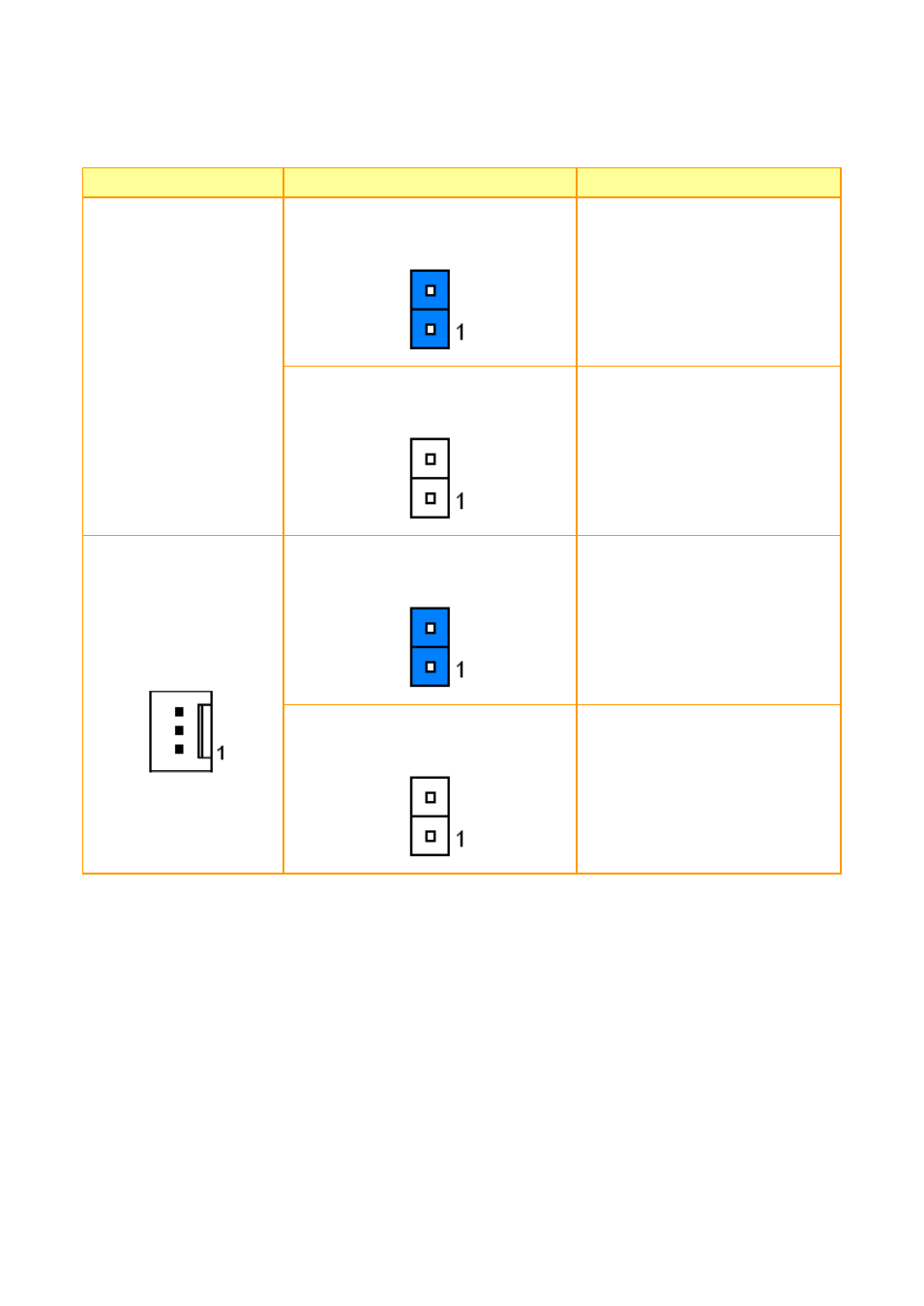

Input power type Power-ON Mode Description
AT Type
AT Mode
(PWR_MSEL1)
Use AT type power input, and
set the board in AT mode.
ATX Mode
(PWR_MSEL1)
Use AT type power input, and
set the board in ATX mode.
ATX Type
(PWR_SB)
AT Mode
(PWR_MSEL1)
Use ATX type power input,
and set the board in AT mode.
ATX Mode
(PWR_MSEL1)
Use ATX type power input,
and set the board in ATX
mode.
