ECM-BYT2 User’s Manual
32 ECM-BYT2 User ’s Manual

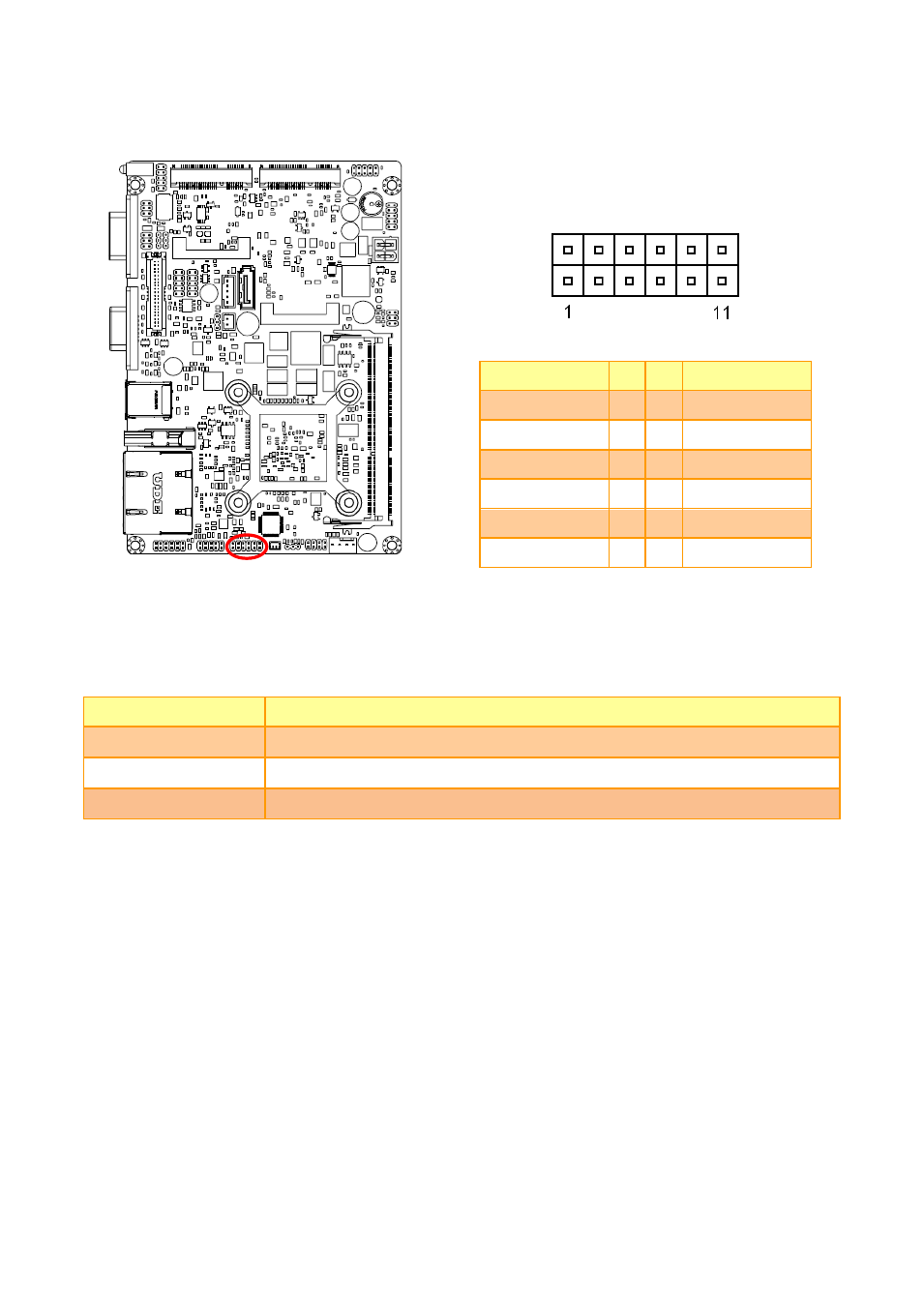

2.4.23 Audio connector (JAUDIO1)
Signal PIN PIN Signal
FRONT-R-OUT 1 2 FRONT-L-OUT
HD_AGND 3 4 HD_AGND
LINE1-R-IN 5 6 LINE1-L-IN
MIC1-R-IN 7 8 MIC1-L-IN
FRONT-JD 9 10 LINE1-JD
MIC1-JD 11 12 HD_AGND
2.4.23.1 Signal Description
– Audio connector (JAUDIO1)
Signal Signal Description
LINE1_JD AUDIO IN (LINE_RIN/LIN)sense pin
FRONT_JD AUDIO Out(ROUT/LOUT) sense pin
MIC1_JD MIC IN (MIC_RIN/LIN) sense pin
