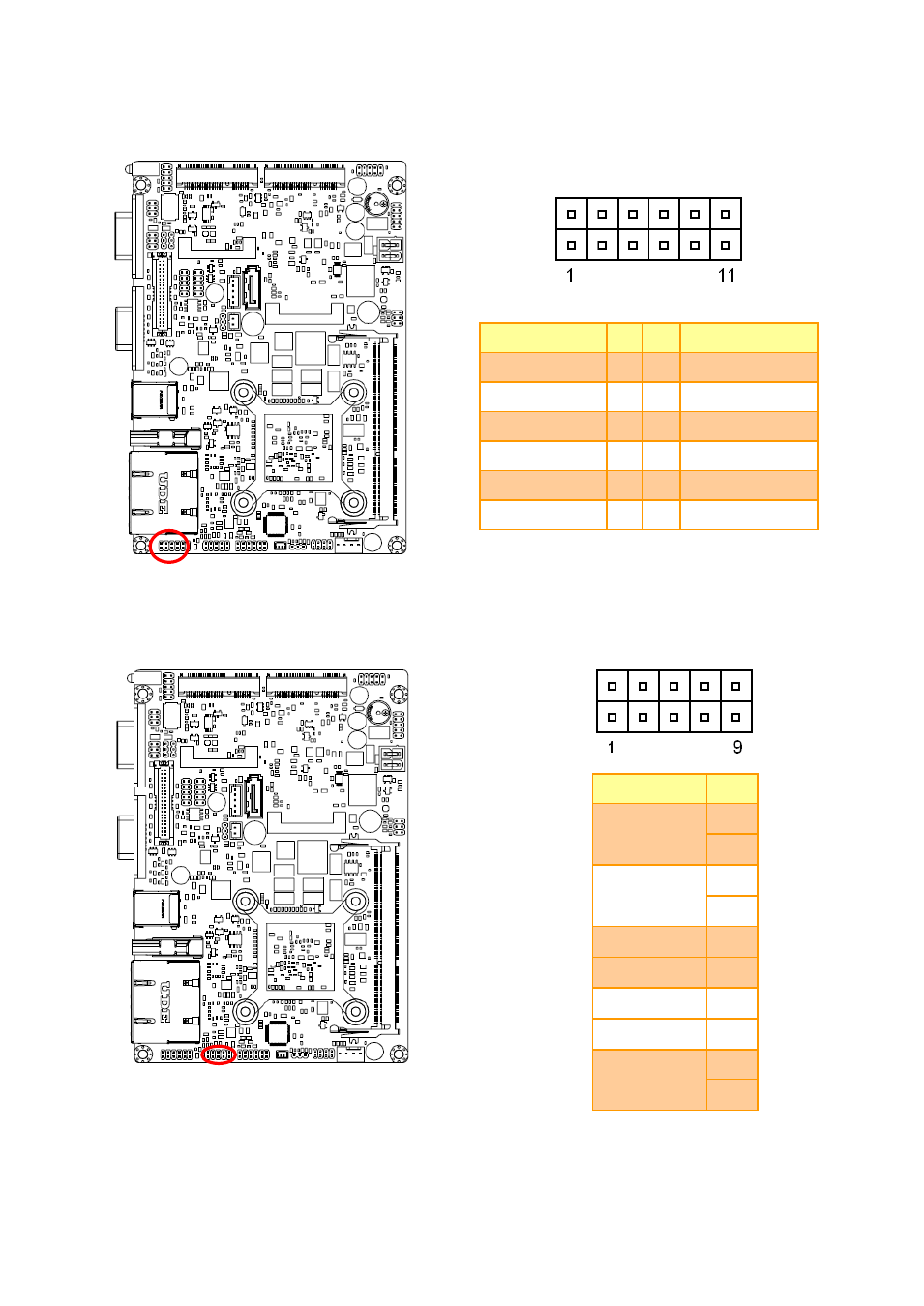

2.4.15 General purpose I/O connector (JDIO1)
Signal PIN PIN Signal
DIO_GP20 1 2 DIO_GP10
DIO_GP21 3 4 DIO_GP11
DIO_GP22 5 6 DIO_GP12
DIO_GP23 7 8 DIO_GP13
SMB_CLK_9555 9 10 SMB_DATA_9555
GND 11 12 +5V
2.4.16 Miscellaneous setting connector (JFP1)
Signal PIN
PWBT
1
2
RST#
3
4
PWR-LED+ 5
PWR-LED- 6
HDD-LED- 7
HDD-LED+ 8
CASE_OPEN#
9
10
