ECM-BYT2

User’s Manual

26 ECM-BYT2 User

’s Manual

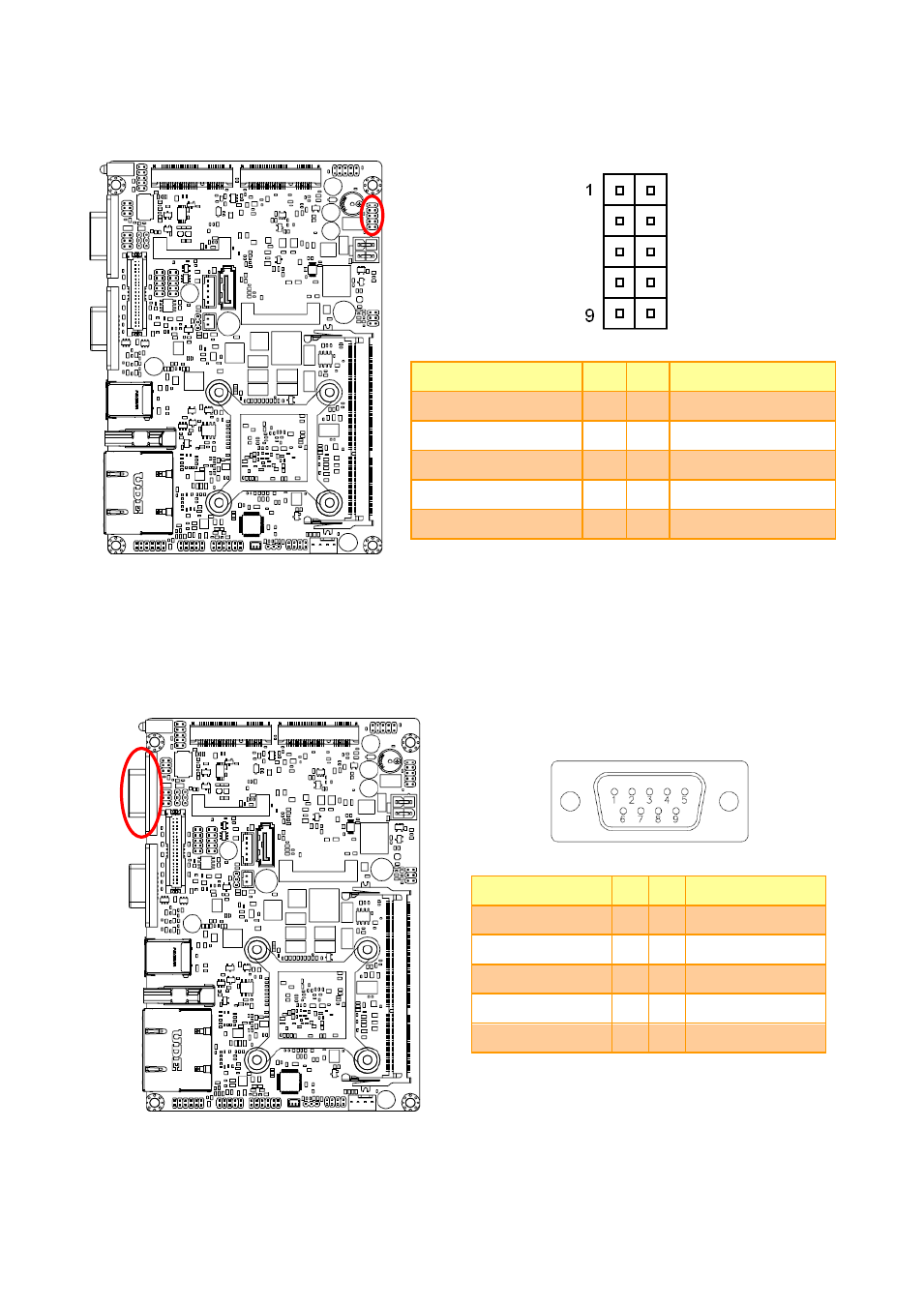

2.4.11 On-board header for USB2.0 (JUSB78)

Signal

PIN PIN

Signal

USBVCC5

1

2

GND

USB_HUB2_DN_R_3

3

4

GND

USB_HUB2_DP_R_3

5

6

USB_HUB2_DP_R_4

GND

7

8

USB_HUB2_DN_R_4

GND

9

10

USBVCC5

2.4.12 Serial port 1 connector (COM1)

Signal

PIN PIN

Signal

NDCDA#

1

6

NDSRA#

NRXDA

2

7

RTSA#

NTXDA

3

8

NCTSA#

NDTRA#

4

9

NRIA#

GND

5
