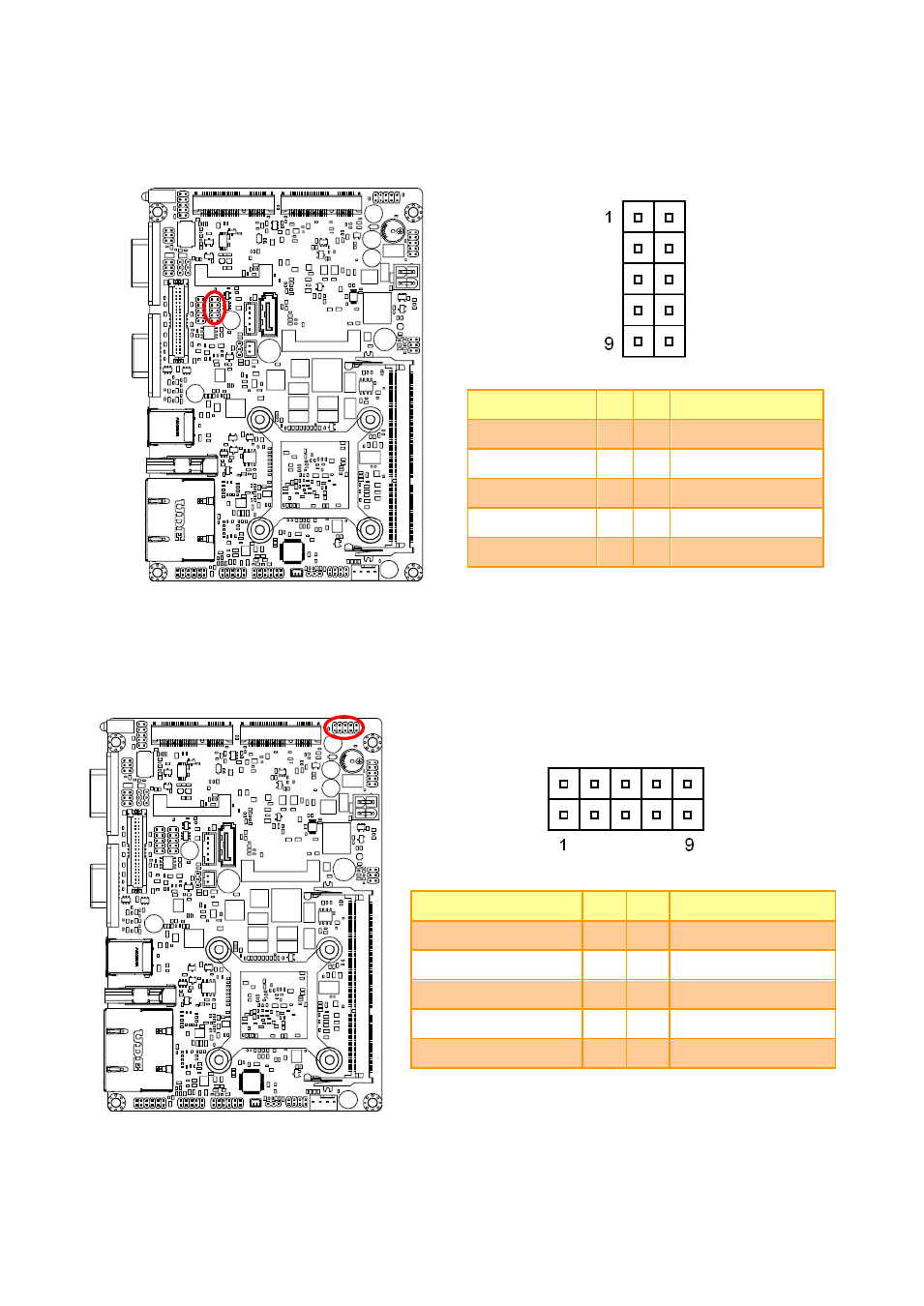

2.4.9 On-board header for USB2.0 (JUSB34)
Signal PIN PIN Signal
USBVCC3 1 2 GND
USB_DN_R_3 3 4 GND
USB_DP_R_3 5 6 USB_Touch_R_DP
GND 7 8 USB_Touch_R_DN
GND 9 10 USBVCC3
2.4.10 On-board header for USB2.0 (JUSB56)
Signal PIN PIN Signal
USBVCC4 1 2 GND
USB_HUB2_DN_R_1 3 4 GND
USB_HUB2_DP_R_1 5 6 USB_HUB2_DP_R_2
GND 7 8 USB_HUB2_DN_R_2
GND 9 10 USBVCC4
