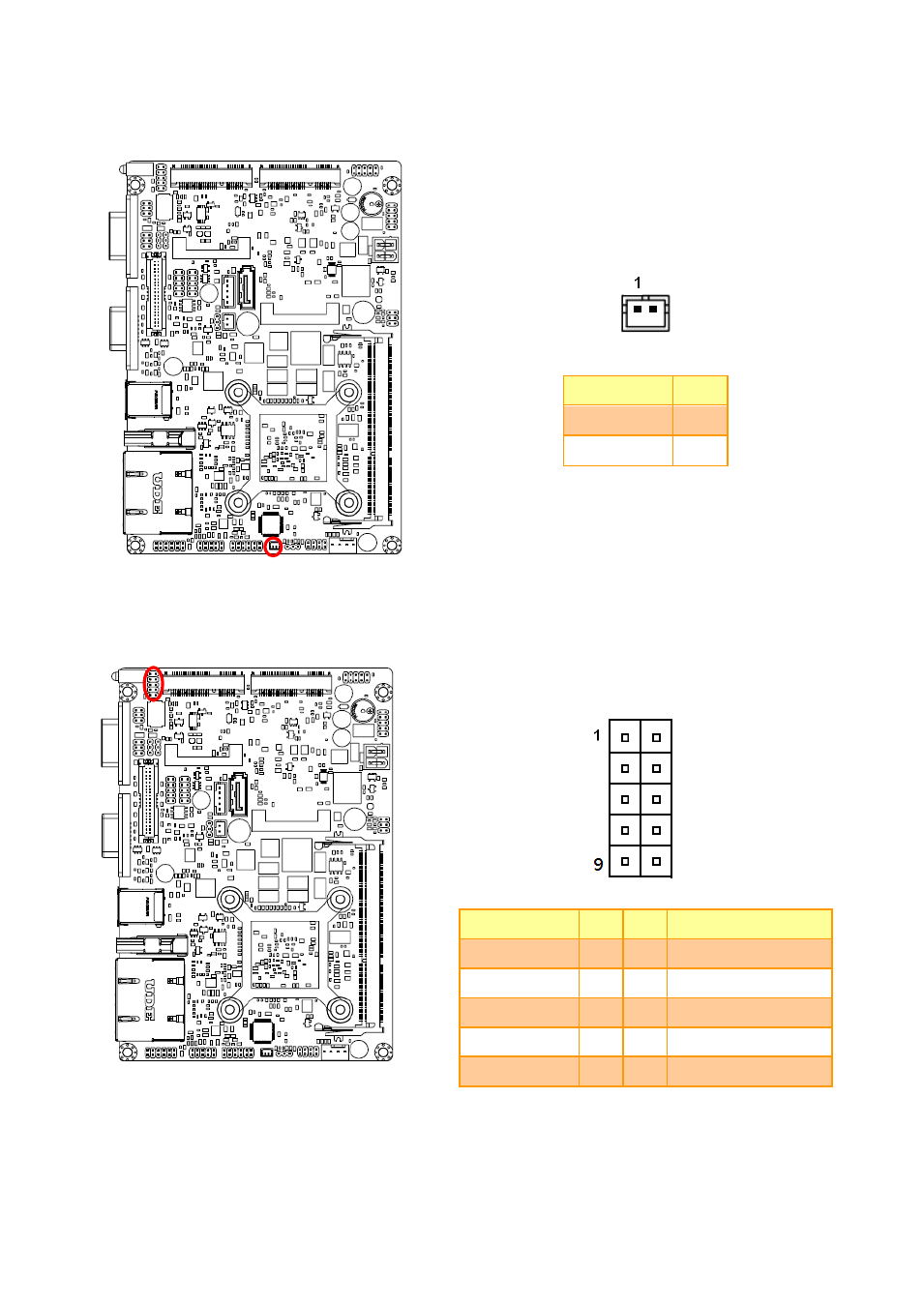

2.4.5 Battery connector (BT1)

Signal

PIN

+3.3VSB

1

GND

2

2.4.6 Low pin count connector (JLPC1)

Signal

PIN PIN

Signal

LPC_AD0

1

2

+3.3V

LPC_AD1

3

4

LPC_PORT80_RST#

LPC_AD2

5

6

LPC_FRAME#

LPC_AD3

7

8

LPC_PORT80_CLK

LPC_SERIRQ

9

10

GND
