Alwarerc ALware Quad Flyer Spider 500 ( Kit Only ) User Manual
Page 11

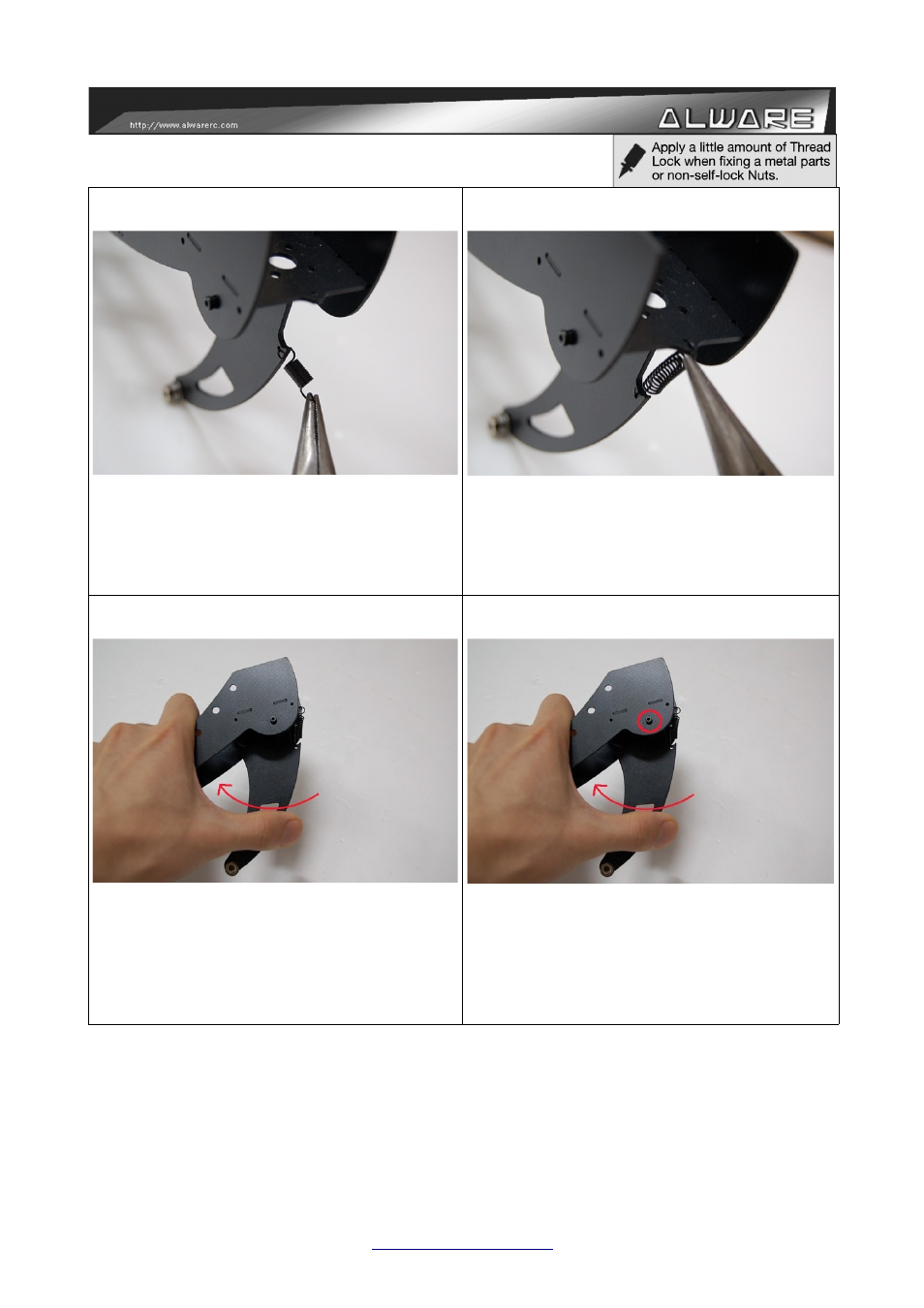

Step 25.
Hook one end of the Tension Spring to the
Landing Gear installed on the Spider Arm
Set. (Remarks: the hooking direction of the
Spring is unique and important! Please
follow the photo shown above.)
Step 26.
Hook the other end of the Tension Spring to
the small hole on the Motor Mount with the
aid of Pliers.
Step 27.
Now test the smoothness of the damping
function of the Landing Gear by applying
some forces according to the arrow's
direction. When the hand is released, the
Landing Gear should return back to it's
original direction.
Step 28.
If the Landing Gear does not return back to
it's original direction, adjust the tightness of
the M2x8 Hex Cap Screw circled on the
photo.
