Alwarerc Eagle Pro V3 Tilt & Pan Upgrade Pack with 360 Continuous Servo User Manual
Page 8

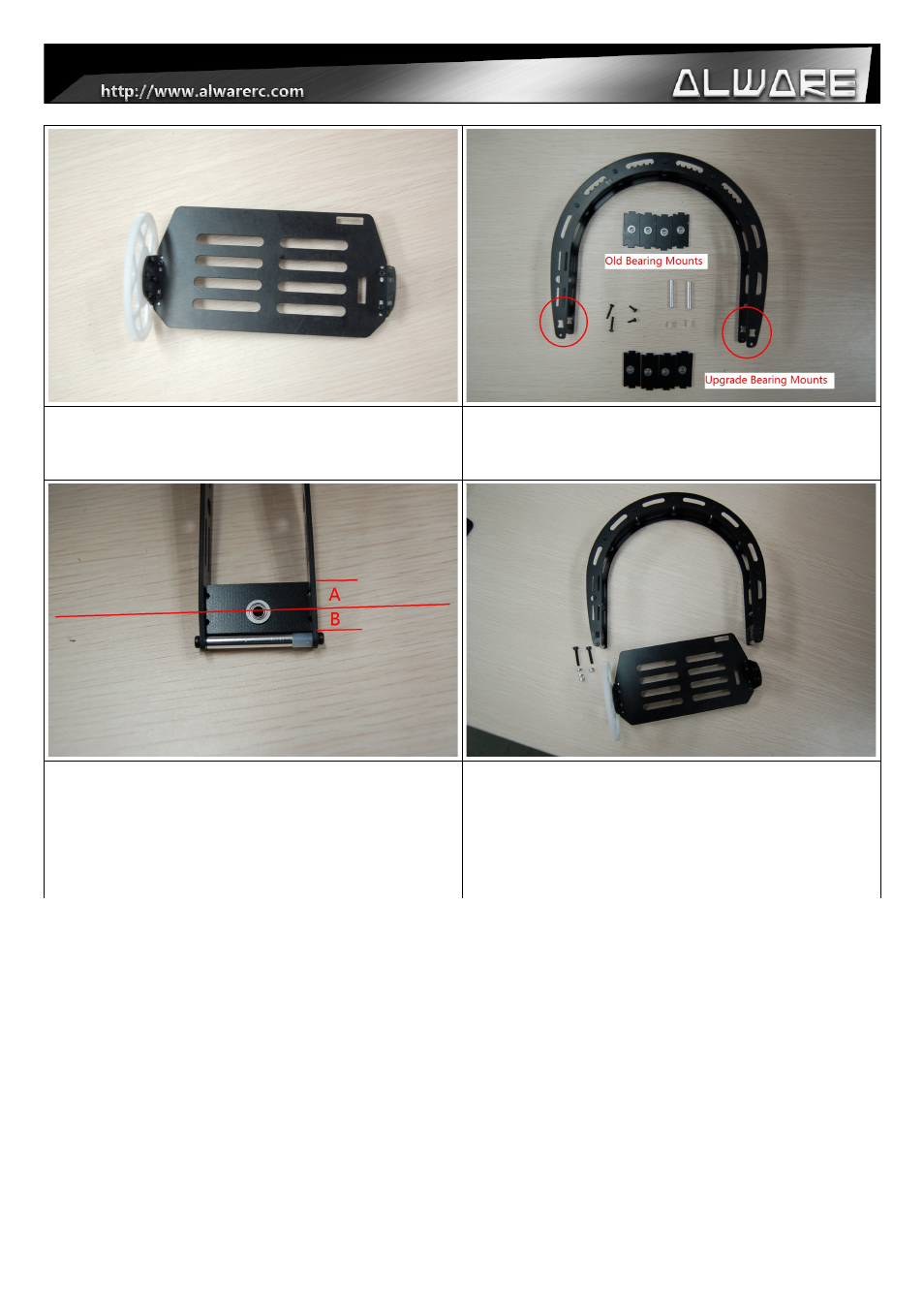

Step 5.
Completed Upgraded Can Stand Assembly.
Step 6.
Prepare the Upgrade Bearing Mounts and the Inner
Circle Assembly.
Step 7.
Install the Upgrade Bearing Mounts into the Inner
Circle Assembly. Follow the orientation as shown on
the photo. Distance A is larger than distance B.
(Apply
little amount of Thread Locker to the screws when
installing metal parts.)
Step 8.
Prepare the Inner Circle Assembly with upgrade
Bearing Mounts, Upgrade Cam Stand Assembly, 2pcs
3x5x2mm Spacer, 1pcs 3x5x4mm Spacer with M3
Screws.
Page 8 of 15
