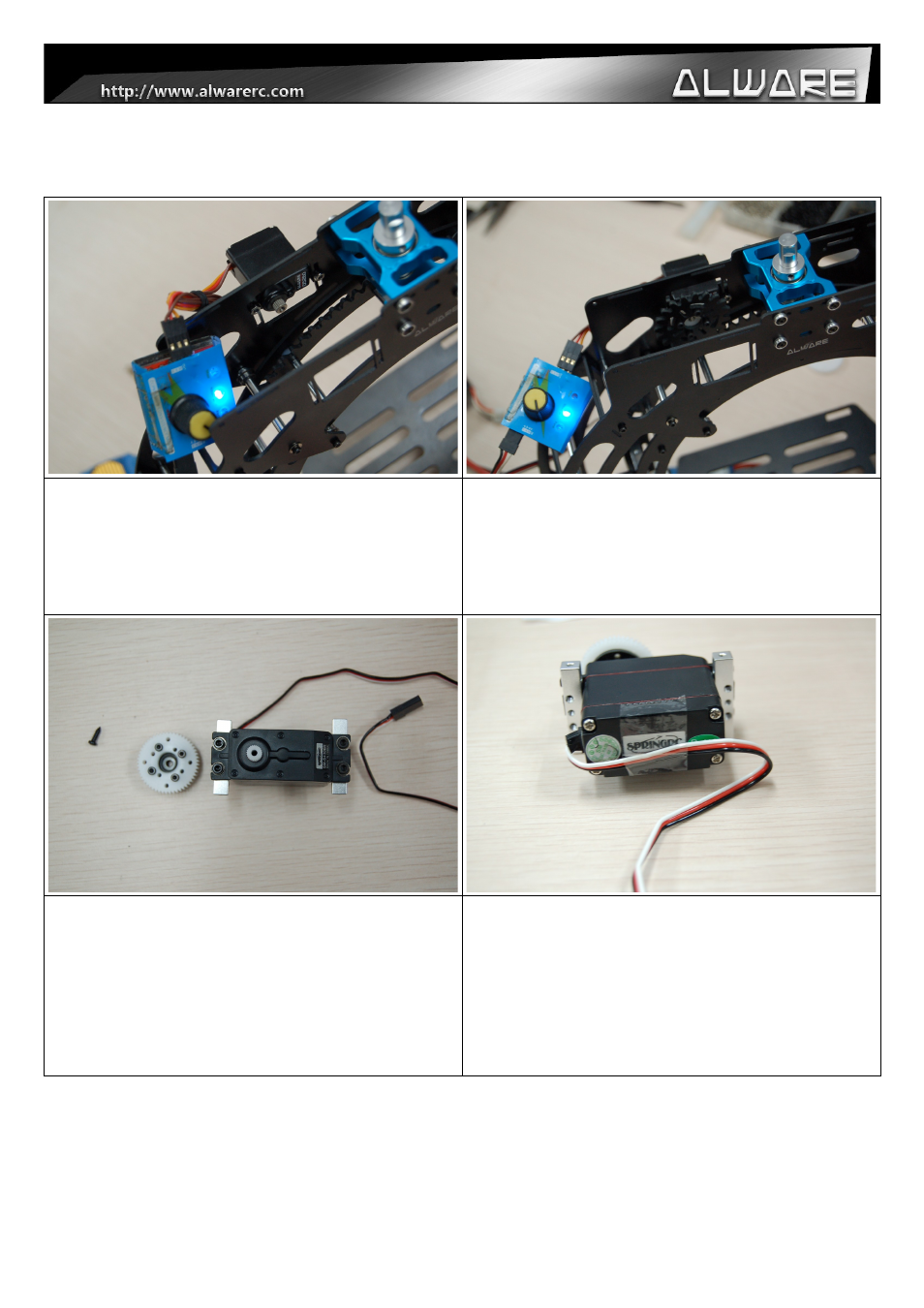

4.2 Assembly Steps – Servo Installation
Step 1.
Install the Roll Servo onto the Upgrade Outer Frame
using M2x6mm Hex Cap Screws and Nut.
(Apply little
amount of Thread Locker to the screws when
installing metal parts.)
Use a servo tester or receiver
to set the servo onto the center position.
Step 2.
Insert the Roll Servo gear onto the Roll Servo and
secure it with M2 servo screw.
Step 3.
Uninstall 2pcs Alu Square Rods from the old Pan
Servo and install onto the 360 Degree Continuous
Servo. And install the M0.5 Servo Horn Gear onto the
small servo horn from the 360 Degree Continuous
Servo Pack using 4pcs M2x6mm Screws.
(Apply little amount of Thread Locker to the screws
when installing metal parts.)
Step 4.
Secure the Servo wire with a small tap for safety
operation.
