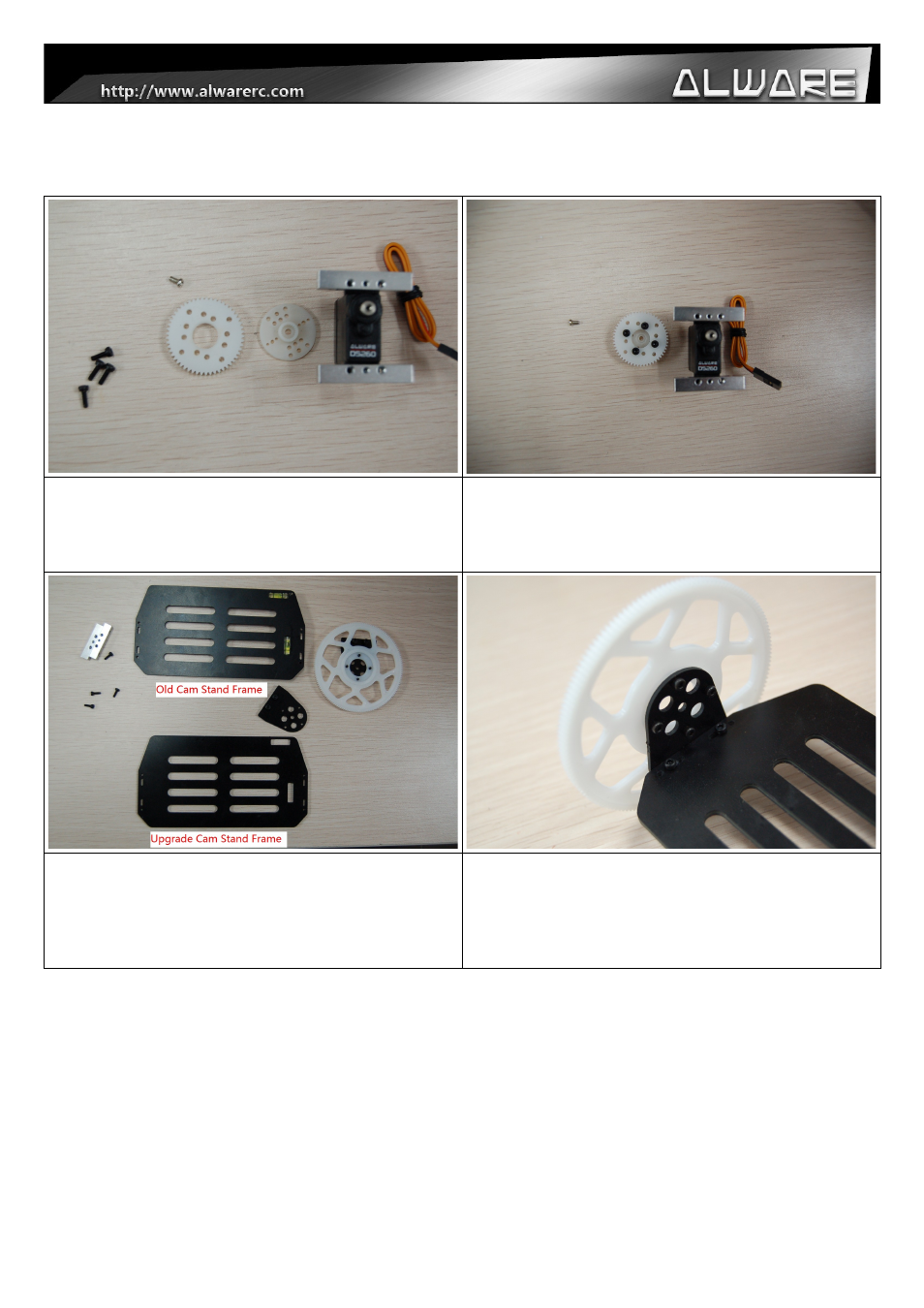

4.1 Assembly Steps – Installation of Upgrade Stand
Step 1.
Prepare the Tilt Servo, 1pcs Servo Horn, 1pcs
M0.5 Servo Horn Gear and 4pcs M2x6mm
Screws. Step 2.
Install the M0.5 Servo Horn Gear onto the Servo
Horn using 4pcs M2x6mm Hex Cap Screws.
Step 3.
Unistall the old Can Stand Frame Assemnly and
replace with the Upgrade Cam Stand Frame. Step 4.
Install the new M0.5 150T Main Gear onto the
Side Rib of Cam Stand Frame. Follow the
installation direction of M0.5 150T Main Gear on
the photo.
