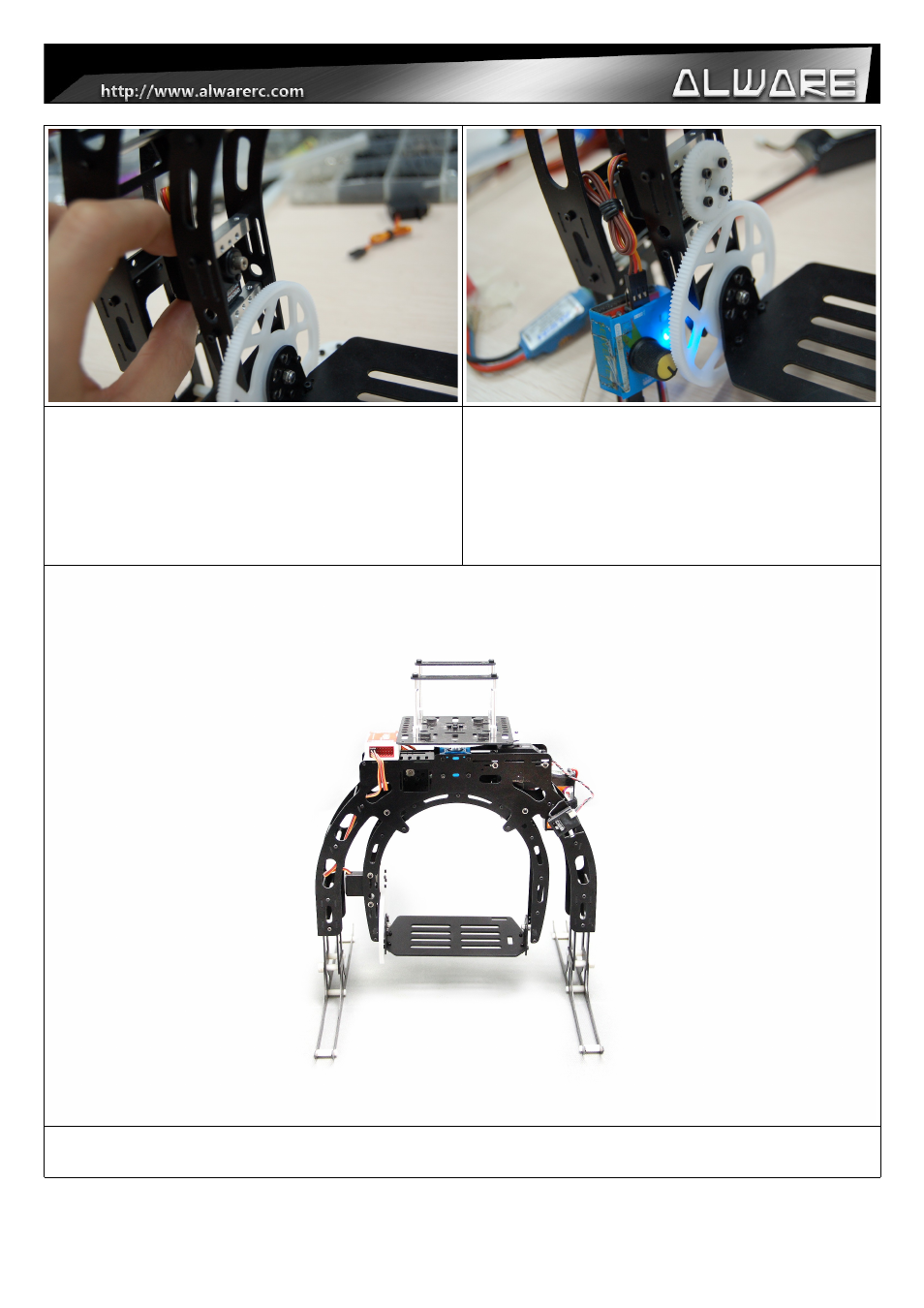

Step 9.
Install the Tilt Servo With Alu Square Rod
30.5mm to the Inner Circle Frame using
M2x6mm Hex Cap Screws. Make sure the
direction of servo is correct.
(Apply little amount of
Thread Locker to the screws when installing metal
parts.)
Step 10.
Install the servo horn with Upgrade Tilt Gear and
adjust the tightness of the gears by adjusting the
position of the Tilt Servo. Secure the servo and
test with a Servo Tester or Receiver to ensure the
movement angle of the Tilt Axis is fulfill your
needs.
Step 11.
Complete Assembly and the illustration of the mounting for the electronics.
