6) Remove the SODIMM cover plate and SODIMM as shown in Figure 2-15. Make sure to use
ESD precautions when handling the SODIMM.

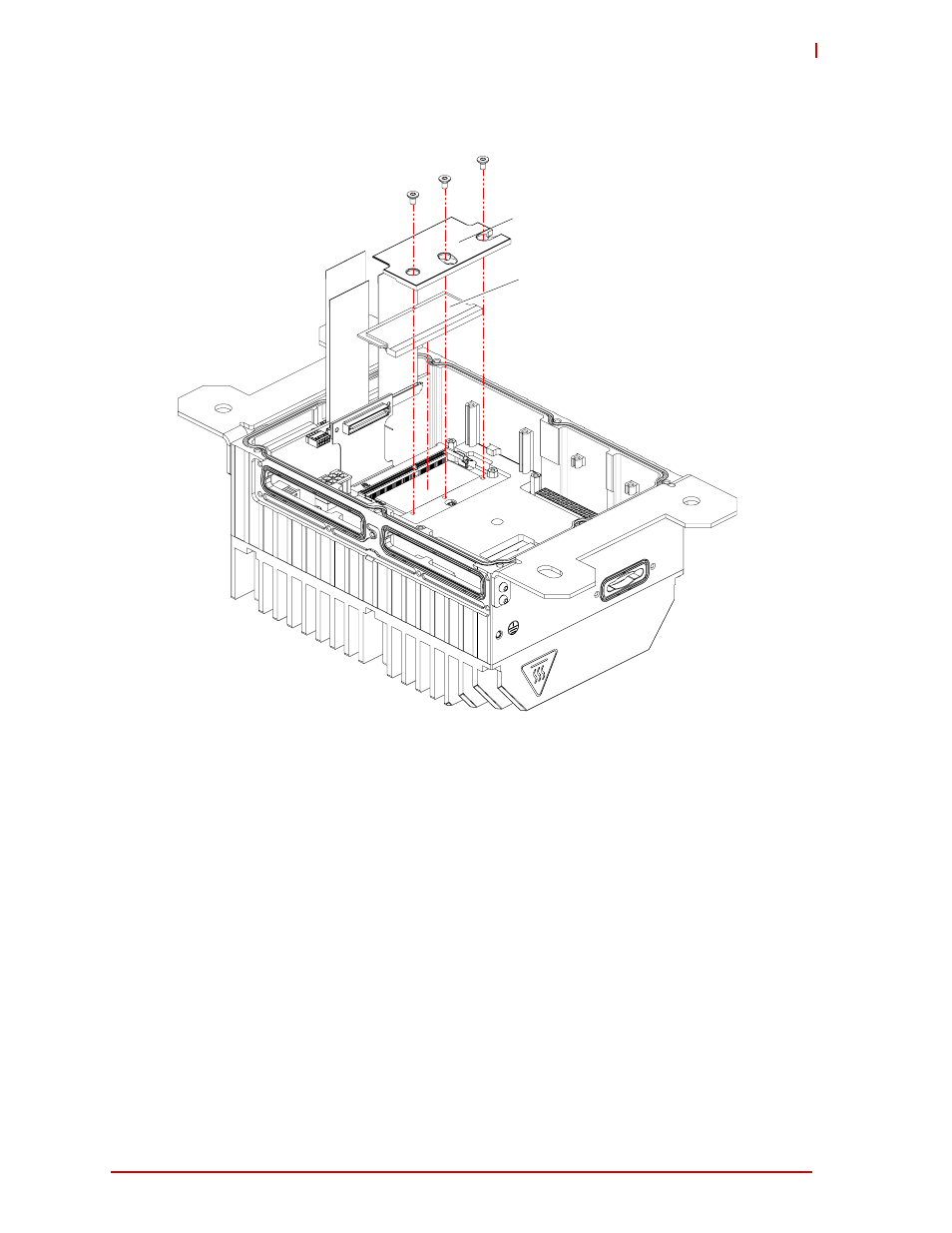

Figure 2-15: Exploded View of HPERC-IBR-M with SODIMM and Cover Plate
To install the SODIMM
1) Install the SODIMM into the socket as keyed.
2) Install the SODIMM cover plate.
SODIMM Cover Plate
SODIMM
