2.1.4 Replacing the SD (Secure Digital) Memory Card
The SD memory card slot is one of three externally accessible component slots on the enclo-
sure. The other externally accessible component slots are the SSD slots. The SD card allows
you to store data or install an operating system.
To remove the SD card from the enclosure side panel
1) Shut down the system and disconnect the enclosure from the power source as described
earlier in Shutting Down the HPERC-IBR-M.
2) Remove the screws mounting the SD card cover plate as shown in Figure 2-8.
3) Remove the SD card from its slot as shown. The card will automatically eject when pressed
inward.

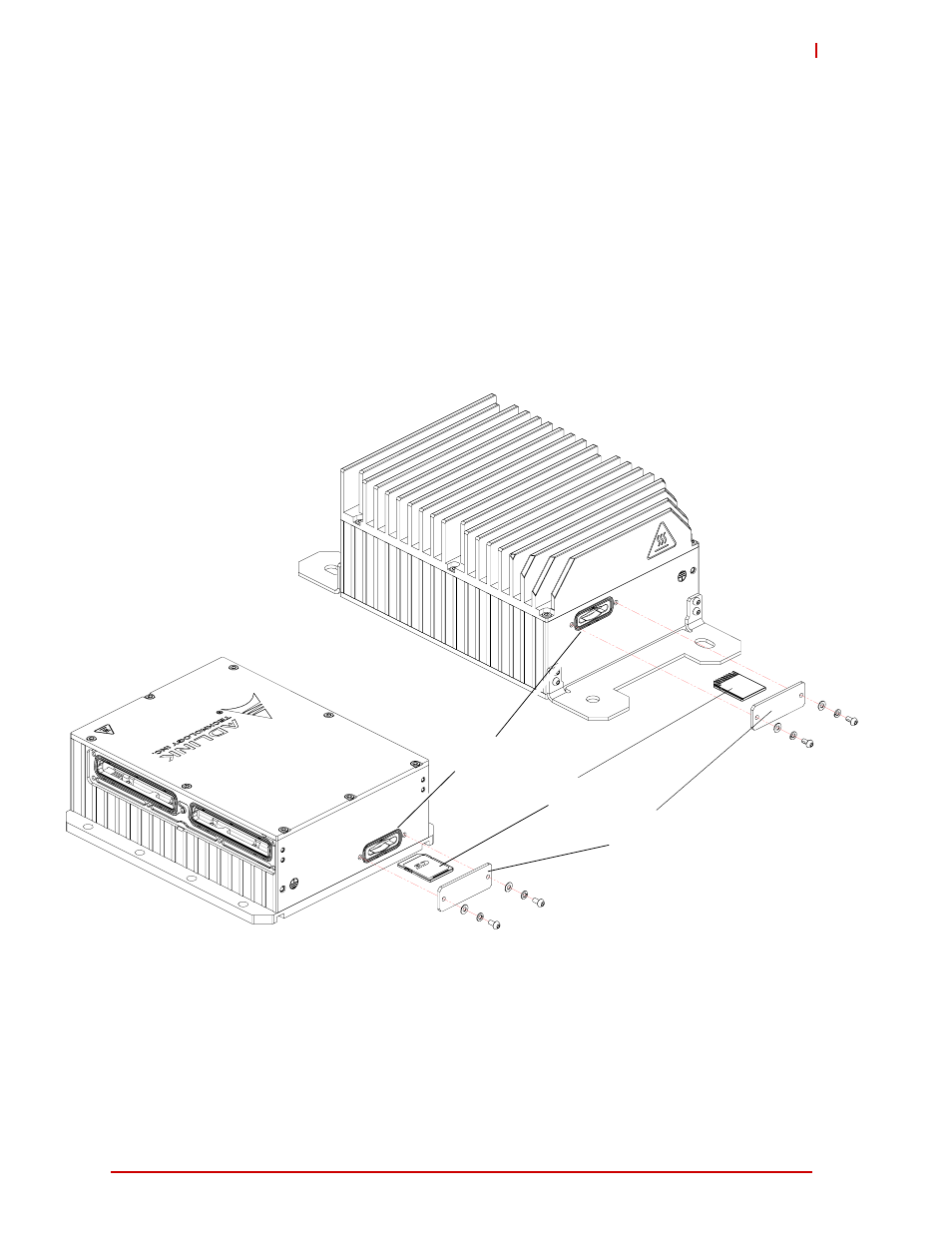

Figure 2-8: Exploded View of HPERC-IBR-M with SD Card
To install the SD card into the enclosure side panel
1) Insert the SD card into its slot as shown in Figure 2-8, ensuring to seat the card fully in its
socket.
2) Install the SD card cover plate using the screws provided. Ensure that the cover plate
properly aligns with the gasket on the slot.
SD Card
SD Card
Cover Plate
SD Card
Gasket
