24

Getting Started

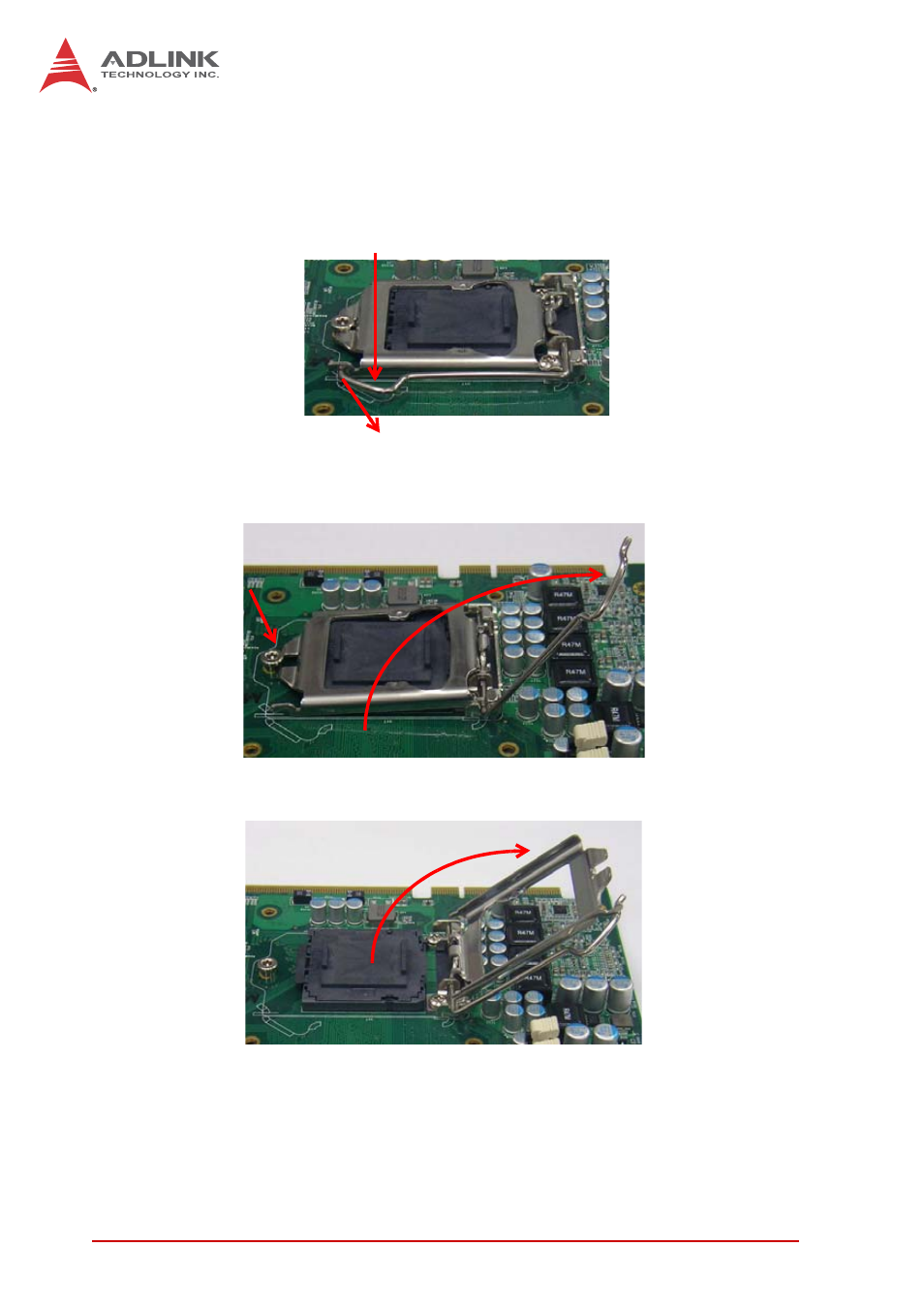

To install the CPU:

1. Press down on the locking arm (A), then push it away from

the socket to disengage it from the retention tab (B).

2. Raise the locking arm to unlock the load plate.

3. Lift the load plate to uncover the socket.

4. Remove the plastic protective cover from the socket.

Note the locations of the alignment keys (A) and Pin 1

A

B
