Introduction 13
NuPRO-E72

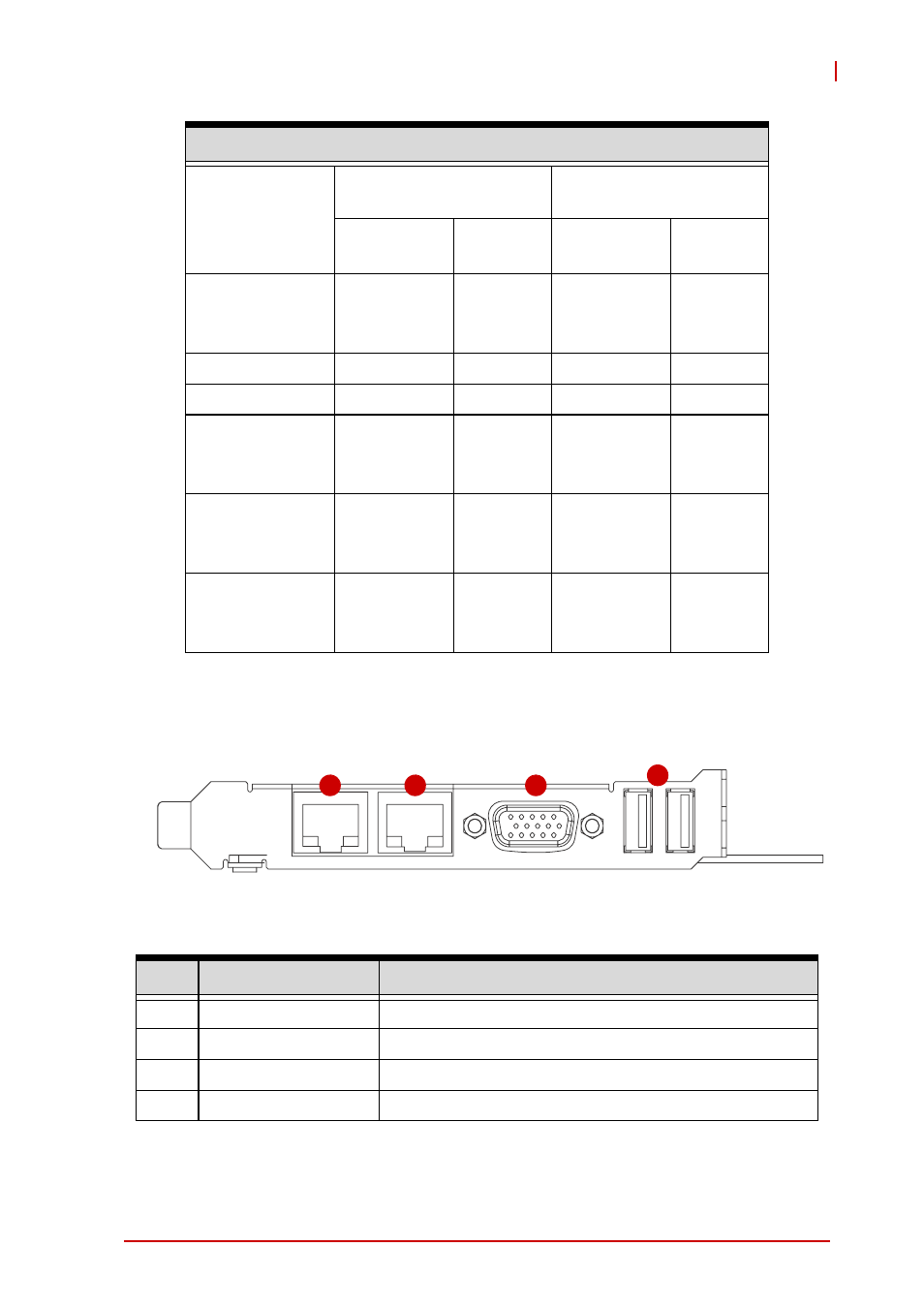

1.9 Rear I/O Panel
Figure 1-3: Rear I/O Panel
Item
BIOS EIST/C-state
Enabled BIOS EIST/C-state
Disabled
Current (A)/
Voltage (V) Power
(W) Current (A)/
Voltage (V) Power
(W)
S1
0.63/5.00
0.85/12.07
0.80/3.31
16.0575
0.61/5.00
0.85/12.07
0.80/3.31
15.9575
S4 0.10/5.03 0.503 0.10/5.04 0.503
S5 0.05/4.96 0.248 0.06/4.96 0.2976
Windows 7
(Idle)
0.73/5.00
0.59/12.11
0.79/3.31
13.4098
0.72/5.02
0.59/12.01
0.81/3.30
13.3589
Windows 7
(Typical)
1.12/4.99
1.90/12.07
0.80/3.30
31.1618
1.07/5.02
1.75/12.01
0.40/3.30
27.7089
Windows 7
(Max loading)
0.81/5.00
3.62/12.02
0.80/3.30
50.2024
0.78/5.00
3.48/12.02
0.81/3.30
48.4026
Connector Description
1 LAN1 port (RJ-45) Gigabit Ethernet (supports Intel® AMT)
2 LAN2 port (RJ-45) Gigabit Ethernet
3 VGA port DB-15 connector for CRT or LCD monitor
4 USB 3.0 ports SuperSpeed USB 3.0 ports
System Configurations
1 2 3
4
